Brembo OE

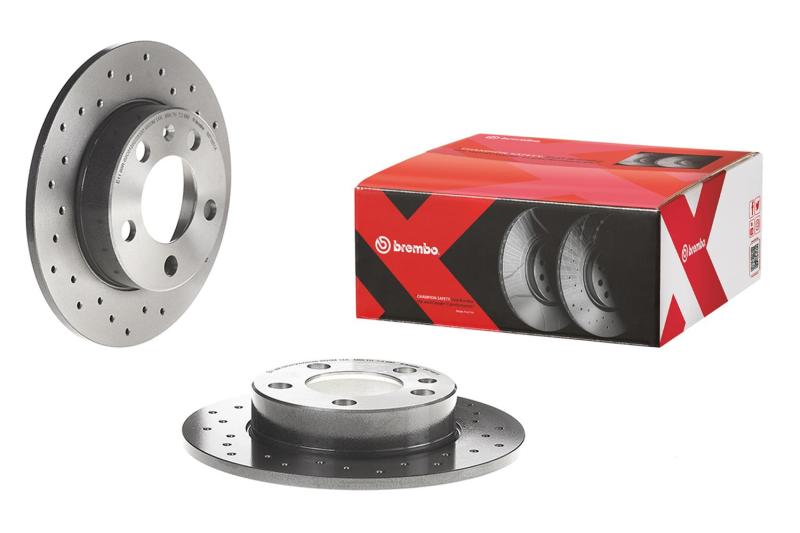

Brembo 09.9772.1X Xtra Drilled Vented Front Rotor 312mm for Audi A3/VW GTI Jetta

$157.95
$157.95
Shipping calculated at checkout.

In Stock: 12

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns
contact us about this item

Product Specification:

SKU:BRE09.9772.1X

MPN: 09.9772.1X

UPC: 8020584212677

Weight: 19.9 lb

Inventory: 12

Type: Brake Rotors - Drilled

Vehicle Fitment

  • 2006-2013 Audi A3 (FWD, All Engines with 312mm Front Disc)
  • 2006-2013 Audi A3 Quattro (AWD, All Engines with 312mm Front Disc)
  • 2015-2020 Audi A3 (FWD, All Engines with 312mm Front Disc)
  • 2015-2020 Audi A3 Quattro (AWD, All Engines with 312mm Front Disc)
  • 2022-2023 Audi A3 (FWD, All Engines with 312mm Front Disc)
  • 2022-2023 Audi A3 Quattro (AWD, All Engines with 312mm Front Disc)
  • 2016-2018 Audi A3 Sportback e-tron (AWD, 1.4L PHEV)
  • 2015-2023 Audi Q3 (FWD/AWD, All Engines)
  • 2015-2018 Audi Q3 Quattro (AWD, All Engines)
  • 2015-2020 Audi S3 (AWD, 2.0L Turbo I4)
  • 2022-2023 Audi S3 (AWD, 2.0L Turbo I4)
  • 2008-2009 Audi TT (FWD, 2.0L Turbo I4)
  • 2008-2023 Audi TT Quattro (AWD, 2.0L Turbo I4)
  • 2009-2023 Audi TTS Quattro (AWD, 2.0L Turbo I4)
  • 2012-2013 Audi TT RS Quattro (AWD, 2.5L Turbo I5)
  • 2012-2019 Volkswagen Beetle (FWD, All Engines with 312mm Front Disc)
  • 2009-2017 Volkswagen CC (FWD/AWD, All Engines with 312mm Front Disc)
  • 2009-2010 Volkswagen Passat CC (FWD, All Engines)
  • 2007-2016 Volkswagen Eos (FWD, All Engines)
  • 2017-2021 Volkswagen Golf (FWD, All Engines with 312mm Front Disc)
  • 2017-2019 Volkswagen Golf Alltrack (AWD, 1.8L Turbo I4)
  • 2015-2019 Volkswagen Golf SportWagen (FWD/AWD, All Engines)
  • 2012-2013 Volkswagen Golf R (AWD, 2.0L Turbo I4)
  • 2015-2019 Volkswagen Golf R (AWD, 2.0L Turbo I4)
  • 2022-2023 Volkswagen Golf R (AWD, 2.0L Turbo I4)
  • 2006-2023 Volkswagen GTI (FWD, 2.0L Turbo I4)
  • 2006-2021 Volkswagen Jetta (FWD, All Engines with 312mm Front Disc)
  • 2007-2009 Volkswagen Jetta City (FWD, All Engines)
  • 2006-2010 Volkswagen Passat (FWD/AWD, All Engines with 312mm Front Disc)
  • 2021-2022 Volkswagen Passat (FWD, All Engines)
  • 2006-2009 Volkswagen Rabbit (FWD, All Engines)
  • 2008 Volkswagen R32 (AWD, 3.2L VR6)
  • 2009-2018 Volkswagen Tiguan (FWD/AWD, All Engines with 312mm Front Disc)
  • 2017-2018 Volkswagen Tiguan Limited (FWD/AWD, All Engines)

Fitment Notes

  • Fits only vehicles equipped with 312mm front brake disc. Verify rotor diameter before ordering - some trims within the same model year use a different disc size.
  • Multiple brake package configurations may exist for select models. VIN verification is strongly recommended prior to purchase.
  • Sold individually - one (1) rotor per unit. Two rotors required for a complete front axle replacement.

Features

  • Xtra cross-drilled surface pattern improves cooling airflow and enhances brake bite in the initial stages of braking
  • High-carbon cast iron construction delivers superior thermal stability, reduced noise, and minimized vibration
  • Solvent-free UV coating protects the full rotor surface, including internal venting chambers, against corrosion right out of the box
  • Vented disc design promotes continuous heat dissipation to resist fade during demanding driving conditions
  • Drilled holes allow rapid evacuation of heat, gases, and brake dust from the pad-to-rotor contact surface
  • Intelligent hub marking displays part number and minimum discard thickness for easy maintenance reference
  • Engineered as a direct OEM replacement - meets or exceeds factory specifications for fit, function, and performance

Specifications

  • Position: Front
  • Rotor Type: Vented, Cross-Drilled (Xtra)
  • Outside Diameter: 12.28 in (312 mm)
  • Nominal Thickness: 25 mm (0.98 in)
  • Discard Thickness: 22.8 mm (0.90 in)
  • Overall Height: 50 mm (1.97 in)
  • Center Bore Diameter: 65 mm (2.56 in)
  • Lug Hole Quantity: 5
  • Material: High-Carbon Cast Iron
  • Construction: Composite
  • Coating: UV-Coated (Solvent-Free)
  • ABS Tone Ring: Not Included
  • Weight: 8.6 lbs

Included Components

  • 1x Brembo Xtra Cross-Drilled Front Brake Rotor (09.9772.1X)
  • 1x Rotor Fixing Screw Kit (all necessary hardware for installation)

Product Description

The Brembo 09.9772.1X is a front Xtra cross-drilled brake rotor engineered for Audi and Volkswagen platforms sharing the MQB and PQ35/PQ46 chassis architectures. The cross-drilled holes on the braking surface accelerate heat evacuation and gas expulsion, improving initial bite and fade resistance during spirited driving or repeated hard stops. Built from high-carbon cast iron, the rotor is inherently more resistant to thermal cracking and distortion than standard-grade iron rotors, and the solvent-free UV coating shields every surface - including the internal vents - from corrosion before and after installation.

Designed as a direct OEM replacement, the 09.9772.1X installs without modification using the included fixing screw kit and matches the factory 312mm front disc specification. For best results, Brembo recommends replacing rotors and brake pads together, pairing this rotor with Brembo NAO/Ceramic or Low-Met brake pad formulations to maximize stopping performance and pad-to-rotor compatibility. This rotor is sold individually; two units are required for a complete front axle service.
