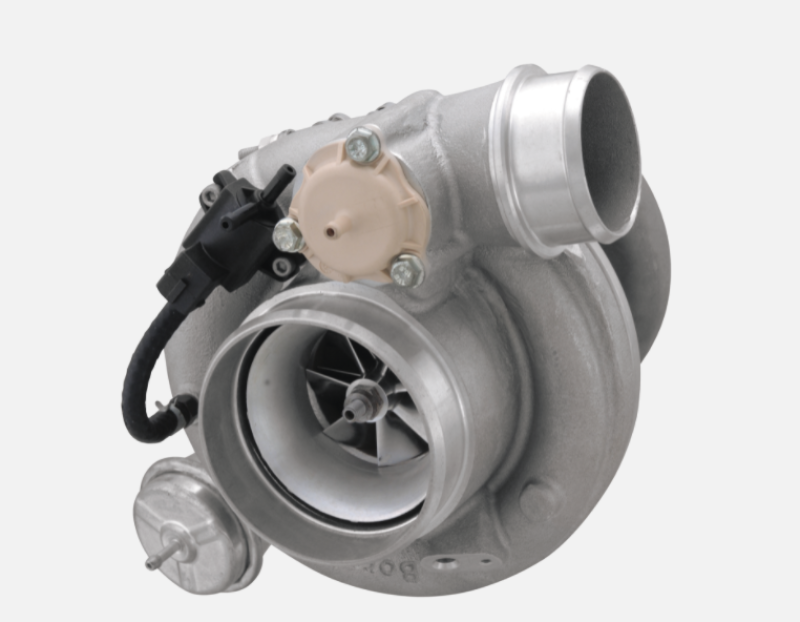

BorgWarner 12807100005 EFR 9280 Super-Core 73.7/91 80mm Gamma-Ti Universal

Vehicle Fitment

• Universal (super-core; fits various custom turbo applications)

Features

• Gamma-Ti turbine wheel for reduced inertia and improved spool
• Forged-milled 73.7 mm compressor inducer with extended tip technology
• Compressor cover pre-tapped for speed sensor and boost reference port
• Dual ceramic ball bearing assembly with metal cage for increased durability
• Compressor recirculation valve (CRV) for enhanced compressor surge control
• Boost control solenoid valve (BCSV) for precise boost control
• Compressor cover with provisions for optional SX-E compressor housing upgrade
• Compatible with a wide range of turbine housings for adaptability

Specifications

• Compressor inducer: 73.7 mm (2.90")
• Compressor exducer: 91 mm (3.58")
• Turbine wheel: inducer 80 mm, exducer 80 mm
• Series: EFR 9280
• Bearing type: Dual ceramic ball bearing assembly with metal cage
• Weight flow: approximately 110 lbs/min (~1,100 flywheel HP)
• Inlet: 4" V-Band / Outlet: 2.5" V-Band
• Note: turbine housing, actuator, and V-band clamp not included

Included Components

• 1x compressor cover with cartridge assembly
• 1x bearing housing assembly (shaft, bearings, thrust system)
• Mounting hardware: clamp plates, cap screws, mounting gaskets

Product Description

The BorgWarner 12807100005 EFR 9280 Super-Core is a high-performance turbo core built for custom and high-boost applications. Featuring a forged-milled compressor wheel with a 73.7 mm inducer and 91 mm exducer, paired with a robust turbine wheel measuring 80 mm in both inducer and exducer, this assembly delivers rapid spool and exceptional flow. The integrated dual ceramic ball bearing assembly ensures reliability during sustained high-pressure operation, and the pre-tapped compressor cover simplifies sensor and boost line integration.

As a super-core unit, the 12807100005 provides unmatched flexibility - builders can select turbine housings tailored to their setup requirements. The kit includes all mounting hardware, though turbine housing, actuator, and V-band clamp are not provided and must be selected separately. Ideal for both gasoline and diesel performance engines, it supports approximately 1,100 HP (flywheel) when configured correctly. Trust in BorgWarner's proven EFR platform for your next serious build.
