Baja Designs 5878012 Squadron-R Sport Black LED Spot Round Light Pod Pair

Vehicle Fitment

• Universal - Fits Trucks, Jeeps, SUVs, UTVs, ATVs, and Off-Road Vehicles

Fitment Notes

• Universal mount design; vehicle-specific mounting brackets may be required for certain applications
• Included wiring harness supports up to 2 lights maximum; not compatible with more than 2 pods on a single harness
• Round housing (3.5" bezel) - performance-identical to the standard Squadron Sport (557801) but in a round form factor
• Spot pattern designed for use alongside Wide Cornering or Driving/Combo lights for complete trail coverage
• Not E-approved; verify local regulations before on-road use

Features

• Spot beam pattern (9°) delivers a long, focused beam for trail and distance illumination in Lighting Zones 4 & 5
• 3.5" round bezel provides a classic, clean aesthetic that integrates well with circular mounting cutouts and factory-style openings
• Each pod outputs 3,150 lumens using 4 Cree LEDs at 26W - 6,300 lumens total for the pair
• Includes wiring harness with on/off switch and relay for a complete, ready-to-install kit
• ClearView® optics deliver precise, focused light output with minimal scatter
• MoistureBlock™ system provides waterproof, rain-proof, and submersible protection (IP69K)
• CopperDrive® technology drives LEDs at 100% rated power for consistent brightness
• uService® design allows field replacement of lenses and optics without full unit swap

Specifications

• Lumens: 3,150 per light / 6,300 total (4 Cree LEDs per light)
• Wattage / Amps: 26W / 2.0A per light
• Color Temperature: 5,000K Daylight
• Beam Pattern: Spot (9°)
• Lighting Zones: 4 & 5
• ELS Score: 112° / 5.3 / 229' / 1973 per light
• Lens Color: Clear
• Housing Color: Black
• Housing Style: Round (Squadron-R)
• Dimensions (per light): 3.50" W x 2.77" H x 3.50" D
• Weight: 12 oz per light
• LED Life Expectancy: 49,930 hours
• Front Lens: Hard Coated Polycarbonate (Clear)
• Housing: Powder Coated Cast Aluminum (Black)
• Bezel: Billet Machined Aluminum (3.5" Round)
• Hardware & Bracket: Stainless Steel
• Waterproof Rating: IP69K (Submersible to 9 ft)
• Impact Rating: IK10 Compliant
• Built-In Overvoltage Protection: Yes
• Wiring Harness: 2-light max, includes on/off switch and relay

Included Components

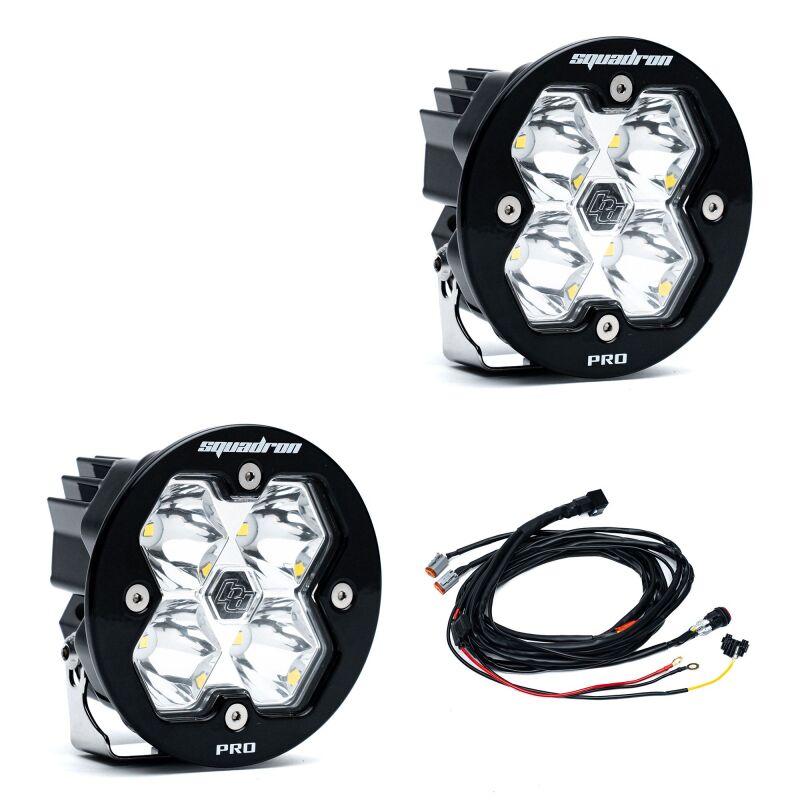

• 2x Squadron-R Sport LED Light Pods (Black Housing, Clear Lens, Spot Pattern, Round Bezel)
• 2x Stainless Steel Mounting Brackets
• 1x Wiring Harness (2-light max, with on/off switch and relay)

Product Description

The Baja Designs Squadron-R Sport 5878012 delivers the same proven performance as the standard Squadron Sport in a round housing form factor. The 3.5" round billet machined aluminum bezel gives these pods a clean, classic look that pairs naturally with circular mounting cutouts, bumper fog light openings, and builds where a square pod doesn't suit the aesthetic. Optically, the 9° Spot beam pattern is unchanged - delivering 3,150 lumens of focused, long-distance light per pod in Lighting Zones 4 and 5, for a combined 6,300 lumens across the pair.

The included wiring harness supports up to 2 lights and comes with a relay and on/off switch for a straightforward, plug-and-play installation. Each pod is built to full Baja Designs standards - IP69K waterproof rated, IK10 impact compliant, and MIL-STD-810G certified. The powder coated aluminum housing, billet machined bezel, and stainless steel hardware provide reliable long-term durability. uService® serviceability and a Limited Lifetime Warranty complete this ready-to-run round Spot pair kit.
