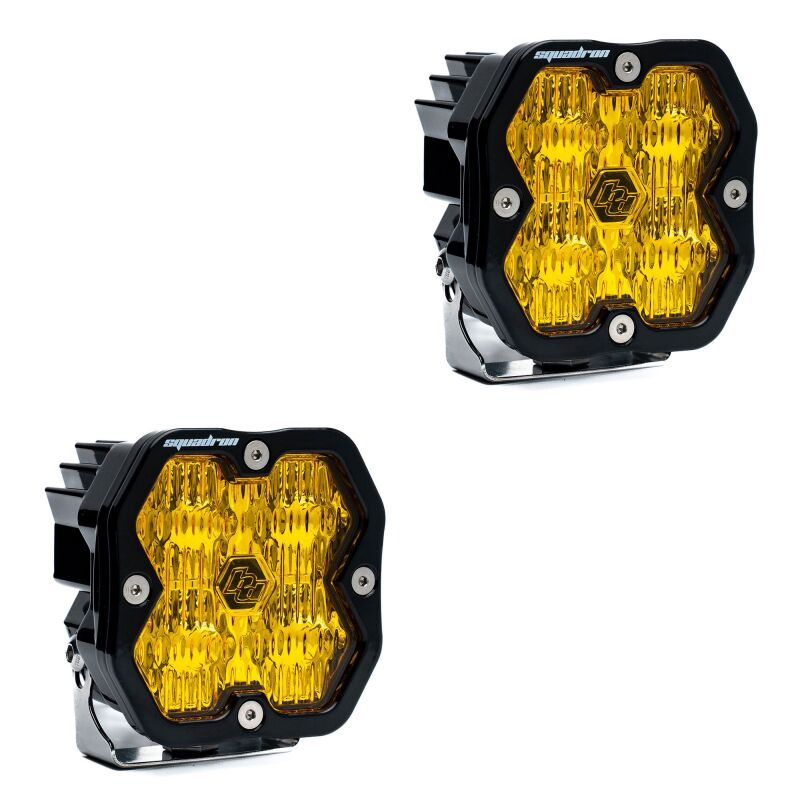

Baja Designs 5578152NH Squadron 2.0 Sport Wide Cornering Amber Pair Universal

Vehicle Fitment

• Universal - Auxiliary lighting applications for trucks, SUVs, Jeeps, UTVs, off-road vehicles, and custom installations

Fitment Notes

• Universal auxiliary lighting product; no vehicle-specific year, make, model, engine, trim, or drivetrain fitment applies.
• No wiring harness is included with this no-harness configuration.
• Vehicle-specific mounting provisions may be required depending on the installation application.

Features

• Squadron 2.0 Sport LED light pod pair with Wide Cornering beam pattern
• Baja Amber lenses optimized for auxiliary cornering illumination
• Produces 3,200 raw lumens per light
• 30W output with approximately 2.2A current draw at 13.8V per light
• Next-generation optics provide wider coverage with controlled light spill
• 9-color selectable backlight for customizable vehicle appearance
• Redesigned mounting bracket provides increased vertical adjustability for precise aiming
• Rugged 4-pin Deutsch-style connector enhances wiring durability
• Clip-in reflector design supports easier lens and optic servicing
• Redesigned gasket improves sealing and long-term environmental protection
• uService design allows serviceable lenses and optics
• Designed for demanding off-road and auxiliary lighting applications

Specifications

• Part Number: 5578152NH
• Product: Squadron 2.0 Sport LED Light Pod Pair
• Beam Pattern: Wide Cornering
• Lens Color: Baja Amber
• Light Quantity: 2x
• Raw Output: 3,200 lumens per light
• Power Draw: 30W / 2.2A at 13.8V per light
• Operating White-Light Voltage: 10-36V
• Operating Backlight Voltage: 11-14V
• Ingress Protection: IP69K
• Backlight: 9 selectable colors
• Connector: Deutsch-style 4-pin
• Light Dimensions: 3.32 x 3.29 x 2.84 inches per light
• Housing: Gloss-black aluminum

Included Components

• 2x Squadron 2.0 Sport LED Light Pods
• 2x Mounting Brackets
• All necessary mounting hardware

Product Description

The Baja Designs 5578152NH Squadron 2.0 Sport is a pair of compact LED auxiliary lights configured with Baja Amber lenses and a Wide Cornering beam pattern. Each pod produces 3,200 raw lumens at 30 watts, while the redesigned optics provide broad illumination designed to improve visibility around corners and across the surrounding trail or driving environment.

The Squadron 2.0 Sport features a gloss-black aluminum housing, rugged 4-pin Deutsch-style connector, IP69K protection, improved sealing, and an adjustable mounting bracket for precise aiming. Its integrated nine-color selectable backlight provides additional customization. This 5578152NH configuration is supplied without a wiring harness, making it suitable for installations where an existing compatible harness or separately purchased Squadron 2.0 wiring solution will be used.
