Baja Designs 440080 Squadron 2.0 Pro Fog Pocket Kit 1999-2010 Ford F-250/F-350

Vehicle Fitment

• 1999-2010 Ford F-250 Super Duty (XL, XLT, Lariat)
• 2004-2010 Ford F-250 Super Duty (King Ranch, Harley-Davidson Edition)
• 2008-2009 Ford F-250 Super Duty (FX4)
• 2009-2010 Ford F-250 Super Duty (Cabela's)
• 1999-2010 Ford F-350 Super Duty (XL, XLT, Lariat)
• 2003-2010 Ford F-350 Super Duty (King Ranch)
• 2004-2010 Ford F-350 Super Duty (Harley-Davidson Edition)
• 2008-2009 Ford F-350 Super Duty (FX4)
• 2009-2010 Ford F-350 Super Duty (Cabela's)

Fitment Notes

• Fits the factory fog pocket location on 1999-2010 Ford F-250 and F-350 Super Duty trucks across all three body generations covered by this bracket (10th, 11th, and 12th gen).
• Does not fit 2011+ Ford F-250/F-350 Super Duty - the 13th-gen body uses a different fog pocket bracket (see separate Baja Designs 11-16 Super Duty kits).
• Plug-and-play installation using factory fog switch - no cutting, drilling, or splicing required.
• Lens pattern for this SKU (440080) is Clear Wide Cornering. For the Squadron 2.0 Sport version of this kit, see SKU 440079.

Features

• Next-generation Squadron 2.0 Pro optics deliver 5,921 lumens per light at 65W - a 41% increase over the previous-generation Squadron Pro - with dramatically improved beam distance, wider coverage, and maximum off-road light output.
• Clear Wide Cornering lens illuminates Zones 1 and 2 with a 42-degree flattened horizontal beam - maximum brightness and peripheral spread for trail driving, cornering, fog, dust, rain, and snow.
• Plug-and-play installation using Ford-specific mounting brackets that bolt directly into the OEM fog pocket location, with adapter harnesses connecting to factory wiring for stock switch control.
• Integrated 9-color selectable RGBW backlight (red, green, blue, magenta, cyan, amber, yellow, pink, white) configurable through the included harness with color settings retained when lights are powered off.
• Updated uService® functionality: clip-in reflectors stay secure during lens swaps; redesigned gasket provides superior long-term sealing and protection from the elements.
• 4-pin Deutsch-style connectors standard on all wire harnesses - weatherproof, vibration-resistant, and built for work truck and off-road environments.
• ClearView® optics with redesigned reflectors and lens patterns deliver more usable illumination with reduced driver fatigue using Baja Designs' exclusive 5000K daylight color temperature LEDs.
• CopperDrive® LED management system drives all LEDs at 100% rated power continuously for maximum output and long-term reliability.
• MoistureBlock® IP69K waterproof rating - submersible to 9 ft and pressure washable; exceeds MIL-STD810G mil-spec durability and IK10 mechanical impact standards.
• Redesigned universal mounting bracket allows for increased vertical light adjustment for precise beam aim after installation.

Specifications

• Lumens (per light): 5,921
• Wattage/Amps (per light): 65W / 4.7A
• Beam Pattern: Wide Cornering (Clear)
• Input Voltage: 12-32V DC
• LED Life Expectancy: 49,930 hours
• Housing: Hard Anodized Powder Coated Cast Aluminum
• Lens: Hard Coated Polycarbonate (Clear)
• Connector: 4-Pin Deutsch-Style
• Water Resistance: IP69K (Waterproof to 9 ft, Pressure Washable)
• Impact Rating: IK10 Compliant
• Durability: Exceeds MIL-STD810G
• Mounting Position: Factory Fog Pocket (Left and Right)
• Color Temperature: 5000K

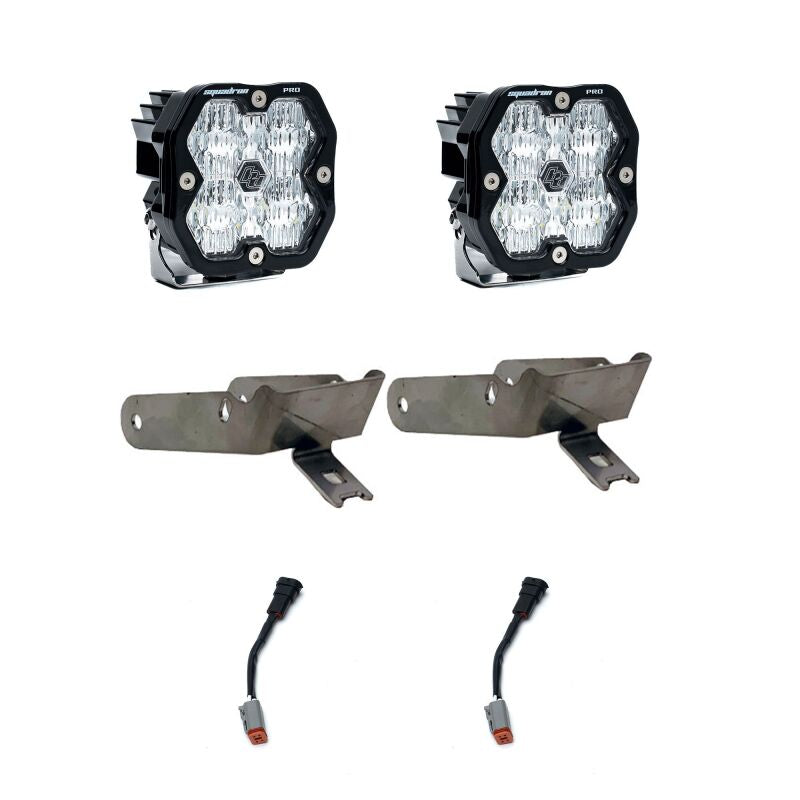

Included Components

• 2x Squadron 2.0 Pro LED Lights (Clear Wide Cornering)
• 2x Ford-Specific Mounting Brackets
• 2x Plug-and-Play Adapter Harnesses (Factory Switch Compatible)
• 1x Backlight Add-On Harness
• 1x Mounting Hardware Kit

Product Description

The Baja Designs 440080 Squadron 2.0 Pro Fog Pocket Light Kit is the maximum-output upgrade for the 1999-2010 Ford F-250 and F-350 Super Duty, fitting all trims - XL, XLT, Lariat, King Ranch, Harley-Davidson Edition, FX4, and Cabela's - across all three body generations covered by this bracket platform. The Ford-specific mounting brackets bolt directly into the factory fog pocket without cutting, drilling, or modification. The included adapter harnesses connect plug-and-play to the OEM wiring so the lights are controlled through the stock fog switch, delivering a fully factory-integrated installation with substantially elevated output.

At the heart of this kit are two Squadron 2.0 Pro LED lights producing 5,921 lumens each at 65W - a 41% performance increase over the previous-generation Squadron Pro, making this the highest-output fog pocket option available for this platform. The Clear Wide Cornering lens pattern delivers a 42-degree horizontal beam across Zones 1 and 2, maximizing peripheral illumination for trail driving, cornering, fog, dust, rain, and low-light conditions. The 5000K daylight color temperature provides the most natural light output available, reducing driver fatigue on long work or trail runs. New for the 2.0 generation: an integrated 9-color selectable RGBW backlight with settings saved between power cycles, improved uService® clip-in reflectors for fast and secure lens swaps, a redesigned gasket for long-term weatherproofing, and rugged 4-pin Deutsch-style connectors on all harnesses.

Both lights are built to Baja Designs' race-proven durability standards: hard anodized powder coated cast aluminum housing, hardcoated polycarbonate lens, stainless steel hardware, IP69K waterproofing (submersible to 9 ft and pressure washable), MIL-STD810G mil-spec durability certification, and IK10 mechanical impact compliance. CopperDrive® technology keeps all LEDs running at full rated power at all times. This kit uses the same 1999-2010 Super Duty fog pocket bracket as the Sport version (SKU 440079) and will not fit 2011 and newer F-250/F-350 models. Every Baja Designs kit is backed by a 30-Day Satisfaction Guarantee and a Lifetime Limited Warranty.
