Old Man Emu CS033RB Rear 3" Lift Leaf Spring for 84-01 Jeep Cherokee XJ 2.5/4.0L

Vehicle Fitment

• 1984-2001 Jeep Cherokee XJ (2.5L I4 / 4.0L I6, 4WD)

Features

• Provides approximately 3" (76mm) of rear lift for enhanced ground clearance
• Medium load capacity suitable for vehicles with additional accessories or moderate cargo
• Draw-tapered and diamond-cut leaves distribute loads evenly, reducing stress
• Bolted leaf clamps allow installation of anti-squeak nylon liners
• Fully scragged to minimize the risk of sagging over time
• Load tested to ensure the spring meets the required specification
• Military wrap design offers added safety in case of main leaf failure
• Re-greasable nylon interleaf anti-friction pads reduce friction at leaf tips
• Flat axle seat area ensures a positive, safe axle mount and reduces spring stress
• Shot peened to reduce spring stress and increase spring life

Specifications

• Part Number: CS033RB
• Position: Rear
• Lift Height: Approximately 3" (76mm)
• Load Rating: Medium Load
• Number of Leaves: 5 + 1
• Spring Rate: 168 / 256 lbf/in
• Primary Free Camber: 243mm
• Eye Diameter: 62mm (Front) / 43.5mm (Rear)
• Stack Height: 43.5mm
• Weight: 22.4kg (49.4 lbs)
• Material: High-quality steel
• Finish: Black powder-coated
• Warranty: 3 years

Included Components

• One (1) Old Man Emu CS033RB rear leaf spring
• Pre-installed anti-friction pads and bolted clamps
• Installation instructions

Product Description

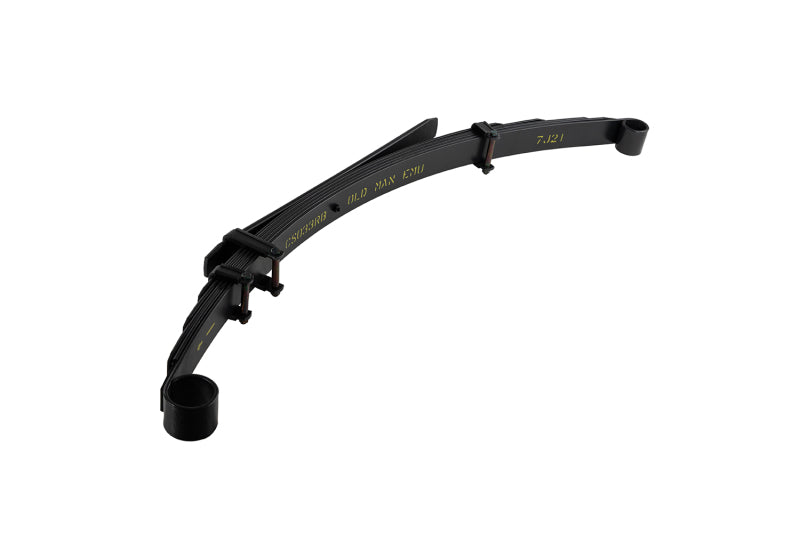

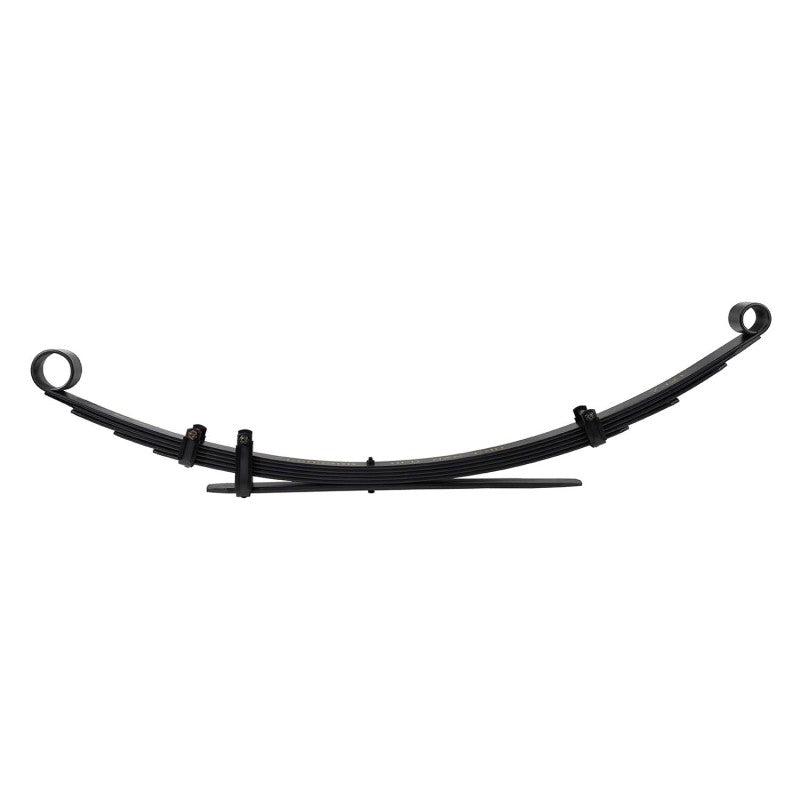

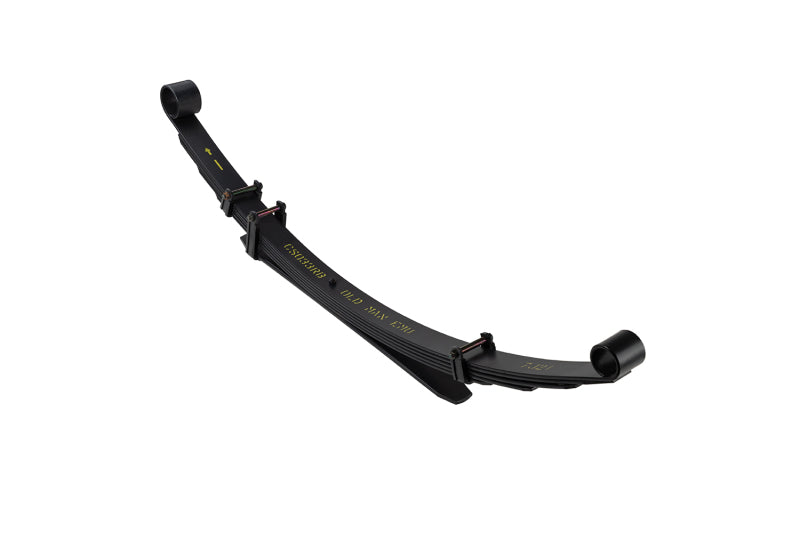

The Old Man Emu CS033RB Rear Leaf Spring is engineered to enhance the suspension performance of your 1984-2001 Jeep Cherokee XJ. Designed to provide approximately 3 inches (76mm) of lift, this leaf spring improves ground clearance and load-carrying capacity, making it ideal for both recreational off-roading and commercial use.

Constructed with high-quality steel and featuring a progressive spring rate of 168 / 256 lbf/in, the CS033RB offers a comfortable ride when unladen and additional support when carrying moderate loads. Its design includes draw-tapered and diamond-cut leaves, bolted clamps, and re-greasable anti-friction pads, contributing to its durability and longevity.

Whether you're navigating rugged terrains or hauling equipment, the Old Man Emu CS033RB Rear Leaf Spring delivers reliable performance and improved handling, making it a valuable upgrade for your Cherokee's suspension system.
