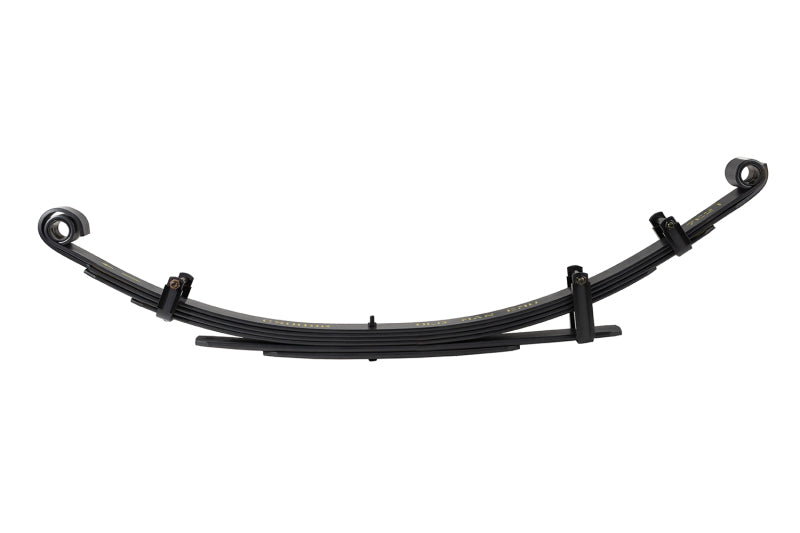

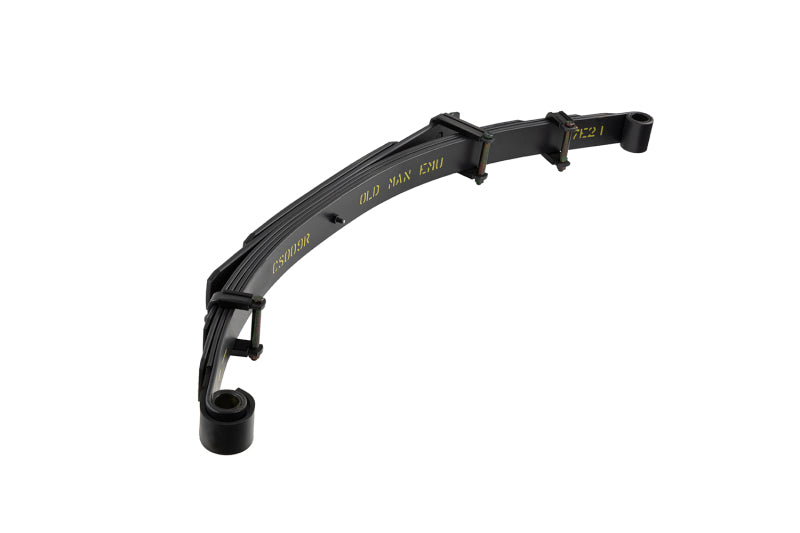

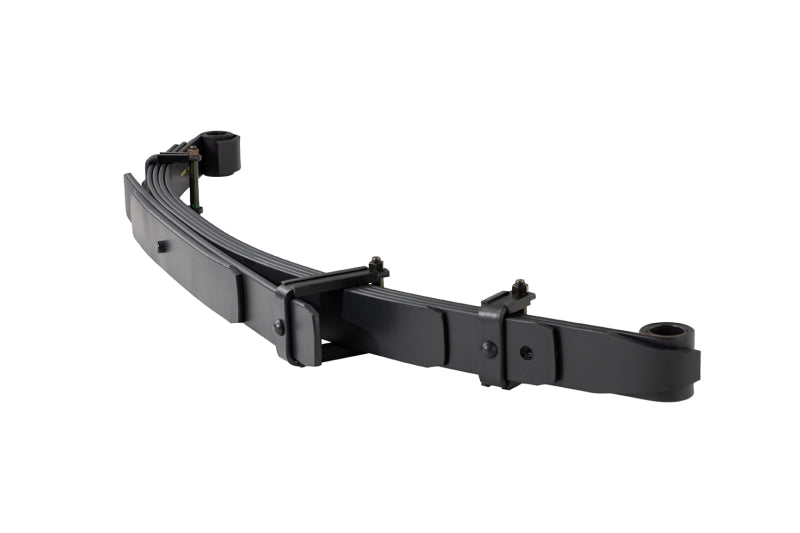

Old Man Emu CS009R 2" Rear Leaf Spring for 84-90 Toyota 4Runner/Pickup/Hilux

Vehicle Fitment

• 1979-1988 Toyota Pickup (all trims, 2.2L / 2.4L L4 Gas/Diesel, 2-door)
• 1979-1988 Toyota Hilux (all trims, Gas / Diesel, 2-door)
• 1984-1990 Toyota 4Runner (DLX / SR5, 2.4L L4 / 3.0L V6, 2-door and 4-door)

Fitment Notes

• Rear position only -- sold individually (order 2 for a complete set)
• 1985-1989 automatic 4Runner -- contact OME before ordering
• Companion bushing kit: OMESB6 (sold separately)
• Companion greasable shackle: OMEGS3 (sold separately)
• Pair with OME rear shocks for a fully integrated suspension system

Features

• ~2.0 in. rear lift -- medium/light load
• Dakar Series -- draw-tapered and diamond-cut leaves
• Micro-alloyed spring steel -- strength and durability
• Formed on computer-precision mandrels
• Double scragged -- reduces spring stress, enhances spring life
• Re-greasable nylon interleaf anti-friction pads
• Bolted leaf clamps -- allow installation of anti-squeak nylon liners
• Military wrap -- added safety
• Shot peened tension side -- doubles spring life
• Load tested to specification
• Black powder coat finish
• 36-month / 37,000-mile limited warranty

Specifications

• Part Number: CS009R
• Series: Dakar
• Position: Rear
• Lift: ~2.0 in.
• Load Rating: Medium / Light
• Required Bushing Kit: OMESB6 (sold separately)
• Required Sleeve: 181469 per spring (sold separately)
• Quantity: 1 (sold individually)

Included Components

• 1x OME Dakar rear leaf spring

Product Description

The Old Man Emu CS009R is a Dakar Series rear leaf spring for the 1979-1988 Toyota Pickup, 1979-1988 Toyota Hilux, and 1984-1990 Toyota 4Runner delivering approximately 2.0 inches of rear lift at medium/light load. Draw-tapered and diamond-cut leaves distribute load progressively for improved ride comfort and spring longevity. Double scragged construction and shot peening on the tension side resist sagging and extend spring life under demanding use.

Sold individually -- order two for a complete rear axle set. Bushing kit OMESB6 and sleeve 181469 required per spring, sold separately. 1985-1989 automatic 4Runner owners should contact OME before ordering. Backed by ARB's 36-month / 37,000-mile limited warranty.
