AMP Research 76247-01A PowerStep Plug-N-Play 2017-2019 GM 2500/3500HD Diesel

Vehicle Fitment

• 2017-2019 Chevrolet Silverado 2500HD - Double Cab and Crew Cab; Diesel (6.6L Duramax) ONLY (all trims)
• 2017-2019 Chevrolet Silverado 3500HD - Double Cab and Crew Cab; Diesel (6.6L Duramax) ONLY (all trims)
• 2017-2019 GMC Sierra 2500HD - Double Cab and Crew Cab; Diesel (6.6L Duramax) ONLY (all trims)
• 2017-2019 GMC Sierra 3500HD - Double Cab and Crew Cab; Diesel (6.6L Duramax) ONLY (all trims)

Fitment Notes

• Fits DIESEL (6.6L Duramax) models ONLY - does NOT fit 2017-2019 Silverado 2500HD/3500HD or Sierra 2500HD/3500HD equipped with a gasoline engine; a separate kit number covers gas-engine HD applications
• This kit was specifically engineered to accommodate the Diesel Exhaust Fluid (DEF) tank location on 2017-2019 GM Duramax HD trucks; the DEF tank occupies space along the frame rail on the passenger side that differs from gas-engine configurations and requires a kit designed around it
• Fits Double Cab and Crew Cab body styles - boards must be trimmed to fit on Double Cab models; Crew Cab models do not require board trimming
• Does NOT fit Regular Cab (single cab) configurations
• No drilling into the body or frame is required for installation; however, installation does require modification of the fender trim to route the wiring harness cleanly
• Connects via the vehicle's OBD-II diagnostic port using the included Plug-N-Play module - eliminates the need to remove door panels or access behind interior trim during installation
• If the OBD-II port needs to remain accessible for a scan tool or emissions device while the PowerStep is connected, the AMP Research Plug-N-Play Pass-Through Harness (PN 76404-01A) is required and sold separately

Features

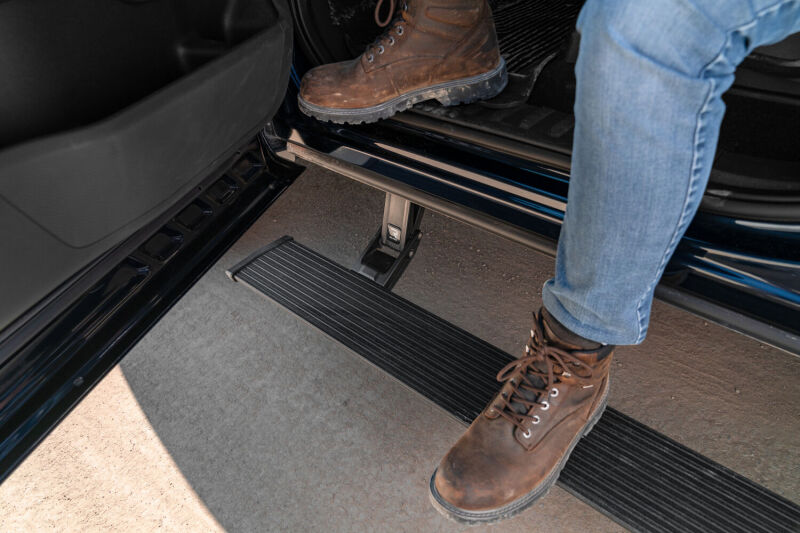

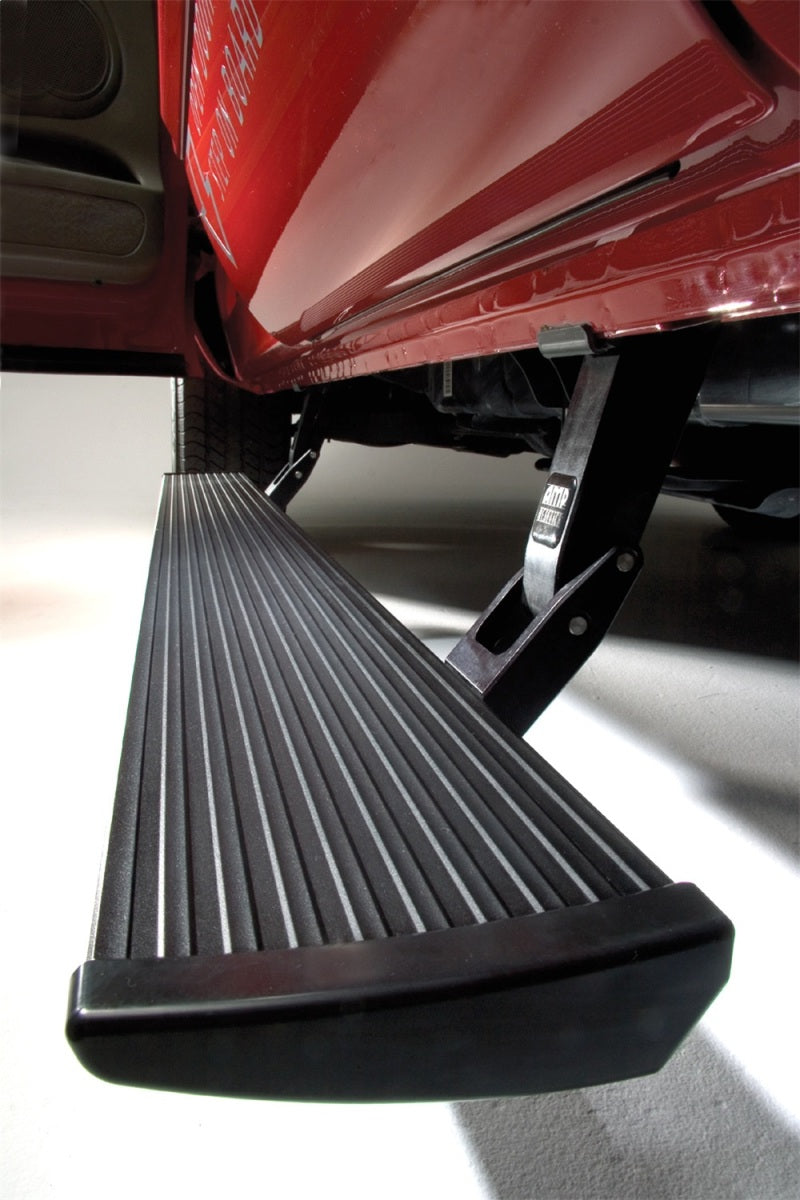

• Automatically deploys when any door is opened and retracts approximately 3 seconds after all doors close - drops significantly lower than traditional static running boards, positioning the step surface at an ergonomically correct height for easy entry and exit on the tall-riding GM HD platform

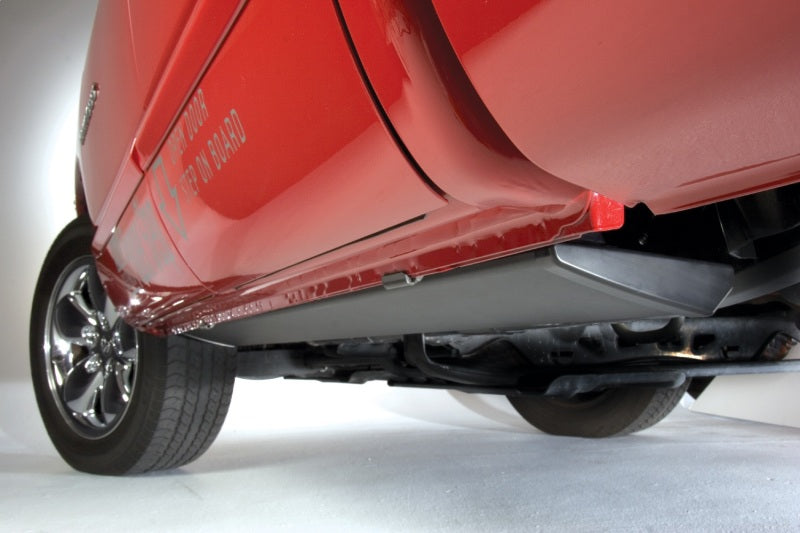

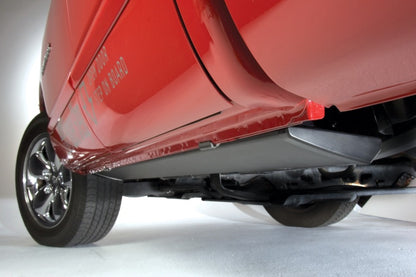

• When retracted, boards tuck completely under the rocker panel - preserving factory ground clearance, aerodynamic profile, and the clean look of the truck with no exposed hardware
• Plug-N-Play OBD-II installation simplifies wiring - the system connects to the vehicle's OBD-II diagnostic port under the dash, eliminating the need to splice into the door-ajar circuit or remove interior components
• Engineered specifically to work around the DEF tank on 2017-2019 Duramax HD applications - brackets and mounting hardware are designed to clear the tank and its associated plumbing without modification
• Corrosion-resistant die-cast aluminum alloy construction with military-grade PTFE coating and anodized black finish resists oxidation, abrasion, and UV degradation in all weather conditions
• Precision stainless steel pivot pins and maintenance-free self-lubricating bushings for smooth, reliable all-weather operation with no periodic lubrication required

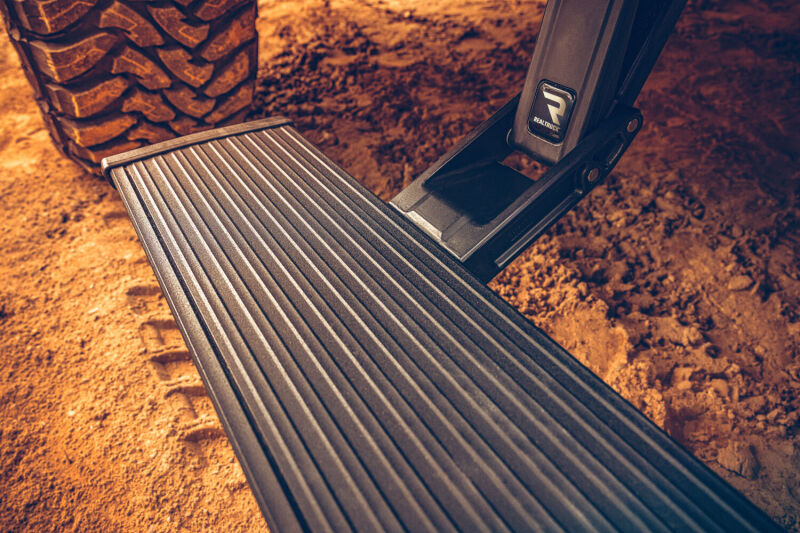

• Textured, non-slip 6-inch wide step surface provides full cab-length coverage for confident footing in all footwear and weather conditions

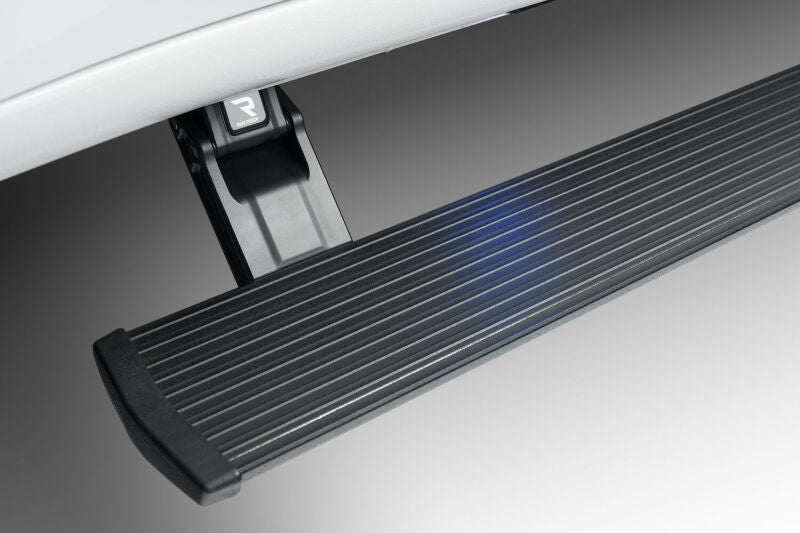

• Integrated low-profile LED courtesy lights illuminate the step surface and ground when steps are deployed; lights extinguish automatically when steps retract
• Anti-pinch safety technology monitors for resistance during step movement and stops the motor if an obstruction is detected
• 600 lb. load capacity per side
• American designed and engineered; backed by AMP Research's industry-leading 5-year / 60,000-mile limited warranty

Specifications

• Step Type: Single-motor Plug-N-Play power-retractable running board
• Step Width: 6 inches (textured non-slip surface)
• Step Length: Cab length
• Step Material: Die-cast and extruded aluminum alloy
• Step Finish: Textured black powder coat; anodized with military-grade PTFE coating
• Pivot Pins: Precision stainless steel
• Step Mount: Rocker panel / frame (vehicle-specific brackets included)
• Load Capacity: 600 lbs. per side
• Wiring Type: OBD-II Plug-N-Play (no door panel removal required)
• Drilling Required: No - fender trim modification required for wiring routing
• Board Trimming Required: Yes - Double Cab models only; Crew Cab does not require trimming
• Engine Requirement: Diesel (6.6L Duramax) ONLY - gas engines not compatible
• DEF Tank Compatible: Yes - brackets engineered specifically for Duramax DEF tank clearance
• Pass-Through Harness Required for OBD-II Access: Yes - PN 76404-01A (sold separately)
• Replacement Parts: 19-04384-91L (wiring harness), 19-04279-XTA (Xtreme controller), 75145-01A (step assembly), 80-03129-90 (motor), 19-03970-91 (OBD-II module), 76404-01A (pass-through harness), 20-03752-85 (step board)
• UPC: 815410013881
• Shipping Weight: 57 lbs.; Package: 88" L x 13" W x 8" H
• Warranty: 5-year / 60,000-mile limited

Included Components

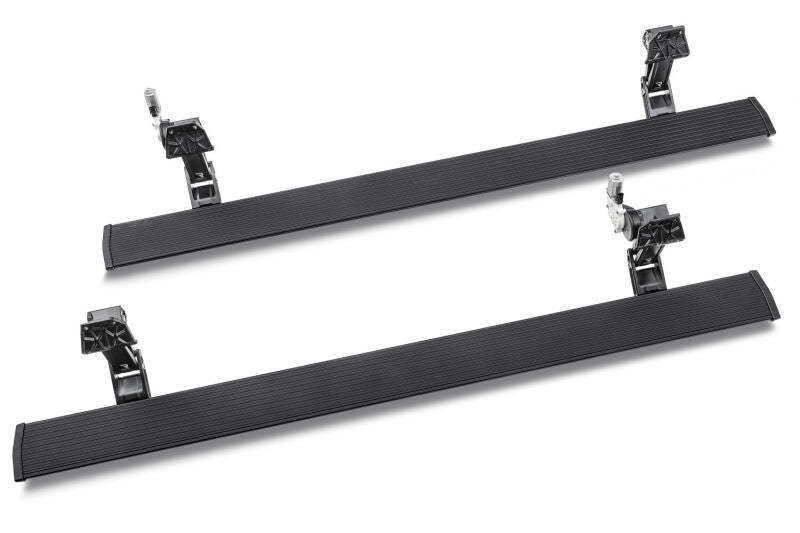

• 2x PowerStep running board assemblies (driver side and passenger side) with integrated LED lights and motors
• 4x Linkage arm assemblies (2 motor linkage, 2 idler linkage)
• 1x Set of vehicle-specific mounting brackets (DEF tank clearance design)
• 1x OBD-II Plug-N-Play module and wiring harness
• 1x Electronic controller
• 1x Complete hardware kit (nuts, bolts, and fasteners)
• 1x Vehicle-specific installation guide
• Note: Pass-Through Harness (76404-01A) for retaining OBD-II port access is NOT included - sold separately if needed

Product Description

The AMP Research 76247-01A PowerStep is a Plug-N-Play automatic electric running board kit designed specifically for 2017-2019 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD trucks equipped with the 6.6L Duramax diesel engine. This kit covers Double Cab and Crew Cab configurations on all trim levels and is engineered to work around the Diesel Exhaust Fluid (DEF) tank that is standard on all GM Duramax HD trucks beginning with the 2011 model year - a packaging constraint that requires a dedicated set of mounting brackets distinct from gas-engine HD applications and earlier diesel kits. Gas-engine Silverado/Sierra HD owners require a different kit number; this kit is not interchangeable.

The Plug-N-Play system connects to the truck's OBD-II diagnostic port under the dash, eliminating the need to splice into factory wiring or remove door panels for installation. The system reads door-open and door-closed signals through the OBD-II port and triggers automatic step deployment and retraction accordingly. One important note: because the Plug-N-Play module occupies the OBD-II port, a separate Pass-Through Harness (PN 76404-01A, sold separately) is required for anyone needing to continue using the OBD-II port for scan tools, DEF system monitoring, or emissions testing while the PowerStep is installed. Installation requires modification of the fender trim for wiring routing but does not require drilling into the body or frame. Boards must be trimmed on Double Cab applications; Crew Cab models do not require trimming.

The step boards are constructed from die-cast and extruded aluminum alloy with a military-grade PTFE coating and anodized black finish - the same proven construction used across the PowerStep line. Integrated LED courtesy lights activate with each deployment and shut off automatically when steps retract. The system supports 600 lbs. per side with anti-pinch safety technology built into the controller. The 76247-01A is backed by AMP Research's 5-year / 60,000-mile limited warranty.
