Air Lift 59106BT SlamAir Lowering Kit for 1988-1998 Chevy GMC C1500 2WD 5-6 in.

Vehicle Fitment

• 1988-1998 Chevrolet C1500 Regular Cab (2WD) - with 5-6 inch rear drop
• 1988-1998 Chevrolet C1500 Extended Cab (2WD) - with 5-6 inch rear drop
• 1988-1998 Chevrolet C1500 Crew Cab (2WD) - with 5-6 inch rear drop
• 1988-1998 GMC C1500 Sierra Regular Cab (2WD) - with 5-6 inch rear drop
• 1988-1998 GMC C1500 Sierra Extended Cab (2WD) - with 5-6 inch rear drop
• 1988-1998 GMC C1500 Sierra Crew Cab (2WD) - with 5-6 inch rear drop

Fitment Notes

• Fits vehicles with a 5-6 inch rear drop only - including trucks lowered with Bell Tech lowering kits (denoted by "BT" suffix), flipped axles, and notched frames
• Frame must be C-notched for proper fitment at the 5-6 inch drop level - non-notched frames are not compatible at this drop height
• 2WD applications only - does not fit 4WD (K1500) models
• Compatible with most aftermarket lowering leaf spring configurations at the 5-6 inch drop range
• An optional driver-controlled on-board compressor system can be added for on-the-fly rear height adjustment - not included
• Replacement air spring for this kit: PN 50203

Features

• Specifically engineered to restore load-carrying capacity and eliminate bottoming out on 1988-1998 Chevy/GMC C1500 2WD trucks lowered 5-6 inches - solving the #1 problem with heavily dropped trucks
• Supplements the lowered truck's leaf springs to provide a fully adjustable spring rate that accommodates variable load requirements and improves ride comfort at any drop height
• Air adjustable from 5 to 100 PSI - add air for a loaded or aggressive stance, or reduce pressure for a softer unloaded ride
• Compatible with Bell Tech lowering kits, flipped axle configurations, and C-notched frames - purpose-built for the custom and show truck market
• Exclusive installation alignment tool included to simplify spring positioning during install
• Quick-connecting, easy-to-use air fittings for simple inflation and deflation without special tools
• Ultra-high-strength nylon composite end caps - as strong as steel, significantly lighter, and fully corrosion-proof for long-term underbody durability
• Rugged rubber construction with durable components engineered for long, reliable service life even in a lowered, performance-oriented application
• When paired with a driver-controlled on-board compressor system, the rear can be raised on-the-fly to clear speed bumps, steep driveways, and other obstacles without manual adjustment
• Backed by Air Lift's limited lifetime warranty with no mileage restriction and 60-day ride satisfaction money-back guarantee

Specifications

• Position: Rear axle
• Application: Lowered trucks - 5 to 6 inch rear drop only
• Spring Type: Sleeve-style air helper spring (leaf spring supplemental)
• Load Leveling Capacity: Up to 2,000 lbs.
• Minimum Air Pressure: 5 PSI
• Maximum Air Pressure: 100 PSI
• End Cap Material: Ultra-high-strength nylon composite (corrosion-proof)
• Package Weight: 16.04 lbs.
• Package Dimensions: 13.0" W x 12.3" D x 6.0" H
• UPC: 729199591068
• Replacement Air Spring PN: 50203
• Warranty: Limited lifetime, no mileage restriction

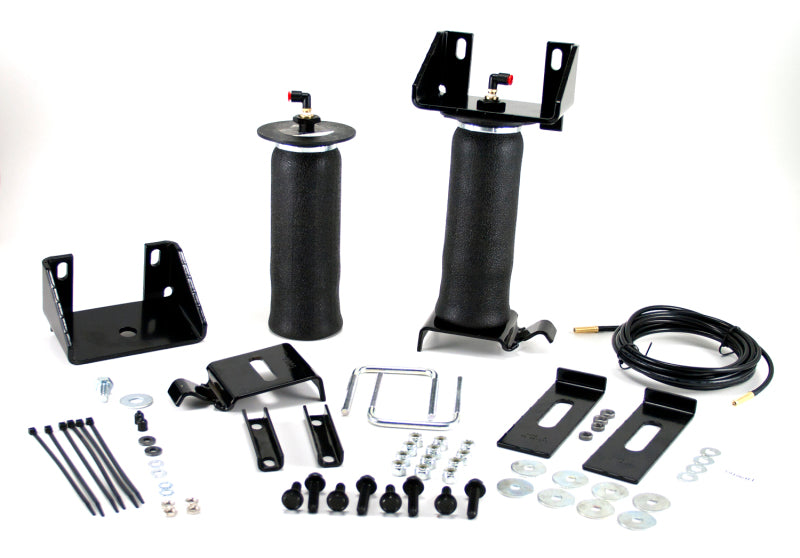

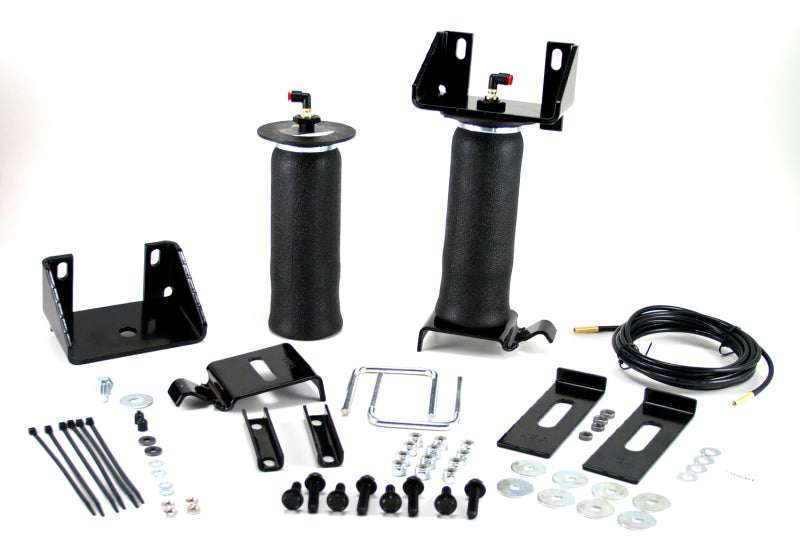

Included Components

• 2x SlamAir sleeve-style air springs
• 2x Inflation valves (Schrader-style, quick-connect)
• 1x Air line (16 ft.) for flexible valve placement anywhere on the vehicle
• 2x Mounting brackets
• 1x Complete hardware kit (all nuts, bolts, and fasteners for installation)
• 1x Exclusive installation alignment tool
• 1x Illustrated installation instruction manual

Product Description

The Air Lift 59106BT is a SlamAir adjustable air spring kit engineered specifically for 1988-1998 Chevrolet and GMC C1500 2WD full-size trucks that have been lowered 5-6 inches at the rear. The "BT" designation indicates fitment compatibility with Bell Tech lowering systems, but the kit also works with other aftermarket configurations at the same drop height - including flipped axle setups and C-notched frames. When a truck is lowered aggressively at this level, the factory leaf springs lose a significant portion of their travel and load-carrying capability, which leads to bottoming out, a harsh ride, trailer sway, and compromised handling under any meaningful load. The 59106BT resolves these issues by installing sleeve-style air springs between the frame and existing leaf springs, restoring up to 2,000 lbs. of supplemental load-leveling capacity and providing a fully adjustable spring rate from 5 to 100 PSI.

The air springs install using the included mounting brackets and alignment tool - an Air Lift-exclusive feature that simplifies spring positioning and ensures consistent placement without guesswork. The 16 ft. of included air line gives the installer flexibility to route the Schrader-style inflation valves to virtually any accessible location on the vehicle, such as inside the cab, behind a bumper, or in the bed. The nylon composite end caps resist corrosion and hold up to the long-term demands of a lowered daily driver or show vehicle without cracking or degrading. For maximum convenience, the 59106BT is fully compatible with Air Lift's on-board compressor systems (sold separately), which allow the driver to raise or lower the rear ride height from inside the cab - useful for clearing speed bumps, steep driveway inclines, or dynamically adjusting for a loaded trailer.

An important installation requirement: at the 5-6 inch drop level, the vehicle's frame must be C-notched to provide adequate clearance for the rear axle and air springs at full compression. Trucks that have not been notched are not compatible with this kit at this drop height. The 59106BT fits all cab configurations of the 1988-1998 C1500 - Regular Cab, Extended Cab, and Crew Cab - in 2WD only; 4WD K1500 models are not compatible. The replacement air spring for this kit is PN 50203. Air Lift backs the 59106BT with a limited lifetime warranty against defects in materials and workmanship with no mileage cap, plus a 60-day ride satisfaction guarantee.
