Air Lift 88242 Rear Air Spring Kit for 96-22 Ford E-450 Super Duty

Vehicle Fitment

• 1996-2022 Ford E-450 Super Duty - Rear Leaf Spring
• 1996-2022 Ford E-450 Class C Motorhome Chassis - Rear Leaf Spring

Fitment Notes

• Fits only vehicles equipped with side-mounted rear leaf spring suspension
• Does not fit vehicles with coil spring or independent rear suspension
• Not for use on cutaway chassis cabs with modified frame widths

Features

• Up to 5,000 lb of load-leveling capacity for rear suspension support
• Built-in closed-cell urethane jounce bumper for added safety when air pressure is low
• Air adjustable from 5 to 100 PSI for custom load leveling
• Heavy-duty 2-ply fabric reinforced rubber bellows
• Upper and lower roll plates protect bellows and extend lifespan
• No-frame-drill bolt-on installation using included brackets
• Engineered to reduce squat, sway, and bottoming out under load

Specifications

• Load Capacity: 5,000 lb per axle
• Pressure Range: 5-100 PSI
• Warranty: Limited Lifetime Warranty with 60-Day Satisfaction Guarantee
• Material: Reinforced rubber air springs, powder-coated steel hardware
• Install Time: Approximately 2 hours

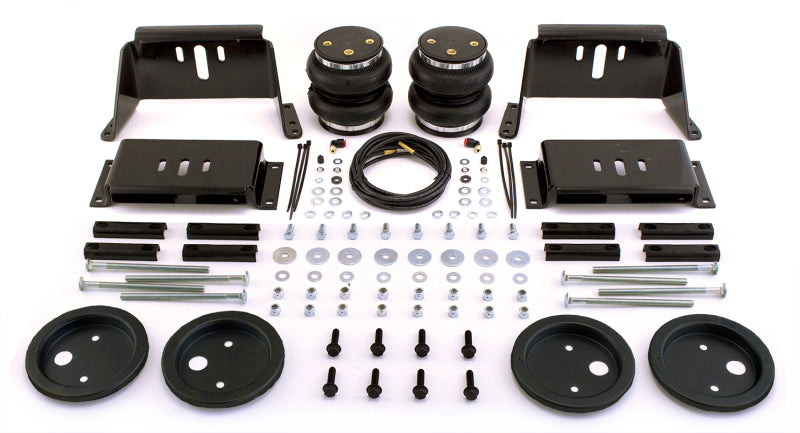

Included Components

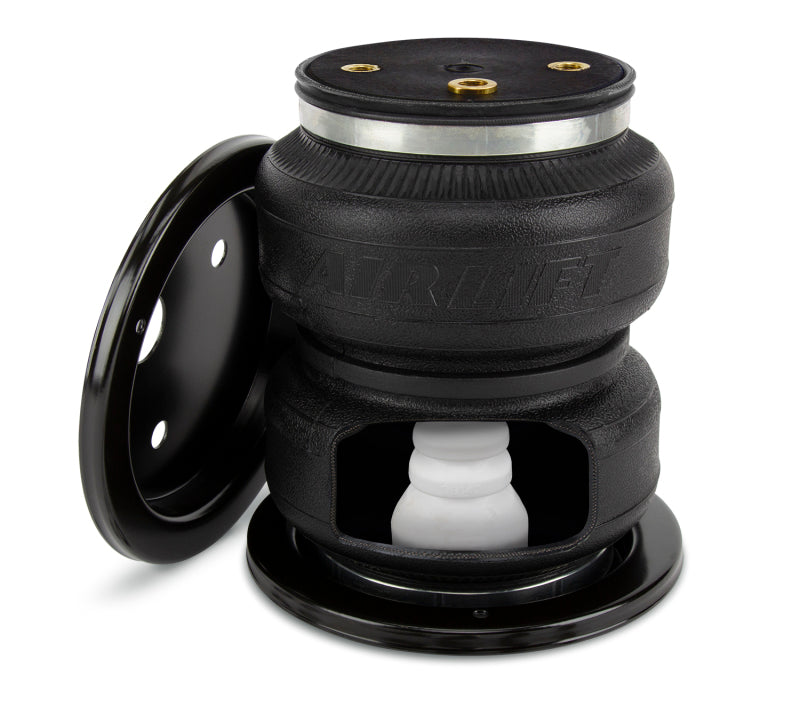

• (2) Air springs with integrated jounce bumpers

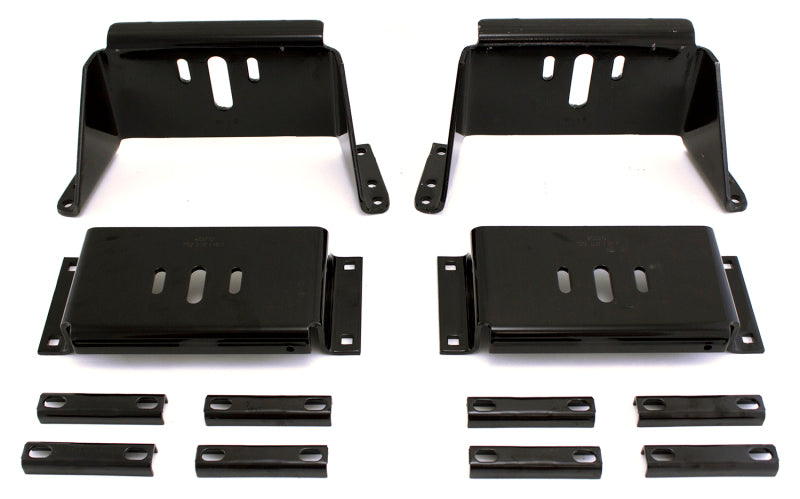

• Vehicle-specific mounting brackets and roll plates
• Air lines, inflation valves, hardware kit, and instructions

Product Description

The Air Lift 88242 LoadLifter 5000 Ultimate Air Spring Kit is designed to provide superior rear load support for Ford E-450 Super Duty vans and Class C RV chassis from 1996 to 2022. Engineered for vehicles with leaf spring rear suspension, this kit includes air-adjustable springs that support heavy loads while maintaining ride quality and safety. Integrated jounce bumpers ensure consistent performance even with no air pressure, preventing harsh bottom-outs. With its rugged construction, bolt-on installation, and trusted warranty, the 88242 kit delivers reliable load control for fleet, RV, and towing applications.
