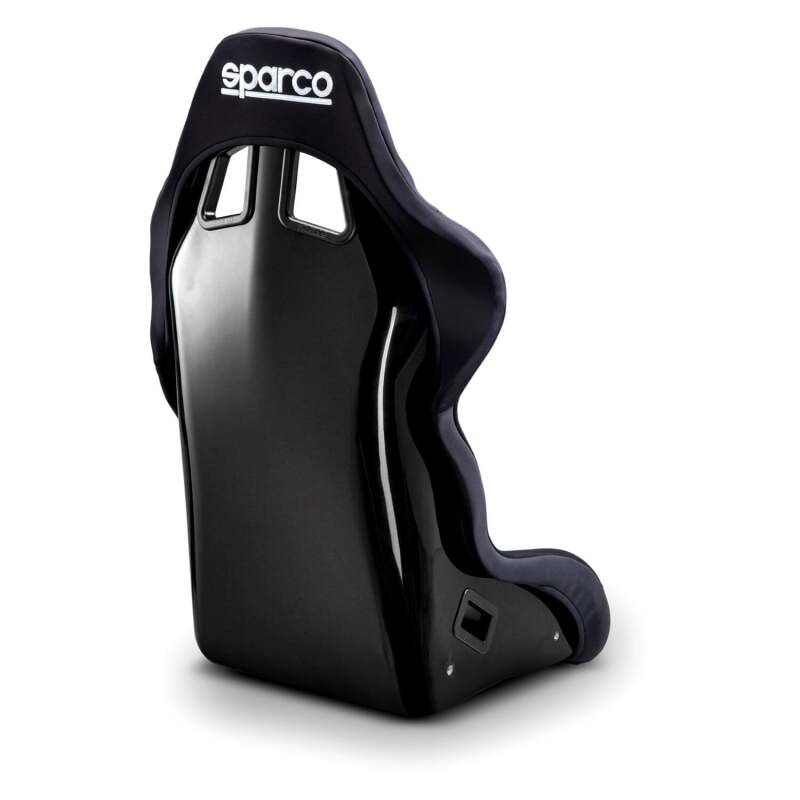

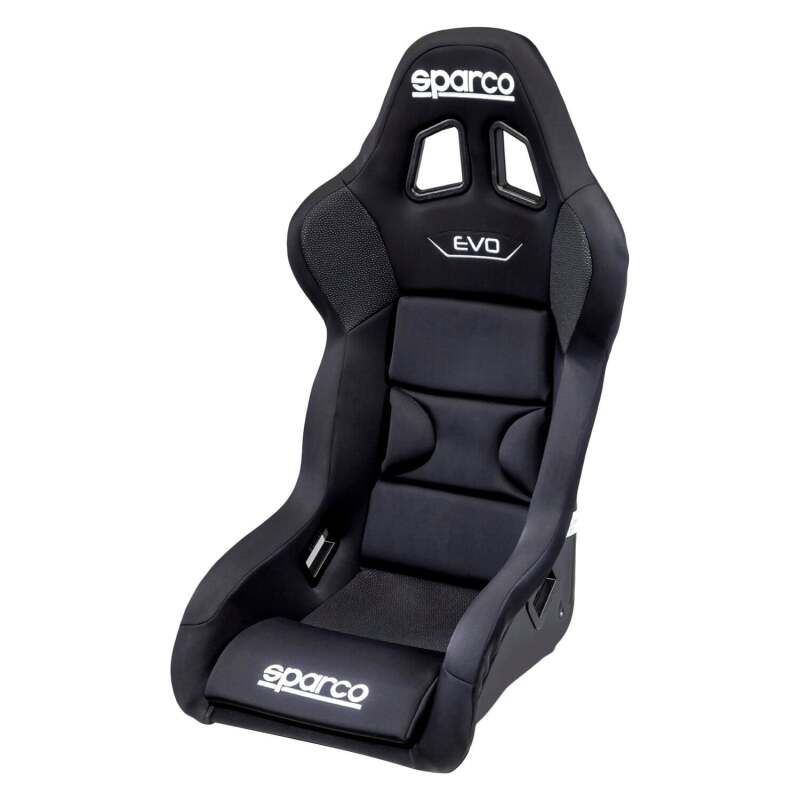

Sparco 008013XNR EVO L QRT X FIA Racing Seat Black Vinyl Fiberglass Large 36in

Vehicle Fitment

• Universal - Compatible with all competition vehicles across circuit racing, rally, drifting, off-road, and time attack disciplines
• Designed for Large drivers with a maximum waist size of 36 inches
• Side mount only - requires Sparco-compatible side mount brackets (sold separately)

Fitment Notes

• Side mount application only; bottom mount not supported on this model
• Side mount brackets use M8 hardware with a 290 mm fixed distance between mounting points
• HANS device compatible - raised shoulder-belt guide holes correctly position harness for taller drivers
• Part of the EVO series size range: EVO S (32" waist), EVO (34"), EVO L (36"), EVO XL (38")
• The "X" designation denotes waterproof vinyl outer cover - suited for off-road and wet-weather applications

Features

• QRT (Quick Resin Technology) fiberglass shell - patented aerospace-inspired process achieving 30% weight reduction over standard fiberglass seats
• Waterproof vinyl outer cover designed for off-road and all-weather competition use
• Non-slip fabric on shoulder area and seat bottom keeps driver firmly positioned under lateral load
• Split thigh cushion design allows independent leg movement for added comfort
• Taller highback design with raised shoulder-belt guide holes for correct harness positioning on larger drivers
• Relaxed back angle rake for an ergonomic, comfortable driving position
• 5-point harness slots for full harness compatibility
• FIA 8855-1999 homologated - meets international motorsport safety standards

Specifications

• Part Number: 008013XNR
• Color: Black
• Cover Material: Waterproof Vinyl (X Series)
• Shell Material: QRT Fiberglass Composite
• Driver Size: Large - up to 36" waist
• Total Height: 88.5 cm
• Shoulder Width: 58 cm
• External Base Width: 50.5 cm
• Total Length: 57 cm
• Shell Weight: approx. 6.5 kg
• Seat Weight (with cushions): approx. 7.7 kg
• Mounting Type: Side Mount Only
• Side Bracket Spacing: 290 mm (M8)
• Harness Slots: 5-point
• FIA Homologation: FIA 8855-1999
• HANS Compatible: Yes
• Country of Origin: Italy

Included Components

• 1x Sparco EVO L QRT X Racing Seat - Black Vinyl (008013XNR)

Product Description

The Sparco 008013XNR EVO L QRT X is a FIA 8855-1999 homologated competition seat built for large drivers requiring up to a 36-inch waist clearance. Using Sparco's patented QRT (Quick Resin Technology), the fiberglass composite shell achieves a 30% weight reduction compared to conventionally manufactured fiberglass seats - delivering near carbon fiber weight at a fiberglass price point. The waterproof vinyl outer cover (the "X" designation) makes this seat particularly well suited for rally, off-road, and any competition environment where exposure to moisture is a factor.

Despite its larger sizing, the EVO L QRT X is engineered to fit comfortably into smaller cockpits - a standout characteristic within the EVO lineup. Non-slip fabric on the shoulders and seat base keeps the driver secure under hard cornering loads, while the split thigh cushion allows independent leg movement for comfort over long stints. HANS compatibility, raised harness guide holes, and 5-point harness slot integration make this seat a complete safety solution for serious competitors at any level.
