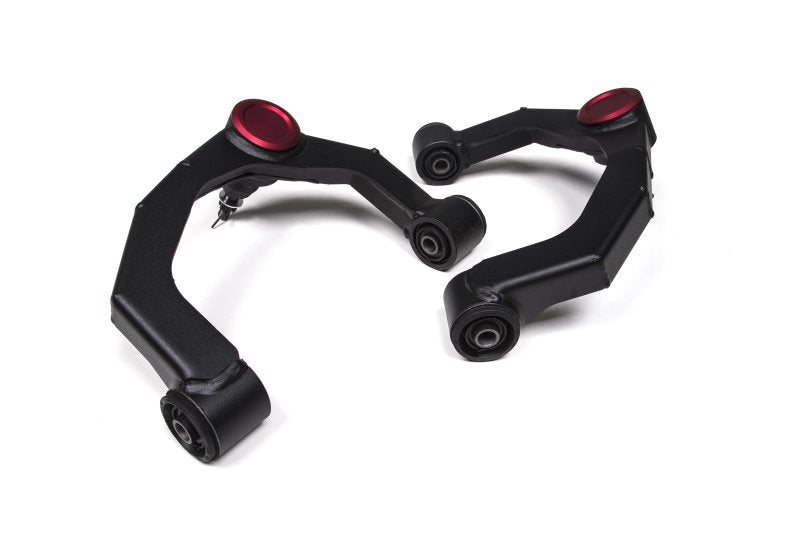

Zone Offroad ZONF2300 Front Upper Control Arms for 2004-2020 Ford F-150 2WD/4WD

Vehicle Fitment

• 2004-2008 Ford F-150 (2WD/4WD, 4.2L V6 / 4.6L V8 / 5.4L V8)
• 2009-2010 Ford F-150 (2WD/4WD, 4.6L V8 / 5.4L V8)
• 2011-2014 Ford F-150 (2WD/4WD, 3.5L V6 / 3.7L V6 / 5.0L V8 / 6.2L V8)
• 2015-2017 Ford F-150 (2WD/4WD, 2.7L V6 EcoBoost / 3.5L V6 EcoBoost / 5.0L V8 / 3.5L V6 NA)
• 2018-2020 Ford F-150 (2WD/4WD, 2.7L V6 EcoBoost / 3.3L V6 / 3.5L V6 EcoBoost / 5.0L V8 / 3.0L V6 PowerStroke Diesel)

Fitment Notes

• Designed for trucks equipped with 2-3 inch leveling kits or 6 inch suspension lift systems.
• Compatible with Fox coilovers, Zone 2-inch strut spacers, and Zone 6-inch IFS lift systems.
• May not be compatible with all aftermarket strut spacers; verify ball joint to coil clearance before installation.
• If factory upper control arm contacts the coil spring or clearance is less than 1/8 inch, alternative suspension components may be required.

Features

• Adventure Series heavy-duty upper control arm upgrade
• Improves front suspension strength and durability compared to factory arms
• CNC-machined indexed ball joint cup optimized for lifted and leveled trucks
• Increases suspension droop travel for improved off-road articulation
• Greaseable heavy-duty ball joints with protective debris caps
• OE-style rubber bushings provide quiet operation and long service life
• Fully welded plate-steel construction with boxed design for rigidity
• Direct bolt-on installation using factory mounting locations

Specifications

• Position: Front Suspension
• Component Type: Upper Control Arm Kit
• Recommended Lift Range: 2-3 inches leveling or 6 inches suspension lift
• Construction: Fully welded plate steel
• Bushing Material: OE-style rubber
• Ball Joint Type: Greaseable heavy-duty
• Finish: Black powder-coat
• Estimated Installation Time: 1-2 hours

Included Components

• 2x Front upper control arms
• 2x Preinstalled rubber bushings
• 2x Greaseable ball joints with protective caps

Product Description

The Zone Offroad ZONF2300 Adventure Series Upper Control Arm Kit is designed to improve suspension performance and durability on 2004-2020 Ford F-150 trucks equipped with leveling kits or suspension lifts. Factory control arms can limit suspension travel and affect alignment geometry when lift components are installed. These heavy-duty replacement arms correct those issues while providing additional strength for demanding off-road use.

Constructed from fully welded plate steel with a boxed design, the arms deliver significantly greater rigidity compared to factory components. Each control arm features a CNC-machined indexed ball joint cup that repositions the ball joint to improve alignment angles and suspension travel on lifted applications. Greaseable heavy-duty ball joints with protective caps help prevent contamination and extend service life.

Preinstalled OE-style rubber bushings ensure quiet operation and maintenance-free durability while maintaining a comfortable ride. Designed as a direct bolt-on upgrade, the ZONF2300 control arm kit installs in the factory mounting locations and works with leveling kits, Fox coilovers, or 6-inch suspension lift systems to improve suspension articulation and reliability on lifted F-150 trucks.
