Product Specification:

SKU:YUKYHC50007

MPN: YHC50007

UPC: 883584290803

Weight: 4.1 lb

Inventory: 2

Type: Differential Install Kits

Description

Vehicle Fitment

• Dana Spicer 44 front axles with 19-spline outer stub axles (open knuckle and closed knuckle applications)
• 1970-1980 Chevrolet/GMC K5 Blazer/Jimmy (Dana 44 front axle, 4WD)
• 1970-1991 Chevrolet/GMC K10/K15/K1500 1/2-Ton Truck (Dana 44 / GM 10-bolt front, 4WD)
• 1970-1991 Chevrolet/GMC K20/K25/K2500 3/4-Ton Truck (Dana 44 / GM 10-bolt front, 4WD)
• 1988-1991 Chevrolet/GMC V1500 Suburban (Dana 44 / GM 10-bolt front, 4WD)
• 1988-1991 Chevrolet/GMC V2500 Suburban (Dana 44 / GM 10-bolt front, 4WD)

Fitment Notes

• Fits Dana Spicer 44 axles with 19-spline outer stub axles only - does not fit 30-spline Dana 44 applications (see YHC50001 for 30-spline)
• Inner stub spline count is 1.271" diameter, 19-spline; outer drive flange interface is 48-spline
• Verify your outer stub axle spline count before ordering - spline count varies by application and year
• This kit replaces internal manual locking hubs with solid drive flanges; converts the axle to full-time front engagement on both sides
• This is a universal axle-platform fitment - always confirm your specific outer stub spline count physically before ordering

Features

• Eliminates internal locking hub assemblies - a common failure point on Dana 44 front axles
• Solid drive flanges provide a direct, permanent connection between the axle stub and wheel hub
• Forged and machined for superior strength over factory cast or stamped components
• Yukon engraved caps add a finished, custom appearance at the wheel end
• All necessary hardware included - no additional fasteners needed for installation
• Engineered for serious off-road use where locking hub failure is not an option
• Improves drivetrain reliability by removing serviceable locking hub internals prone to wear and breakage
• Compatible with standard and upgraded Dana 44 axle shaft setups using 19-spline outer stubs

Specifications

• Axle: Dana Spicer 44
• Outer Stub Spline Count: 19-spline
• Inner Stub Diameter: 1.271"
• Outer Drive Flange Interface: 48-spline
• Position: Front axle, both sides
• Shipping Weight: 4.2 lbs
• Shipping Dimensions: 12" L x 13" W x 3" H

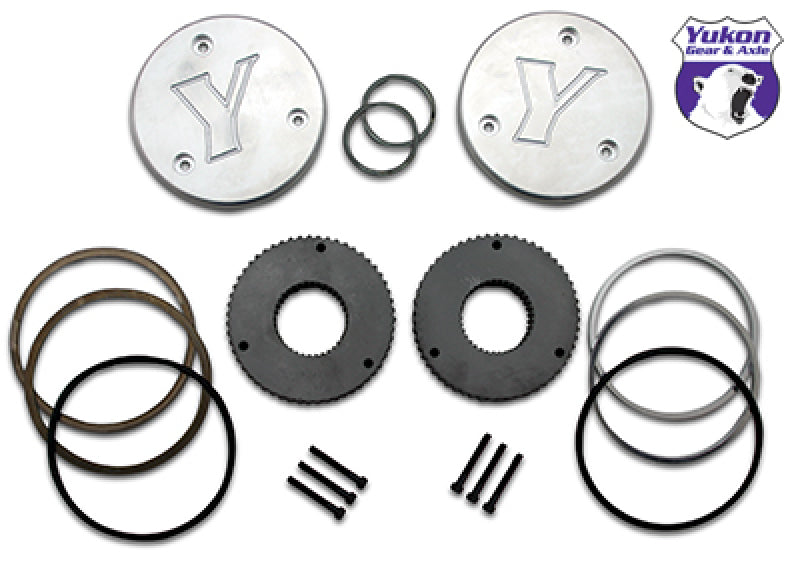

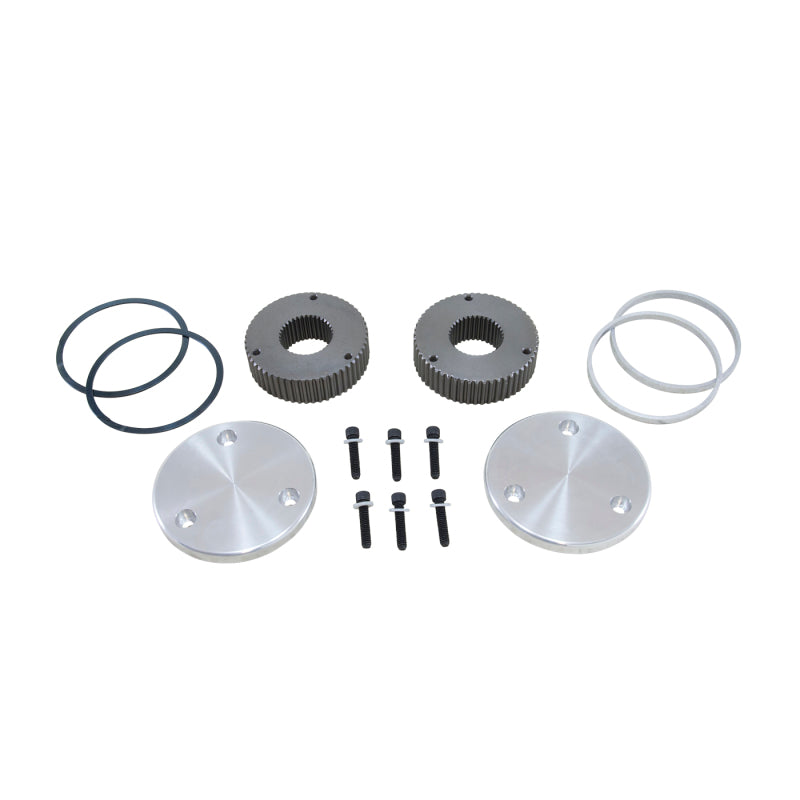

Included Components

• 2x Hardcore drive flanges (driver and passenger side)
• 2x Yukon engraved caps
• 1x Set of all necessary mounting hardware

Product Description

The Yukon YHC50007 Hardcore Drive Flange Kit is a direct replacement for the factory internal manual locking hubs on Dana 44 front axles equipped with 19-spline outer stub axles. Locking hubs are a well-known failure point on older GM trucks and off-road rigs - the internal engagement splines and pawls wear, break, or fail to engage under stress, leaving you without front 4WD when you need it most. Yukon's solid drive flanges eliminate that weak link entirely by creating a permanent, full-time mechanical connection between the outer stub axle and the wheel hub.

Each flange is precision-machined for a direct fit on the 19-spline Dana 44 outer stub and includes Yukon engraved caps that finish the installation cleanly. The full hardware kit means no separate fastener sourcing is required. This upgrade is especially popular on rock crawlers, trail rigs, and restored classic 4x4 trucks where locking hub reliability is critical. Note that converting to drive flanges means both front wheels are continuously engaged with the front axle - a trade-off to be aware of for on-road use.
