Yukon YGLD44-4-30 Grizzly Locker for Dana 44 30-Spline 3.92 &Up Ratio Front/Rear

Regular price: $639.95
Regular price
Sale price: $639.95

Shipping calculated at checkout.

In Stock: 0

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:YUKYGLD44-4-30

UPC: 883584280019

Weight: 22.1 lb

Type: Differentials

Vehicle Fitment

1960-1980 Chevrolet / GMC K20 / K2500 (4WD, Dana 44 Front Axle, 30-Spline, 3.92 & Up Ratio)
1973-1979 Chevrolet K5 Blazer / GMC Jimmy (4WD, Dana 44 Front Axle, 30-Spline, 3.92 & Up Ratio)
1967-1993 Dodge W100 / W150 (4WD, Dana 44 Front Axle, 30-Spline, 3.92 & Up Ratio)
1969-1993 Dodge W200 / W250 (4WD, Dana 44 Front/Rear Axle, 30-Spline, 3.92 & Up Ratio)
1974-1993 Dodge Ramcharger / Plymouth Trailduster (4WD, Dana 44, 30-Spline, 3.92 & Up Ratio)
1966-1982 Ford F-100 / F-150 (4WD, Dana 44 Front Axle, 30-Spline, 3.92 & Up Ratio)
1967-1977 Ford F-250 Regular Cab (4WD, Dana 44 Front Axle, 30-Spline, 3.92 & Up Ratio)
1971-1982 Ford Bronco (4WD, Dana 44 Front Axle, 30-Spline, 3.92 & Up Ratio)
1970-1975 Jeep CJ-5 / CJ-6 (4WD, Dana 44 Rear Axle, 30-Spline, 3.92 & Up Ratio)
1986 Jeep CJ-7 (4WD, Dana 44 Wide Track Rear Axle, 30-Spline, 3.92 & Up Ratio)
1970-1988 Jeep J-Series Truck / J10 / J20 (4WD, Dana 44 Front/Rear Axle, 30-Spline, 3.92 & Up Ratio)
1974-1991 Jeep Cherokee / Wagoneer (FSJ Platform, 4WD, Dana 44, 30-Spline, 3.92 & Up Ratio)
1987-1990 Jeep Cherokee XJ (4WD, Dana 44 Rear Axle, 30-Spline, 3.92 & Up Ratio)
1986-1992 Jeep Comanche MJ Pickup (4WD, Dana 44 Rear Axle, 30-Spline, 3.92 & Up Ratio)
1997-2006 Jeep Wrangler TJ (4WD, Dana 44 Rear Axle, 30-Spline, 3.92 & Up Ratio)
2004-2006 Jeep Wrangler TJ Unlimited LJ (4WD, Dana 44 Rear Axle, 30-Spline, 3.92 & Up Ratio)
1971-1980 International Harvester Scout II (4WD, Dana 44 Rear Axle, 30-Spline, 3.92 & Up Ratio)

Fitment Notes

For 3.92 and numerically higher gear ratios ONLY (e.g., 4.10, 4.56, 4.88, 5.13) - does NOT fit 3.73 and lower ratio applications; see YGLD44-3-30 for those
Does NOT fit early Dana 44 axles with tapered axle shaft designs that used an axle spacer button
This unit is drilled for 7/16" ring gear bolts - if your application uses 3/8" ring gear bolts, purchase 10x Yukon YSPBLT-027 bolt spacers
Does NOT fit Jeep Wrangler JK (2007-2018) - see YGLD44-3-30-JK for non-Rubicon JK applications
Does NOT fit Jeep Wrangler JL (2018+) or Jeep Gladiator JT - see YHCC-D44JL-REAR for those platforms
Does NOT fit Jeep Wrangler Rubicon JK Dana 44 with factory electronic locker
Verify spline count (30-spline) and gear ratio before ordering - carrier break is 3.92 & up

Features

Mechanical positive-locking differential delivering 100% power to both tires simultaneously under load
Automatically disengages during turns to allow wheel speed differentiation
Patented inner clutch tooth design with larger base radius - up to 350% stronger than conventional back-cut designs
Forged case with 8620 chromoly steel internals for maximum strength and shock-load resistance
Engineered specifically for the 3.92 & up carrier break on Dana 44 axles - correct offset for proper gear mesh
Compatible with front and rear Dana 44 axle applications across multiple makes and models
Assembled in the USA for consistent quality and precision fitment
Backed by Yukon's industry-leading warranty covering the replacement unit plus up to $2,000 in collateral parts and labor

Specifications

Application: Dana Spicer 44 (Standard and Reverse Rotation) - Front and Rear
Axle Spline Count: 30-spline
Gear Ratio: 3.92 and numerically higher (slow case carrier)
Ring Gear Bolt Hole Size: 7/16" (use YSPBLT-027 spacers for 3/8" bolt applications)
Ring Gear Bolt Count: 10
Case Material: Forged steel
Internals: 8620 chromoly steel
Assembly: USA
Weight: Approximately 22.5 lbs
Warranty: Yukon Y.E.S. Extended Service Plan eligible

Included Components

1x Yukon Grizzly Locker unit (fully assembled, Dana 44 30-spline 3.92 & up)
1x Cross-pin and hardware kit
1x Installation instruction sheet

Product Description

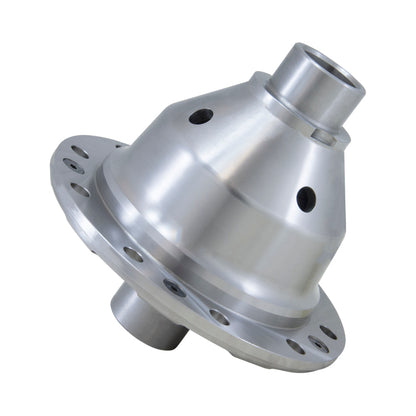

The Yukon Gear & Axle YGLD44-4-30 Grizzly Locker is a full mechanical positive-locking differential built for Dana Spicer 44 axles with 30-spline shafts and gear ratios of 3.92 and higher. Spanning a wide range of Jeep, Ford, GM, Dodge, and International Harvester applications from the early 1960s through the mid-2000s, the YGLD44-4-30 is engineered for rock crawling, trail running, off-road racing, and drag racing where maximum traction is non-negotiable. Under load it routes 100% of available power to both tires simultaneously, while its mechanical design allows the unit to automatically disengage during turns for manageable on-road behavior.

The Grizzly Locker's patented tooth geometry is what separates it from standard locker designs. Inner clutch teeth are cut with a larger radius at the base compared to conventional back-cut alternatives, delivering up to 350% greater strength at the tooth root - the most common point of fracture under shock loading from hard launches, sudden terrain drops, or catastrophic axle events. This design, combined with a forged steel case and 8620 chromoly internals, makes the YGLD44-4-30 one of the most durable locker options available for the Dana 44 platform across all supported applications.

This unit is designed for the 3.92-and-up (slow case) carrier break on the Dana 44, and is drilled for 7/16" ring gear bolts. If your application uses 3/8" ring gear bolts, ten Yukon YSPBLT-027 bolt spacers are required and must be purchased separately. This locker does NOT fit early Dana 44 axles with tapered axle shaft designs that used an axle spacer button, and is not compatible with Jeep JK or JL Wrangler applications - platform-specific part numbers exist for those builds. All units are assembled in the USA and are backed by Yukon's Y.E.S. (Extended Service) Plan warranty.
