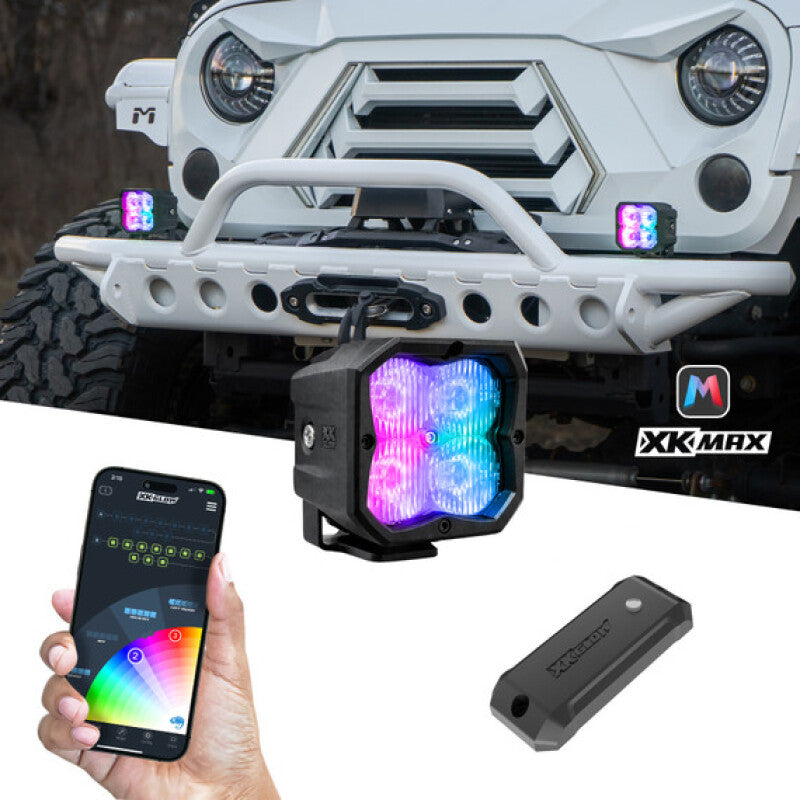

XKGlow MX-CUBE-S-KIT XKmax RGBW Addressable Cube Light Kit Spot Beam

Vehicle Fitment

• Universal 11-14V automotive and off-road applications with suitable mounting space and electrical capacity.

Fitment Notes

• Universal lighting product; vehicle-specific year, make, model, trim, engine, and drivetrain fitment does not apply.
• Designed for Jeep, truck, UTV, and other off-road applications where suitable mounting provisions are available.
• Spot-beam configuration is intended for focused long-distance illumination; verify local lighting regulations before on-road use.
• Some adaptation may be required depending on the vehicle and mounting location.

Features

• XKmax RGBW addressable cube light kit with spot beam optics
• 20W high-output LED chips for powerful forward illumination
• RGBW chasing backlight with more than 16 million RGB colors
• Dynamic chasing patterns and flowing color effects
• Focused spot-beam pattern for long-distance off-road illumination
• Bluetooth 4.0 Low Energy smartphone control

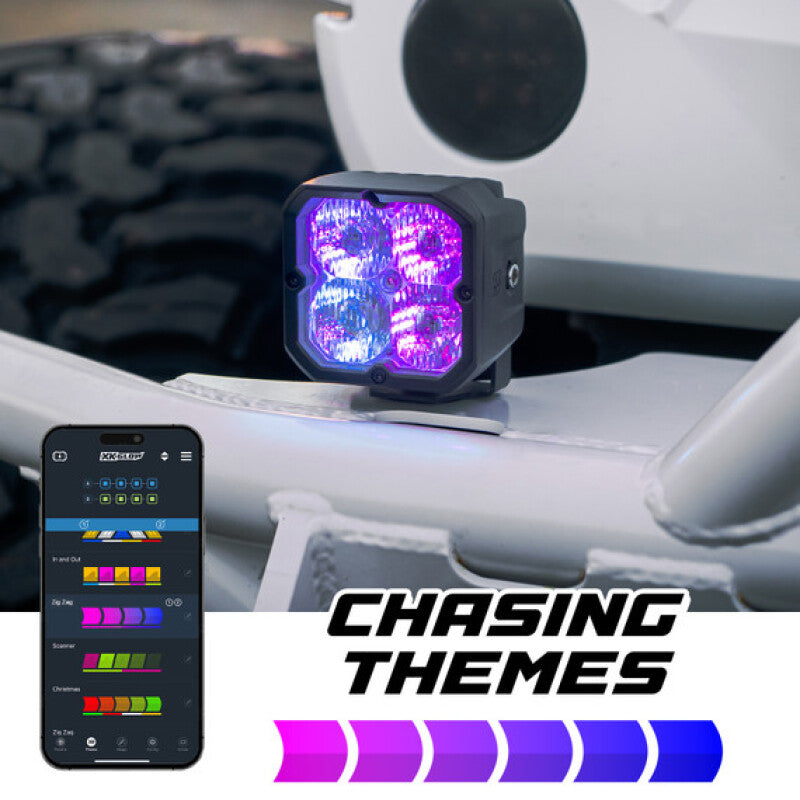

• 28+ pre-built chasing-light themes
• DIY builder for customizable colors, patterns, speed, and brightness
• Music, vehicle-speed, and acceleration synchronization
• Upgradeable controller architecture for additional cube lights

Specifications

• Product Type: RGBW Addressable LED Cube Light Kit
• Series: XKmax
• Part Number: MX-CUBE-S-KIT
• Beam Pattern: Spot
• LED Power: 20W high-output LED chips
• Maximum Light Power: 30W
• Backlight Maximum Power: 7.2W
• Input Voltage: 11-14V DC
• Controller Maximum Load: 5A per channel
• Bluetooth: Bluetooth 4.0 Low Energy

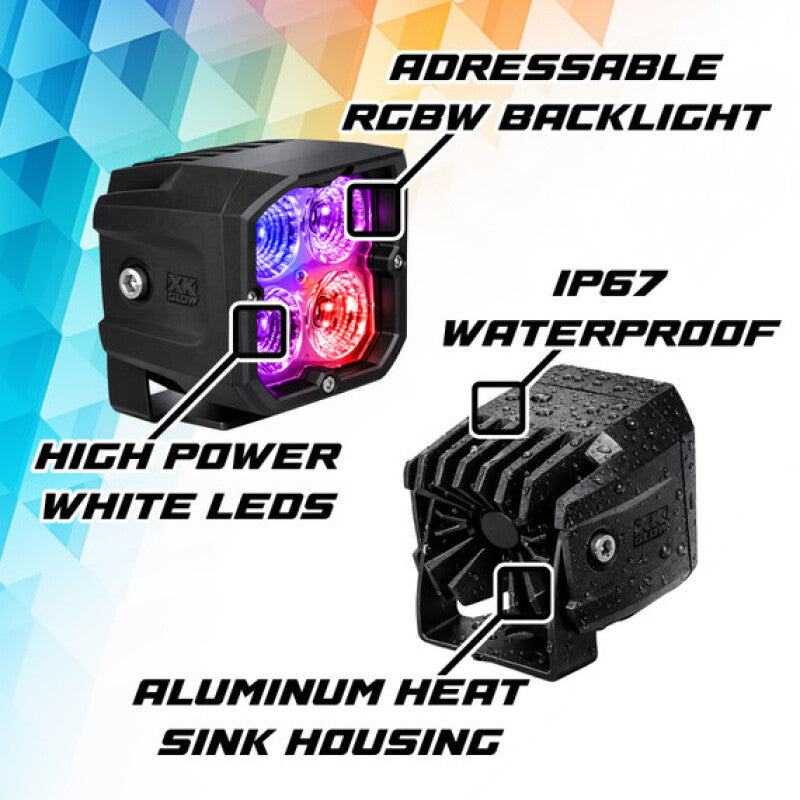

• Light Type: RGBW with Addressable Backlight
• Application: Universal automotive and off-road auxiliary lighting

Included Components

• 2x XKmax RGBW Addressable Cube Lights
• 1x XKmax Bluetooth Controller
• 1x Wiring Harness

Product Description

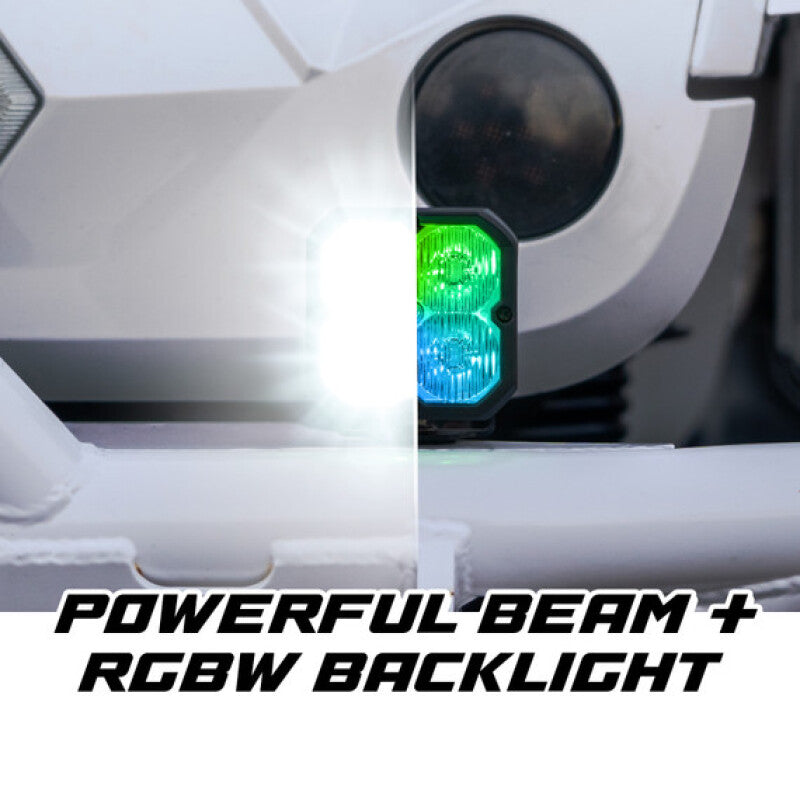

The XKGLOW MX-CUBE-S-KIT XKmax RGBW Addressable Cube Light Kit combines a focused spot beam with customizable RGBW accent lighting. The cube lights use 20W high-output LED chips for concentrated illumination, making the spot-beam configuration well suited to off-road driving and applications requiring longer-range forward lighting.

The integrated RGBW backlight adds more than 16 million RGB color options and supports dynamic chasing and flowing effects. Bluetooth 4.0 Low Energy connectivity provides smartphone control through the XKmax system, including 28+ preset chasing themes, custom DIY effects, adjustable colors, patterns, speed, and brightness, along with music, vehicle-speed, and acceleration synchronization.

The system operates on an 11-14V DC electrical supply and uses a controller rated for up to 5A per channel. The controller can also be upgraded to support additional Cube lights. Because this is a universal auxiliary lighting kit, confirm mounting clearance, wiring capacity, and applicable lighting regulations before installation.
