XKGLOW XK-GRILL-JK1-DM XKchrome RGBWA LED Grille Kit DRL Sequential 07-18 JK

Vehicle Fitment

• 2007-2018 Jeep Wrangler JK (2-Door)
• 2007-2018 Jeep Wrangler JK Unlimited (4-Door, JKU)

Fitment Notes

• XK-GRILL-JK1-DM is a complete front grille replacement for all 2007-2018 Jeep Wrangler JK and JKU models - fits all trim levels including Sport, Sahara, Rubicon, and X
• This is the Dual Mode (DM) variant, which includes the XKchrome Dash Surface Mount Controller with push-button dash control and Bluetooth app control - the standard XK-GRILL-JK1 ships with only the single-zone Bluetooth controller
• For 2018-2026 Jeep Wrangler JL/JLU and 2020-2026 Gladiator JT, use part number XK-GRILL-JL1-DM
• Replaces the factory grille entirely; no grille overlay or adapter required
• XKchrome app requires iOS 9 or higher or Android 4.4 or higher; Bluetooth 4.0 Low Energy

Features

• Integrated RGBWA (Red, Green, Blue, White, Amber) LED lights built directly into an aggressive, purpose-designed matte black replacement grille housing
• Pure white DRL mode using dedicated white LED chips delivers street-legal daytime running light output without activating color mode

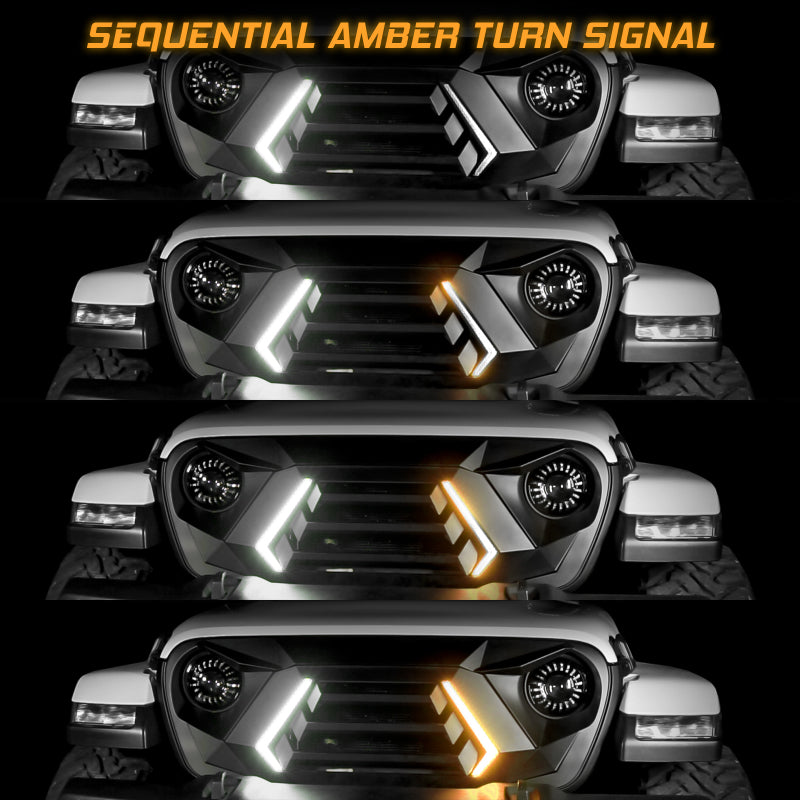

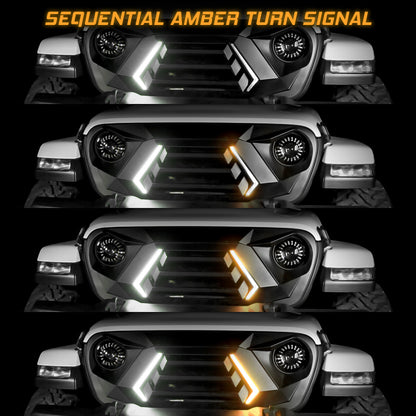

• Sequential amber turn signal function activates automatically when the left or right turn signal is engaged, with the corresponding side illuminating in a progressive sequential pattern

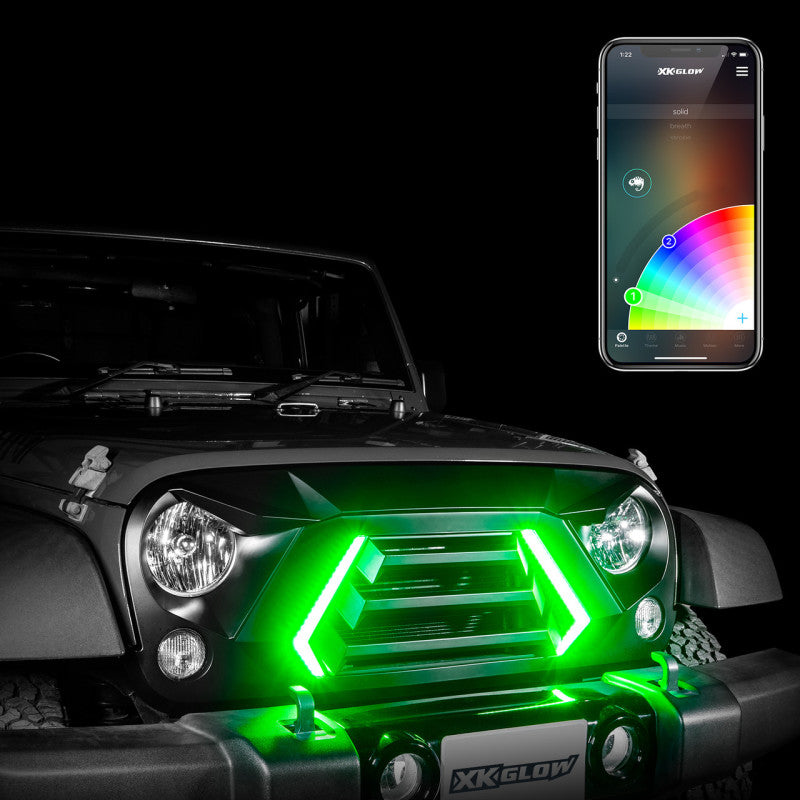

• Dual control modes included: physical dash push-button control with auto-memory of last color setting, and full XKchrome Bluetooth smartphone app control
• 16 million color options accessible via the XKchrome app with full brightness and pattern adjustment
• Music sync mode ties lighting patterns to real-time audio input, including support for third-party streaming music apps
• Speed and acceleration sync modes adjust LED behavior dynamically based on vehicle dynamics
• Over 15 preset holiday and seasonal themes plus a fully customizable DIY theme builder in the XKchrome app
• Dual-zone output controller allows independent control of left and right grille light sections
• IP67-rated waterproof Dual Mode controller is fully potted for protection in off-road and marine environments
• Matte black finish on the grille shell provides an aggressive, custom appearance that complements factory and aftermarket JK builds alike

Specifications

• Part Number: XK-GRILL-JK1-DM
• LED Type: RGBWA (Red, Green, Blue, White, Amber)
• Input Voltage: 12V DC
• Max Power Consumption: 0.4A
• Sensor Wire Input: 12V DC (Left turn, Right turn, Brake/customizable)
• Controller Type: Dual Mode - Dash Push-Button + XKchrome Bluetooth App
• Controller Output Channels: 2 (dual zone), Max 3A per channel
• Controller Output Wires: Two 12 ft 4-pin output wires
• Controller Waterproof Rating: IP67 (fully potted)
• Bluetooth Version: 4.0 Low Energy
• App Compatibility: iOS 9 or higher, Android 4.4 or higher
• Grille Finish: Matte black automotive-grade plastic
• Installation Type: Complete direct-replacement grille (factory grille removed)
• Installation Time: 1-2 hours
• Warranty: 3-Year Limited (LED grill lights and XKchrome controller)

Included Components

• 1x RGBWA LED Replacement Grille (JK-specific fitment, matte black)
• 1x XKchrome Dual Mode Dash Surface Mount Controller (IP67)
• 1x Wiring Harness with Sensor Wires (left turn, right turn, brake/customizable)
• 2x 12 ft 4-pin output wires
• 1x Mounting Hardware Set
• 1x User Manual

Product Description

The XKGLOW XK-GRILL-JK1-DM is a complete RGBWA LED front grille replacement purpose-built for 2007-2018 Jeep Wrangler JK and JKU models. Unlike grille overlays or insert kits, this is a full direct-swap assembly that removes and replaces the factory grille entirely, incorporating integrated RGBWA LED light bars directly into a newly designed matte black grille shell. The aggressive styling sets it apart from the standard Wrangler front end, while the embedded lighting system delivers a pure white DRL mode for street-legal daytime use and a sequential amber turn signal that activates automatically on the left or right side when the turn signal is engaged - no additional wiring modifications required beyond the provided harness connections.

The XK-GRILL-JK1-DM specifically includes XKGLOW's Dual Mode Dash Surface Mount Controller, which upgrades the control experience beyond the standard single-zone Bluetooth-only controller included with the base XK-GRILL-JK1. The dual mode controller provides two independent output channels for left and right zone control and supports two complete control interfaces: physical push-button controls mounted on the dash surface for quick direct access to color, brightness, and pattern settings (with auto-memory that saves the last active setting), and full XKchrome Bluetooth smartphone app control for access to 16 million colors, music sync, speed and acceleration sync, over 15 holiday themes, and a DIY theme builder. The controller is fully potted to an IP67 waterproof rating, making it suitable for the rigors of off-road use and exposure to the elements.

Installation is rated for intermediate-level DIY installers and takes approximately 1-2 hours. The grille shell bolts into the factory mounting locations on the JK, and the wiring harness connects to the vehicle's existing turn signal and sensor circuits via the included sensor wires. Dedicated installation instruction videos are available from XKGLOW specifically for the JK platform. This kit is ideal for 2007-2018 Jeep Wrangler JK owners who want a single-purchase upgrade that combines a bold new front grille aesthetic with a fully integrated, app-controlled multicolor LED DRL and sequential turn signal system - with the added convenience of in-cabin dash button control.
