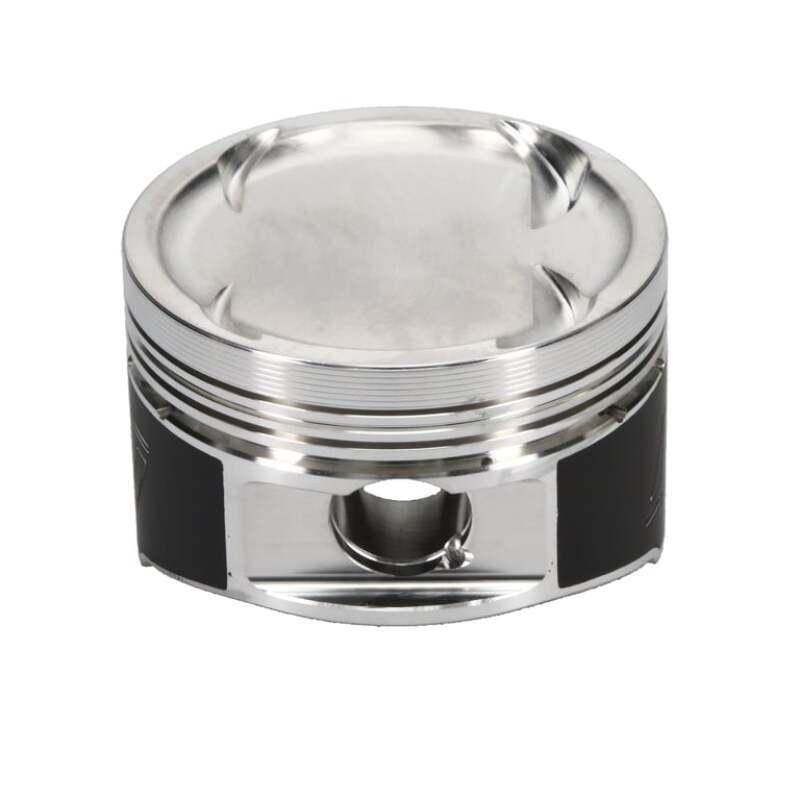

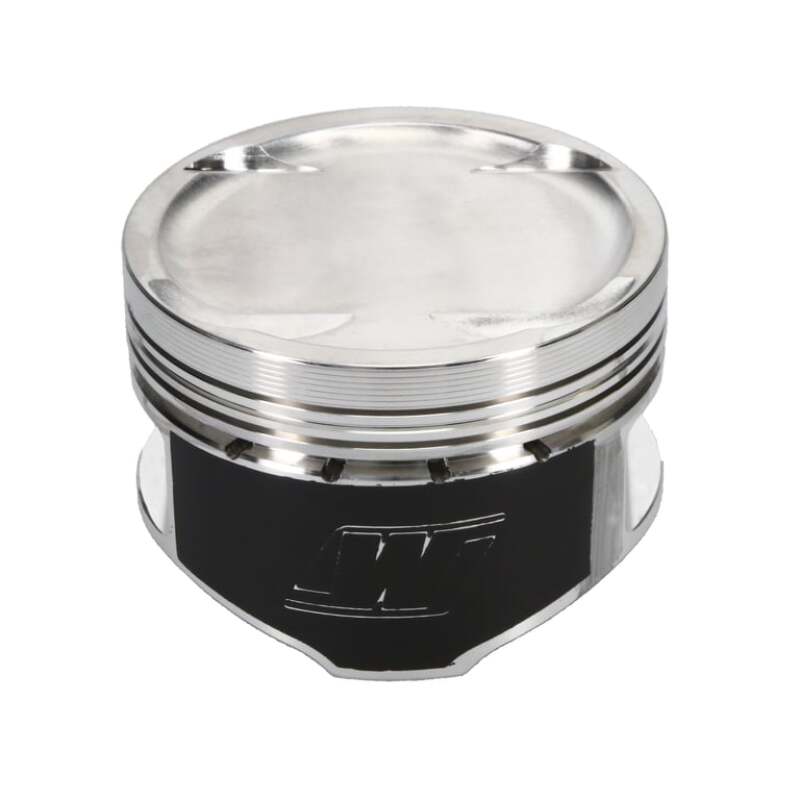

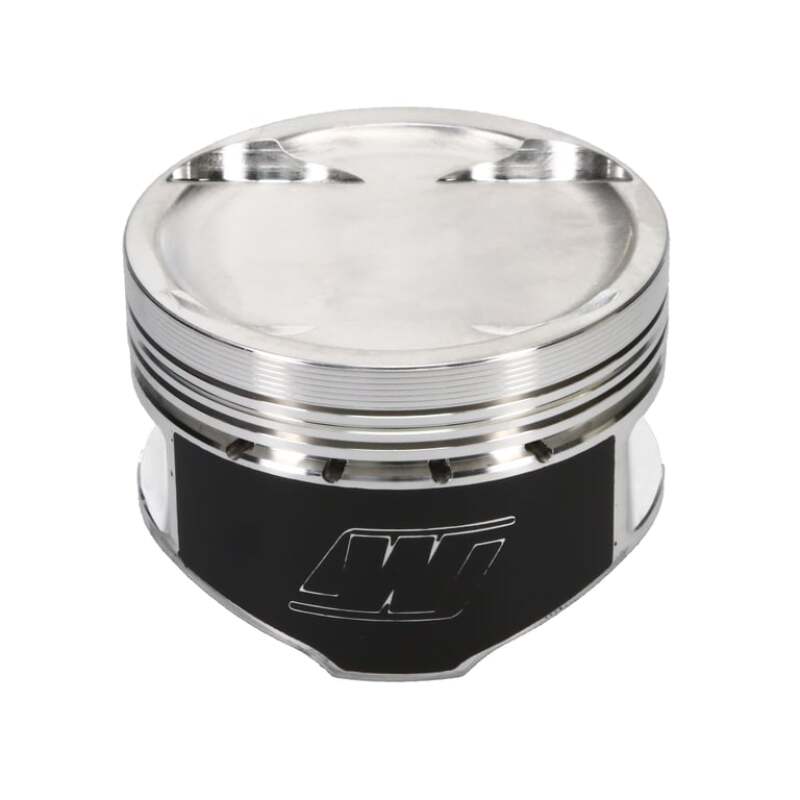

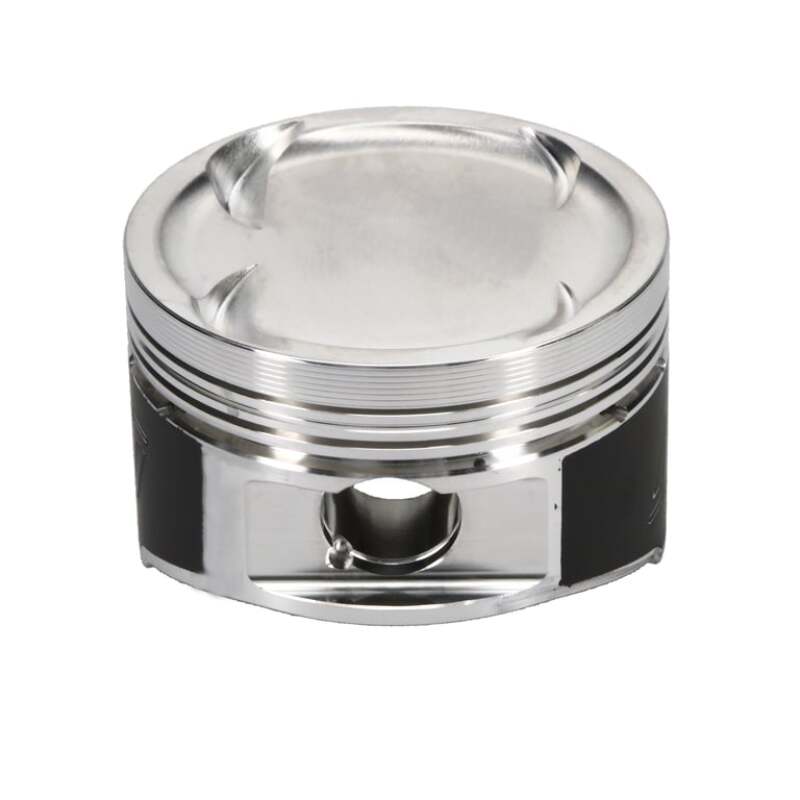

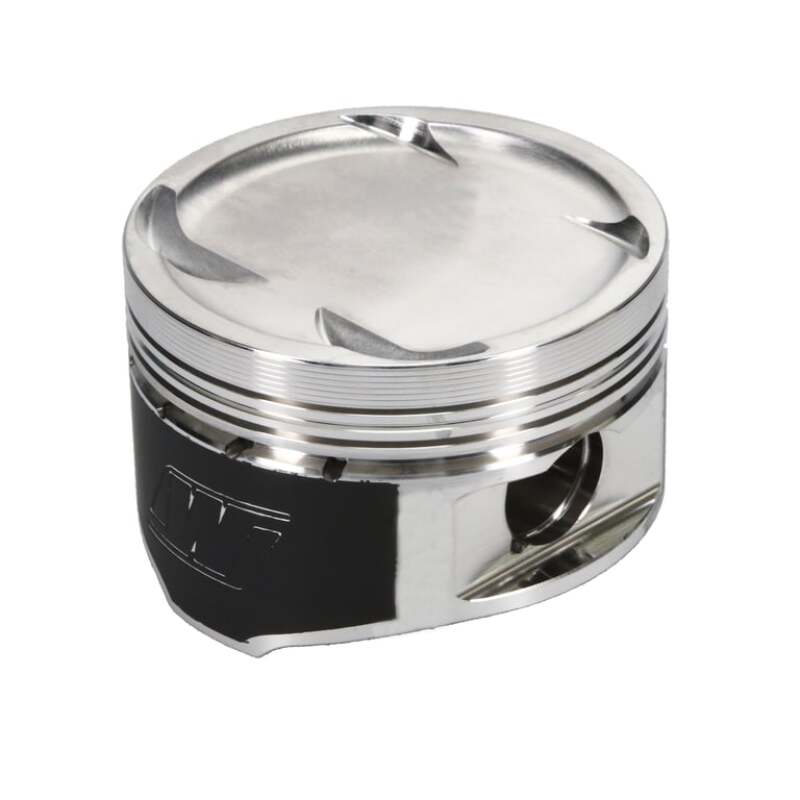

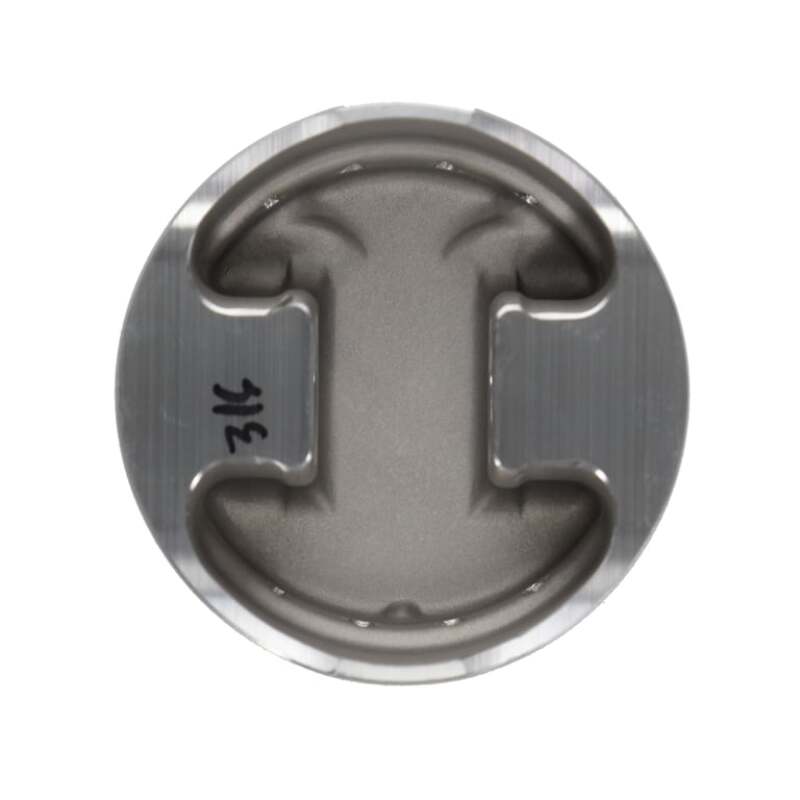

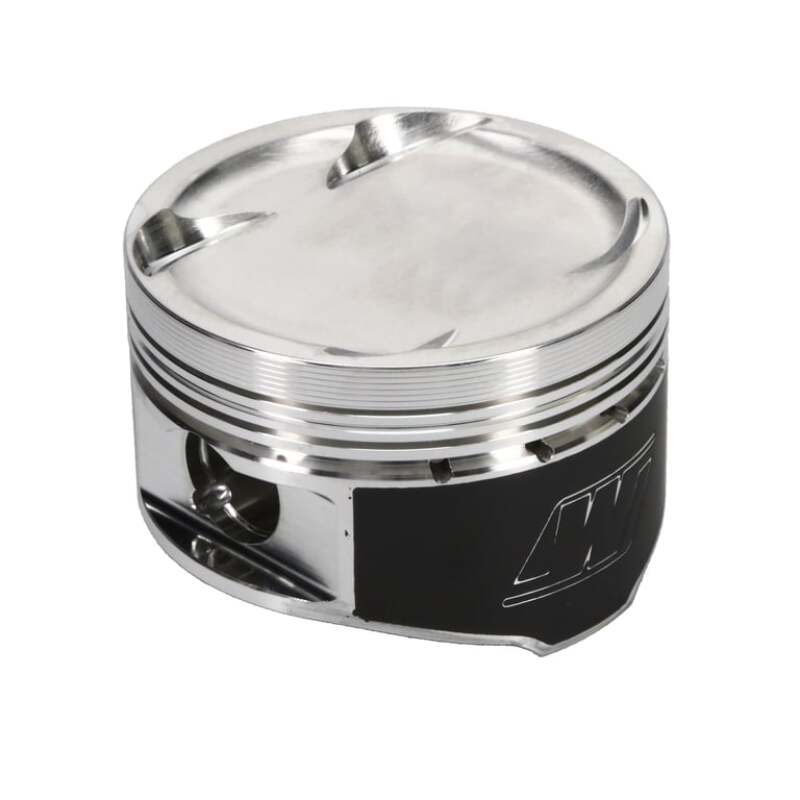

Wiseco K543M75 Forged Piston Kit for 1996-2000 Honda Civic D16Y8

Vehicle Fitment

• 1996-2000 Honda Civic (D16Y8, 1.6 L SOHC 16-valve, NA)

Features

• Forged 2618 aluminum construction for high strength
• ArmorGlide® skirt coating for reduced friction and noise

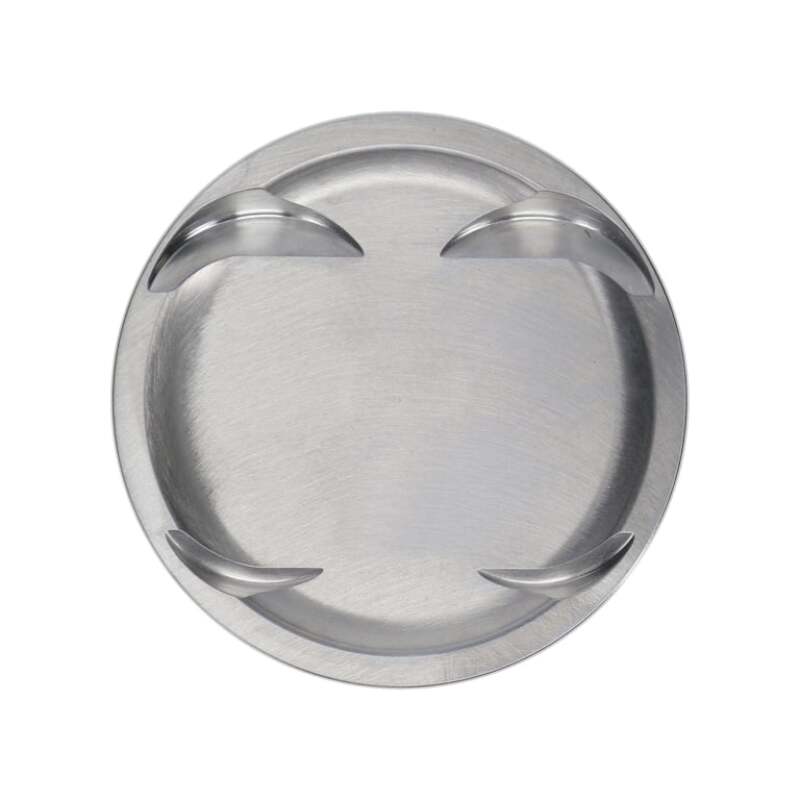

• Dish-type piston crown with -14 cc volume
• Pre-gapped performance ring package included
• High RPM and boost-capable design
• Press-fit or floating wrist pin option
• Optimized valve reliefs for multi-valve SOHC engines
• Engineered for stability under load with precision skirt profile

Specifications

• Bore: 75.00 mm
• Stroke: 90.00 mm
• Compression Height: 29.15 mm
• Piston Volume (Dish): -14 cc
• Compression Ratio: ~8.5:1
• Wrist Pin Diameter: 19 mm
• Ring Set: 1.0 mm / 1.2 mm / 2.8 mm
• Piston Weight: ~222 g
• Deck Clearance: ~0.84+ mm

Included Components

• 4x forged pistons
• 4x wrist pins (19 mm, press-fit or floating)
• 4x piston rings (pre-gapped)
• Circlips / locks as required

Product Description

The Wiseco K543M75 piston kit is purpose-built for performance-focused builds of the 1996-2000 Honda Civic with the D16Y8 1.6L SOHC 16-valve engine. Crafted from high-strength 2618 forging, these pistons offer superior durability under high RPM and stress while maintaining a lightweight profile for responsive engine dynamics. The -14 cc dish design lowers the compression ratio, making it ideal for builds with mild to moderate boost or aggressive tuning.

Thanks to the ArmorGlide® skirt coating, friction is reduced, which improves longevity and helps reduce noise. The kit comes complete with a pre-gapped ring set and 19 mm wrist pins, enabling ease of installation without the need for extra machining. Whether you're building for street performance or a high-revving naturally aspirated setup, these Wiseco pistons bring race-grade strength and reliability to your Civic build.
