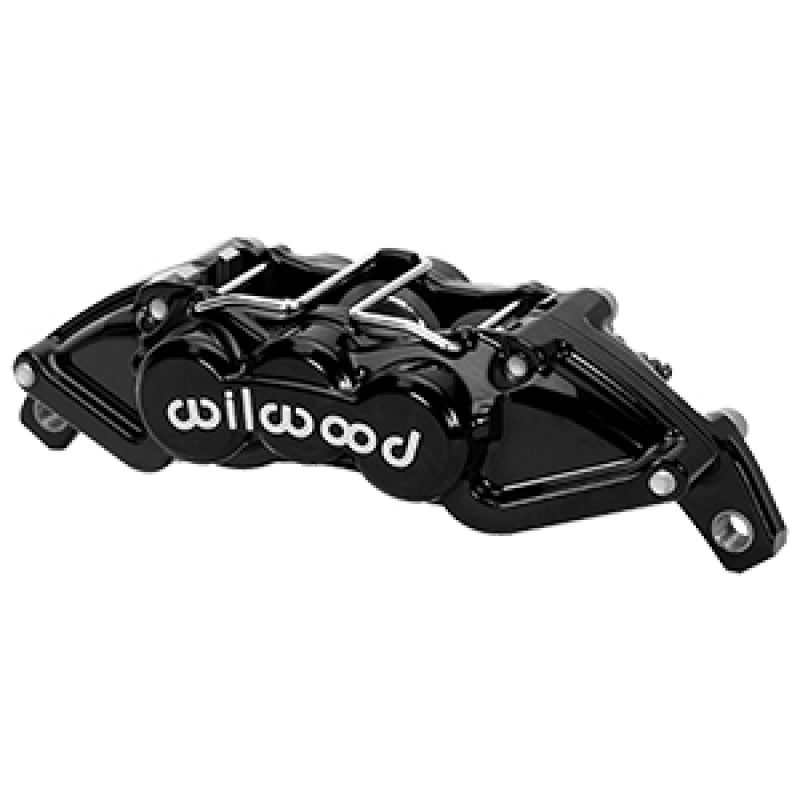

Wilwood 120-16567-BK UTV6 6-Piston Universal Lug Mount Caliper Black 1.12in 0.25

Vehicle Fitment

• Universal - Compatible with UTV, side-by-side, and off-road applications using 0.25" wide rotors up to 11.25" diameter with 8.75" centered lug mount
• Designed specifically for the UTV market - compatible with custom UTV big brake kit builds and OEM UTV brake system upgrades
• Compatible with powersports, agricultural, utility, and light industrial applications requiring a compact, high-performance 6-piston caliper

Fitment Notes

• Designed for 0.19"-0.25" wide rotors up to 11.25" in diameter - confirm rotor dimensions match your specific UTV or vehicle application
• 8.75" centered lug mount - confirm bracket or spindle uses this mounting center before ordering
• Universal mount orientation - can be positioned for right or left, front or rear applications
• Uses 7812-style brake pads - confirm pad compound selection for your application and duty cycle
• Sold individually - two required for a complete axle
• Brake pads and mounting brackets are not included
• Professional installation by a qualified brake technician is recommended

Features

• ASM-designed forged aluminum body - purpose-built for the UTV market with superior clamping efficiency and resistance to deflection under load
• Six-piston differential bore configuration (1.12"/1.12"/1.00") delivers progressive, balanced pad loading across the 6.36 sq. in. pad face
• Stainless steel pistons resist corrosion and retard heat transfer to brake fluid for consistent performance in demanding off-road conditions
• Anti-knock back springs further enhance pedal feel by maintaining piston contact during rough terrain operation
• Compact and lightweight at just 3.2 lbs. - maximizes performance without adding unnecessary unsprung weight to UTV applications
• Internal fluid ports eliminate external crossover tubes for a cleaner installation and reduced failure points
• Black high-temp, brake fluid-resistant powder coat finish

Specifications

• Series: UTV6
• Piston Quantity: 6
• Piston Bore Sizes: 1.12" / 1.12" / 1.00" (differential bore)
• Piston Area: 2.77 sq. in.
• Piston Material: Stainless Steel
• Compatible Rotor Width: 0.19" - 0.25"
• Maximum Rotor Diameter: 11.25"
• Pad Area: 6.36 sq. in.
• Pad Volume: 2.1 cu. in.
• Pad Type: 7812
• Mounting: 8.75" Centered Lug Mount
• Mount Orientation: Universal
• Body Material: Forged Aluminum
• Weight: 3.2 lbs.
• Finish: Black Powder Coat (High-Temp, Brake Fluid Resistant)
• Dust Boot: No
• Parking Brake Provision: No
• Brake Pads Included: No
• Brackets Included: No
• Quantity: Sold Individually

Included Components

• 1x Wilwood UTV6 Universal Lug Mount 6-Piston Caliper - Black (120-16567-BK)
• Brake line fittings

Product Description

The Wilwood 120-16567-BK is a UTV6 universal lug mount 6-piston forged aluminum caliper in black powder coat, designed specifically for the demanding requirements of UTV, side-by-side, and off-road applications. The ASM-generated body design combines forged construction with a differential bore piston configuration (1.12"/1.12"/1.00") to deliver progressive, balanced pad loading across the full 6.36 sq. in. pad face - increasing braking force and improving feel compared to conventional single-bore designs.

At just 3.2 lbs., the UTV6 is compact and lightweight enough to minimize unsprung weight in UTV applications without compromising stopping power. Stainless steel pistons with anti-knock back springs maintain consistent pedal feel across rough terrain where suspension articulation can cause piston retraction in conventional calipers. The universal lug mount allows flexible positioning for any front, rear, left, or right application on an 8.75" centered mount. Designed for thin 0.25" rotors with diameters up to 11.25", making it compatible with both OEM rotor dimensions and custom UTV big brake setups. Available in Type III anodized, black, and red powder coat finishes. Sold individually.
