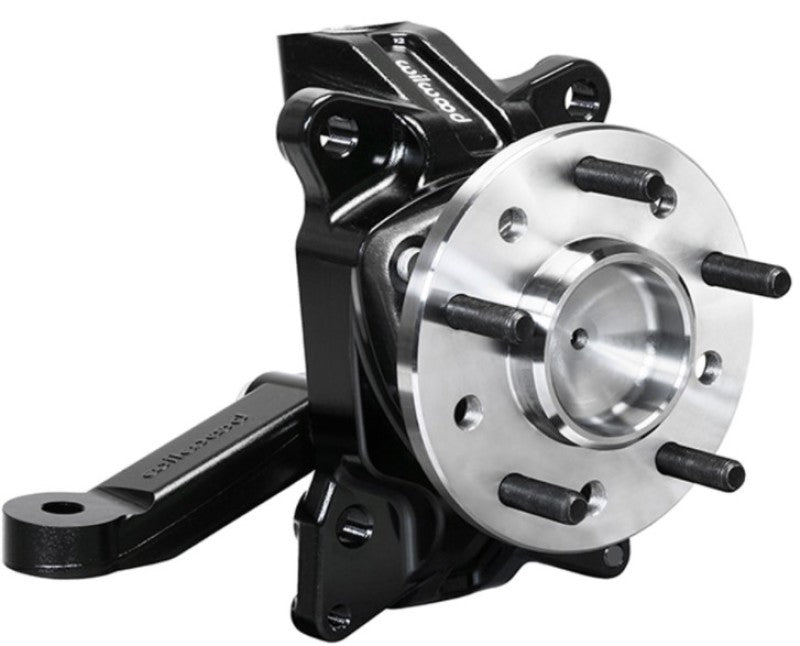

Wilwood 831-14201 ProSpindle Front Drop Kit for 1963-1970 C10/C15 Trucks

Vehicle Fitment

• 1963-1970 Chevrolet C10 2WD pickup
• 1963-1967 Chevrolet C10 Panel 2WD
• 1963-1970 Chevrolet C10 Suburban 2WD
• 1967-1970 GMC C15/C1500 2WD pickup
• 1967-1970 GMC C15/C1500 Suburban 2WD

Features

• Pair of forged aluminum ProSpindles with integrated modular bearing hubs
• 2.50" drop for lowered stance without altering steering geometry
• Included left-hand and right-hand steering arms
• Integrated modular hub assemblies support 5x4.75" and 5x5.00" bolt patterns
• Direct caliper mounting bosses for radial brake brackets
• Black e-coat finish for corrosion resistance and long service life
• Designed for use with Wilwood disc brake kits (brake kit not included)
• Delivers strong, zero-flex platform for high-performance braking

Specifications

• Part Number: 831-14201 (Wilwood ProSpindle Kit)
• Spindle Drop: 2.50"
• Material: Forged aluminum with black e-coat
• Included Components: Pair of spindles, hubs, steering arms
• Wheel Stud Size: 1/2-20
• Bolt Patterns Supported: 5x4.75" and 5x5.00"
• Brake System Type: Disc (requires compatible Wilwood brake kit)
• Left/Right: Both sides included

Included Components

• 1x Left-hand ProSpindle with hub and steering arm
• 1x Right-hand ProSpindle with hub and steering arm

Product Description

The Wilwood 831-14201 ProSpindle front drop kit is engineered specifically for classic GM 2WD trucks, including Chevrolet C10 and GMC C15 pickups and Suburbans from the 1960s. These precision-forged aluminum spindles lower the front of the vehicle by 2.50", delivering a more aggressive stance while maintaining proper steering geometry and handling balance. Each spindle includes an integrated modular bearing hub assembly supporting both 5x4.75" and 5x5.00" wheel bolt patterns, making them versatile for various wheel choices.

Designed to work with Wilwood disc brake kits (sold separately), the 831-14201 provides a strong, zero-flex platform for radial caliper brackets, helping maximize braking performance in street, custom, and performance builds. The included left-hand and right-hand steering arms and hubs simplify installation, while the durable black e-coat finish protects against corrosion. Note that early model trucks (1963-1970) may require updated (1973-1987) upper and lower ball joints for proper fit.
