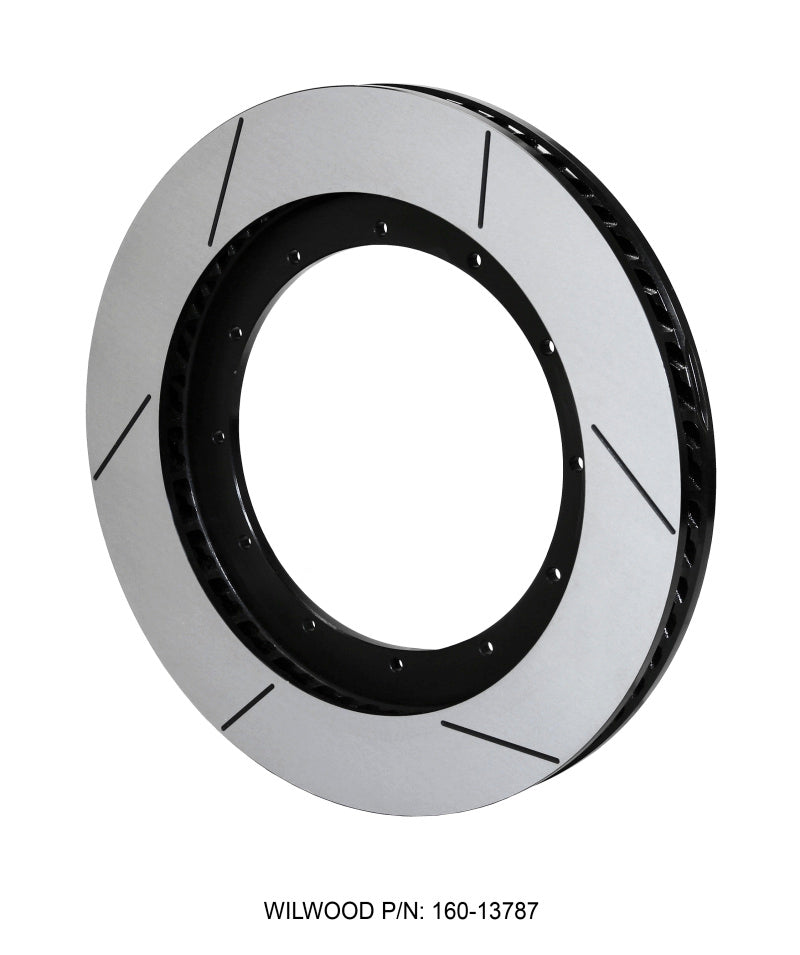

Wilwood 160-13787-GTB GT60 16in Rotor Right Side Black for TX6R Kit

Vehicle Fitment

• Universal - designed for use with Wilwood big brake kits and the 12-bolt on 9.75 in. hat/rotor mounting pattern; used specifically in Wilwood's TX6R Tactical Extreme Big Brake Kit (140-15381) for 2014-2018 Ram 2500/3500, and referenced in Wilwood's 4WD front brake kit for 2005-2012 Ford F-250/F-350

Fitment Notes

• Not for use with stock (OE) calipers - designed specifically for Wilwood aftermarket big brake kit applications, including the TX6R kit line.
• Sold individually (each), not as a pair - this is the right-hand (passenger side) rotor; the matching left-hand rotor is a separate part number (160-13788-GTB).
• Requires 20 in. or larger wheels for clearance in most Wilwood big brake kit applications using this rotor - confirm wheel clearance before ordering.
• Carries a California Proposition 65 warning.

Features

• GT60 Curved Vane Spec-37 design engineered for extreme-duty truck, SUV, and armored vehicle braking applications
• Manufactured from a proprietary iron alloy developed to withstand extreme temperatures with high resistance to distortion, warping, cracking, and wear
• Alloy formulation derived from technology used in Wilwood's extreme-duty military-spec rotors
• Asymmetrical GT Series face slot pattern for smooth, vibration-free performance at any speed
• Individually dynamic balanced
• Black E-Coat finish (GTB designation) for added corrosion resistance in severe-duty and off-road use

Specifications

• Series: GT60 Curved Vane, Spec-37 alloy
• Diameter: 16.00 in.
• Thickness: 1.50 in.
• Bolt Pattern: 12-bolt on 9.75 in. bolt circle
• Rotor Side: Right Hand (Passenger Side)
• Material: Proprietary iron alloy
• Finish: Black E-Coat
• Rotor Construction: Vented, directional vane
• For Use with Stock Calipers: No
• Sold As: Each (single rotor)

Included Components

• 1x GT60 Curved Vane 16.00 in. Rotor (Right Hand)

Product Description

The Wilwood 160-13787-GTB is a right-hand (passenger side) GT60 Curved Vane Spec-37 rotor, built for the extreme duty demands of heavy trucks, SUVs, and armored vehicles running Wilwood's TX6R Tactical Extreme Big Brake Kit and similar big-brake applications. At 16.00 in. diameter and 1.50 in. thick, it's sized for high-heat, high-load braking well beyond stock capacity.

Machined from Wilwood's proprietary high-temperature iron alloy - derived from the same technology used in their military-spec rotors - this rotor resists distortion, warping, and cracking under sustained heavy use. The asymmetrical GT Series face slot pattern and individual dynamic balancing deliver smooth, vibration-free stopping at any speed, and the black E-Coat finish adds corrosion resistance for trucks that see off-road or severe-weather duty.

This rotor is sold individually as the right-hand side; the matching left-hand rotor (160-13788-GTB) is a separate part number, and both are required for a complete front axle set. It's a direct-fit replacement rotor for Wilwood's TX6R big brake kits used on platforms like the Ram 2500/3500 and Ford F-250/F-350, and requires 20 in. or larger wheels for clearance.
