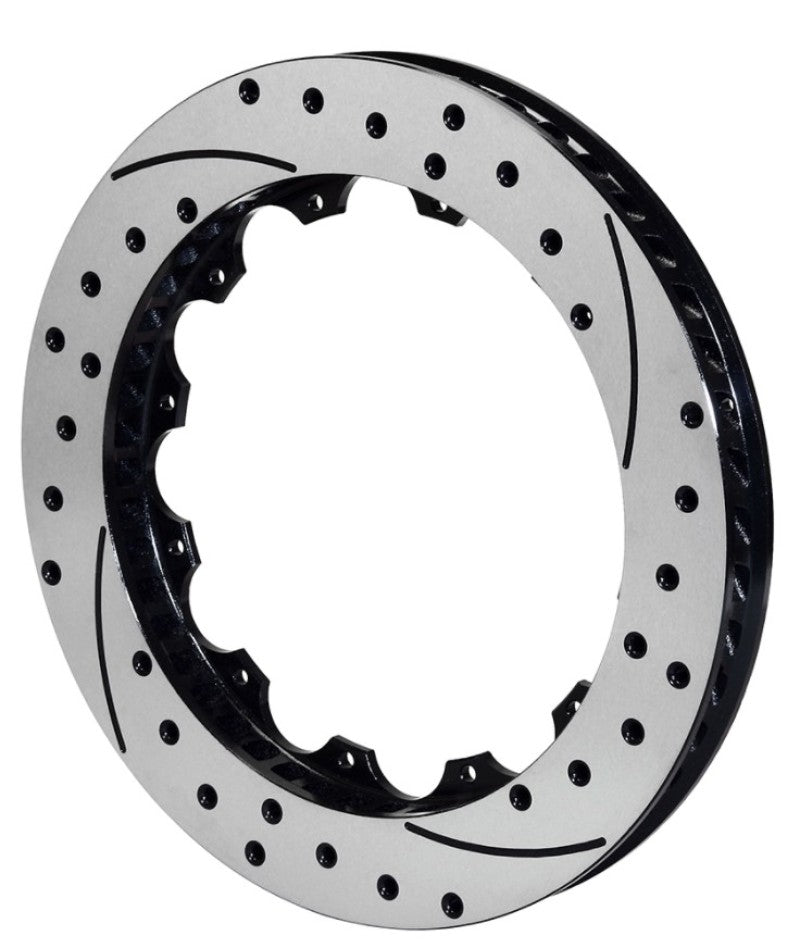

Wilwood 160-14636-BK SRP Drilled/Slotted 15in Rotor Left Hand Side

Vehicle Fitment

• Universal - for custom big brake builds; fitment determined by bolt pattern and caliper, not vehicle

Fitment Notes

• Left/driver side only - order the matching right-hand rotor (160-14635-BK) for a complete axle set
• 12-bolt x 8.75" bolt circle

Features

• Directional cross-drilled and slotted pattern improves brake response across light to heavy braking
• Venting and cleaning action reduces pad glaze and disperses heat and gas buildup
• Inhibits irregular pad compound buildup for smoother engagement
• GT curved vane design aids heat dissipation
• Premium grade Spec-37 heavy wall iron casting
• Reduced rotating and unsprung weight from material removal

Specifications

• Position: Left Hand
• Diameter: 15"
• Thickness: 1.25"
• Bolt pattern: 12 x 8.75"
• Vane type: Curved (72 CV)
• Material: Spec-37 Iron
• Finish: Black E-coat

Included Components

• 1x SRP Drilled/Slotted Performance Rotor (Left Hand, 15")

Product Description

The Wilwood 160-14636-BK is the left-hand match to Wilwood's 15" SRP performance rotor, built with the same directional cross-drilled and slotted face pattern that keeps braking consistent from street driving through heavy track sessions. The holes and slots vent heat and gas from the pad-to-rotor interface while resisting uneven pad compound buildup.

Cast from premium Spec-37 iron with a GT curved vane design, it pairs with the 160-14635-BK right-hand rotor to complete a matched big brake axle set, shedding some rotating weight along the way compared to a solid rotor.
