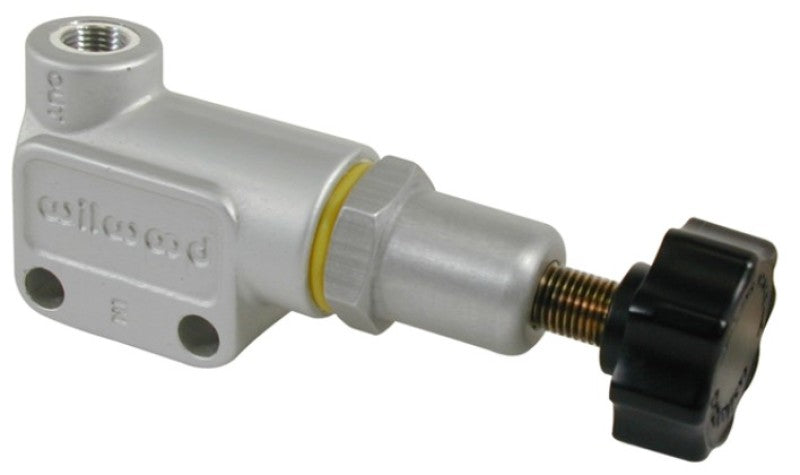

Wilwood 260-12627 Adjustable Brake Proportioning Valve M10x1 Bubble Flare

Vehicle Fitment

• Universal fit for custom brake systems using M10x1 bubble flare connections

Features

• Adjustable pressure range from 100 to 1,000 PSI
• Reduces rear brake line pressure by up to 57%
• Knob-style adjustment with fine thread tuning for precise control
• Compact forged billet aluminum construction
• Clear anodized finish for corrosion resistance
• Weighs only 5.2 ounces
• Two 0.25" side mounting holes spaced 1.00" apart
• Designed for use with M10x1 bubble flare brake lines

Specifications

• Brand: Wilwood
• Part Number: 260-12627
• UPC: 889545067040
• Material: Aluminum / Steel
• Finish: Clear Anodize
• Pressure Adjustment Range: 100-1,000 PSI
• Maximum Pressure Reduction: 57%
• Mounting: Two 0.25" side mounting holes spaced 1.00" apart
• Weight: 5.2 oz
• Inlet/Outlet Ports: M10x1 bubble flare

Included Components

• 1x Wilwood 260-12627 Adjustable Brake Proportioning Valve

Product Description

The Wilwood 260-12627 Adjustable Brake Proportioning Valve is engineered to provide precise control over your vehicle's braking balance. Its adjustable pressure range from 100 to 1,000 PSI allows for fine-tuning of the rear brake line pressure, reducing it by up to 57% to optimize braking performance. The knob-style adjustment with fine thread tuning ensures precise control, making it ideal for custom brake systems.

Constructed from compact forged billet aluminum and finished with a clear anodize for corrosion resistance, this valve is both lightweight and durable, weighing only 5.2 ounces. It features two 0.25" side mounting holes spaced 1.00" apart for easy installation. Designed for use with M10x1 bubble flare brake lines, the Wilwood 260-12627 is a versatile solution for enthusiasts seeking to enhance their braking system's performance.
