Wilwood 140-9803-D 12.88in. Drilled Front Big Brake Kit, 1964-1972 GM A/F/X

Vehicle Fitment

• 1964-1972 GM A-Body, F-Body, and X-Body vehicles (Buick, Chevrolet, Oldsmobile, Pontiac) - including Camaro (1967-1969), Nova/Chevy II (1964-1972), Chevelle/El Camino (1964-1972), Skylark, Special, Gran Sport, Sportwagon, and Apollo

Fitment Notes

• Compatible with drop spindles, factory disc brake spindles, and factory drum brake spindles - confirm your specific spindle type before ordering
• Wilwood also lists this kit as compatible with certain Ford, Mercury, GMC, Heidts, and Ridetech applications via matching aftermarket spindle setups; call Wilwood Tech Support to confirm fitment for non-GM builds
• Requires 17 in. or larger wheels; hub offset is +0.38 in., which will move the wheels outward from the fender by this amount on each side - check the wheel clearance diagram before ordering
• Front kit only - does not include rear rotors, master cylinder, or brake booster
• Brake lines are not included; a separate front flexline kit (Wilwood 220-7056) is required for installation
• Radial-mount caliper brackets can be installed on either the front or rear side of the spindle depending on your application's steering arm clearance

Features

• Forged Narrow Superlite 6R six-piston calipers deliver serious braking power with a durable, efficient body design
• Radial mounting for precise caliper alignment over the rotor
• 12.88 in. SRP drilled and slotted rotors in Spec-37 iron with a black electro coat finish
• Rotors are dynamically balanced for smooth, vibration-free performance
• Engineered for traditional non-ABS spindles on American muscle cars and vintage rods
• Full compatibility with OE master cylinder output where applicable
• Available in multiple caliper finishes and rotor styles to match your build's look

Specifications

• Caliper Type: Forged Narrow Superlite 6R, Radial Mount
• Caliper Finish: Black Powder Coat
• Piston Count: 6 (Differential Bore: 1.62 in., 1.12 in., 1.12 in.)
• Piston Material: Stainless Steel
• Brake Pad Compound: BP-10
• Rotor Diameter: 12.88 in.
• Rotor Width: 1.10 in.
• Rotor Style: SRP Drilled & Slotted, Black Electro Coat
• Rotor Material: Spec-37 Iron
• Hub Offset: +0.38 in.
• Minimum Wheel Diameter: 17 in.
• Position: Front Axle

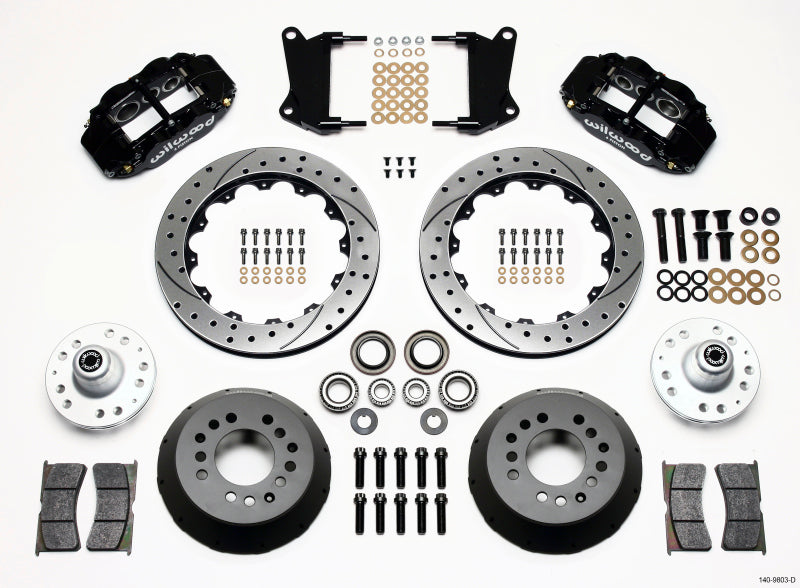

Included Components

• 2x Forged Narrow Superlite 6R Caliper (LH/RH), Black Powder Coat
• 2x SRP Drilled & Slotted Rotor (LH/RH), 12.88 in.
• 2x Big Brake Hat, Flared Bell, Aluminum
• 2x Hub, Hat Mount, Aluminum
• BP-10 Brake Pads
• Caliper Mounting Hardware, O-Ring Kit, Bridge Bolt Kit, Wear Plates
• Hat and Hub Bolt Kits

Product Description

The Wilwood 140-9803-D is a Forged Narrow Superlite 6R big brake front kit built for 1964-1972 GM A, F, and X-Body vehicles, including the Camaro, Nova, Chevelle, El Camino, and their Buick, Oldsmobile, and Pontiac counterparts. It pairs six-piston Forged Narrow Superlite 6R calipers, finished in black powder coat, with 12.88-inch SRP drilled and slotted rotors for a serious upgrade in braking power and curb appeal over the factory setup.

The radial-mount calipers use a differential-bore, six-piston design for even pad wear and consistent clamping force, backed by BP-10 compound pads suited to street and dual-purpose track use. Rotors are cast from Spec-37 iron, finished in black electro coat, and dynamically balanced for smooth performance. An aluminum hat-mount hub and flared-bell hat complete the rotating assembly, giving the kit a finished, application-specific look rather than a generic bolt-on appearance.

This is a hub-based front kit designed for traditional non-ABS spindles - drop spindles, factory disc spindles, or factory drum spindles, depending on your specific application. It requires 17-inch or larger wheels due to the big-brake rotor size, and carries a +0.38 inch hub offset that will push the wheels outward slightly on each side, so checking wheel clearance ahead of time is worthwhile. Keep in mind this is a front-only kit: it doesn't include rear rotors, a master cylinder, or brake lines, so you'll need to add a compatible front flexline kit (such as Wilwood 220-7056) to complete the installation.
