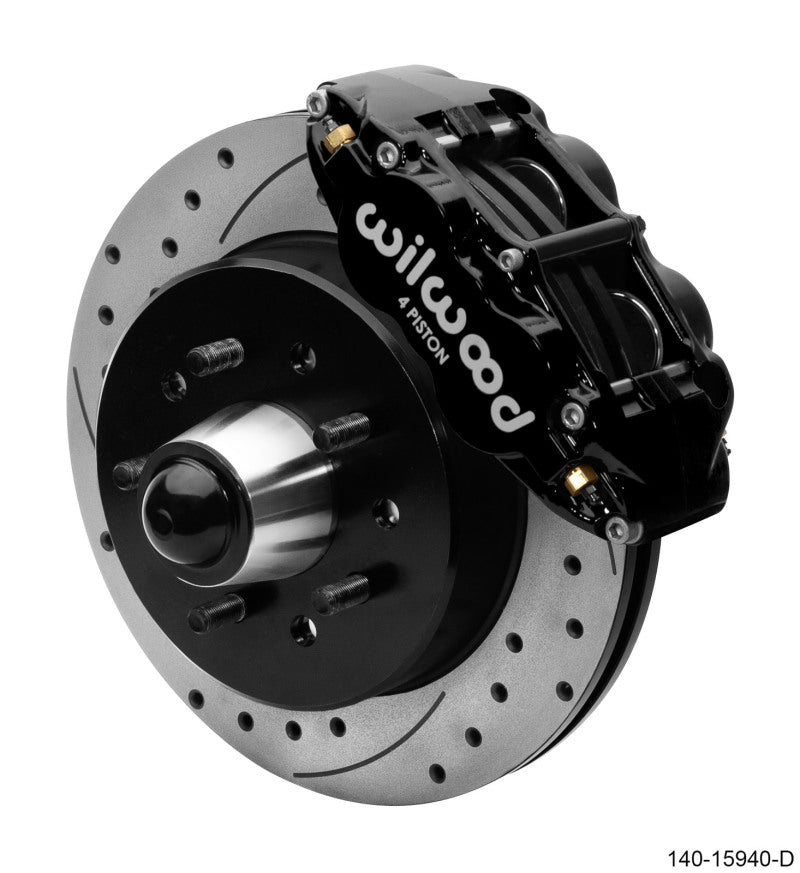

Wilwood 140-15940-D Narrow Superlite 6R Front Brake Kit for 63-87 C10

Vehicle Fitment

• 1963-1987 Chevy C10/C15 Pickup Trucks

Fitment Notes

• Requires Wilwood iron ProSpindle for installation - not a direct bolt-on to factory spindles
• Requires 17" or larger wheels for clearance
• 5-lug bolt pattern

Features

• Forged narrow six-piston calipers deliver strong braking with reduced weight
• Slotted and cross-drilled 12.19" rotor improves heat dissipation and pad bite
• Fully compatible with OE master cylinder output
• Application-specific engineering for a simpler, cleaner installation
• Black powdercoated finish resists corrosion and wear
• Enhances tire and suspension upgrades on custom show and street/track builds

Specifications

• Position: Front
• Rotor diameter: 12.19"
• Rotor style: Slotted and cross-drilled (SRP)
• Caliper: Six-piston, forged narrow, Black
• Spindle requirement: Wilwood iron ProSpindle
• Bolt pattern: 5-lug

Included Components

• 2x Forged Narrow Superlite 6R Calipers (Black)
• 2x Slotted/Cross-Drilled Rotors with Hats (12.19")
• Mounting Hardware

Product Description

The Wilwood 140-15940-D brings six-piston Superlite braking to 1963-1987 Chevy C10 and C15 trucks, built around Wilwood's iron ProSpindle for a purpose-engineered fit rather than a generic bolt-on. The forged narrow caliper body keeps weight in check while the 12.19" slotted and cross-drilled rotor handles heat well under repeated hard stops.

Because the kit is application-specific and requires the matching ProSpindle, installation is more involved than a simple caliper swap, but the payoff is a clean, properly engineered big brake setup that's fully compatible with the factory master cylinder. Just make sure your wheels clear 17" and larger before committing to this kit.
