Wilwood 140-12569 D154 Rear Park Brake Kit for 1971-87 Chevy/GMC C10/Suburban

Regular price: $1,022.00
Regular price: ~~$1,144.64~~
Sale price: $1,022.00

Shipping calculated at checkout.

In Stock: 16

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:WIL140-12569

MPN: 140-12569

UPC: 889545016918

Weight: 55.1 lb

Inventory: 16

Type: Big Brake Kits

Vehicle Fitment

1971-1987 Chevrolet/GMC C10 Pickup, C15 Pickup (5-lug, 2.42" axle flange offset)
1971-1991 Chevrolet Blazer/Suburban, GMC Jimmy/Suburban/Vans (if axle flange matches 2.42" and 5-lug)
Fitment confirmed through 1987 for C10; 1991 for Blazer/Suburban. 1992+ requires separate verification.

Features

Forged D154 two-piston floating calipers with integrated parking brake
Built-in high-friction internal park shoe system
12.19" one-piece vented drum/rotor with drilled & slotted option
Power-coat finish (black or red)
Compatible with OE spindles using standard 5x4.5" or 5x4.75" bolt pattern
Optimized pad compound (BP-10) for street/strip use
Hidden hardware for clean visual install
Recommended for 16" or larger wheels for clearance

Specifications

Rotor diameter: 12.19" x 0.81" thickness
Axle flange offset: 2.42"
Total piston area: ≈1.98 sq in
Pad area: ≈8.70 sq in; pad volume ≈2.90 cu in
Bolt pattern: 5 x 4.5" or 5 x 4.75"
Caliper position: rear only
Caliper finish: black or red powder coat (model-specific)

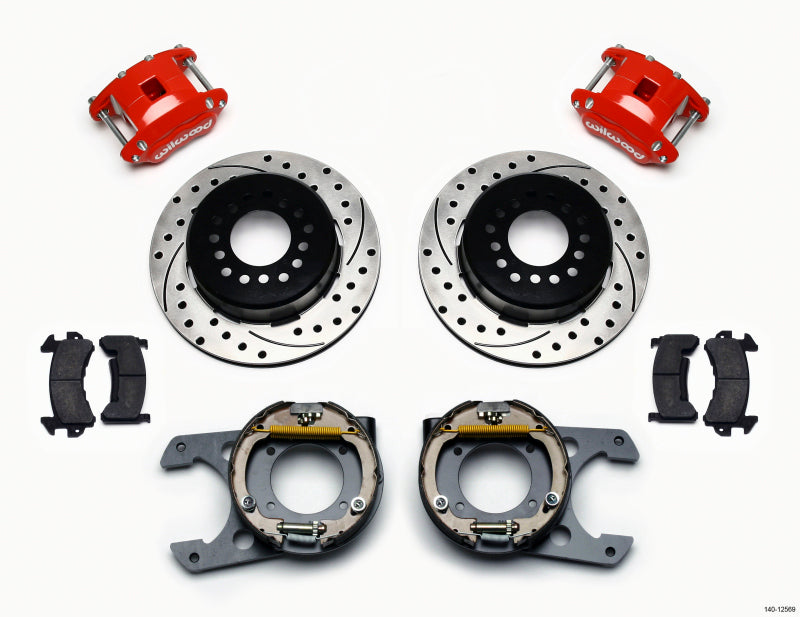

Included Components

2x rear calipers with integrated parking shoe
2x rotor/disc-drum assemblies (12.19" vented)
Mounting hardware kit (bolts, shims, brackets as needed)
Brake pads installed (BP-10 compound)

Product Description

The Wilwood 140-12569 D154 Pro-Series Rear Park Brake Kit provides a high-performance disc conversion with integrated parking brake - ideal for vintage GM pickups and SUVs. Featuring forged dual-piston floating calipers and one-piece 12.19" rotor/drum discs, this kit offers strong braking and reliable mechanical parking holding power.

Designed to replace rear drums on Chevy/GMC C10 pickups (1971-1987) and compatible Blazer, Suburban, Jimmy, and Vans through 1991 (with matched 2.42" flange offset), this kit requires minimum 16" wheels. It bolts directly to OE spindles using the standard 5x4.5" or 5x4.75" lug pattern. Note: wheel clearance and flange measurement must match; not all 16" rims fit.
