Wilwood 261-14963-BK Compact Tandem Master Cylinder Kit w/ Valve

Vehicle Fitment

• Universal - designed to fit a wide variety of brake master cylinder mounting patterns in custom and OE replacement applications

Features

• Compact tandem chamber master cylinder with integrated combination proportioning valve
• 1.00" bore size for balanced fluid volume and pressure
• Black E-coat finish for corrosion resistance and durability
• Left-hand mounting bracket included for flexible installation
• Precision-bent stainless steel fluid tubes with pre-installed tube nuts
• Combination proportioning block maintains full isolation between front and rear circuits
• Slotted master cylinder flange for bolt-on installation to many OE patterns
• Compatible with manual or power-assisted brake systems

Specifications

• Part Number: 261-14963-BK (Wilwood Compact Tandem Master Cylinder Kit)
• Master Cylinder Bore: 1.00"
• Stroke: ~1.10"
• Material: Aluminum body with black E-coated finish
• Reservoir Type: Integral dual chamber
• Outlet Ports: 3/8-24 IF or 1/2-20 IF (primary and secondary)
• Mounting Flange Center Range: ~3.22"-3.40"
• Overall Length: ~7.16" from flange to end

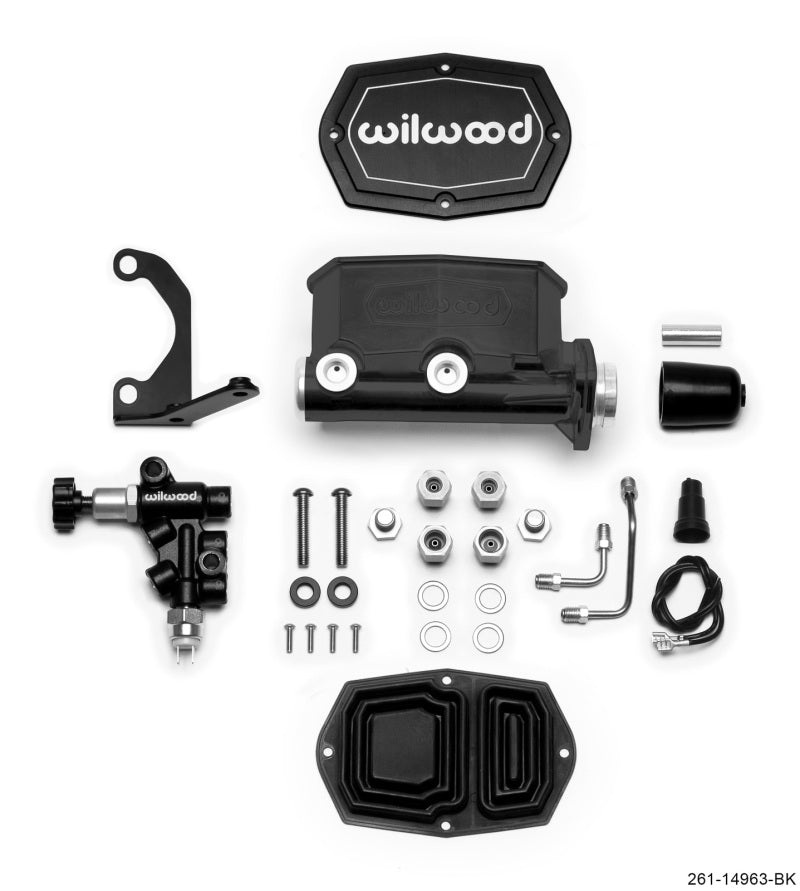

Included Components

• 1x Compact tandem master cylinder (1.00" bore)
• 1x Combination proportioning valve with left-hand bracket
• Stainless steel fluid tubes
• All mounting hardware and fittings

Product Description

The Wilwood 261-14963-BK Compact Tandem Master Cylinder Kit is a universal high-performance brake master cylinder solution that combines a compact tandem chamber body with a built-in combination proportioning valve and mounting bracket. The 1.00" bore and integrated dual chamber reservoir help deliver strong hydraulic pressure and balanced fluid volume for a variety of brake system applications. Its black E-coat finish protects against corrosion while giving a professional performance look.

This comprehensive kit includes precision-bent stainless steel fluid tubes with pre-installed nuts, a left-hand side mounting bracket, and all necessary hardware for installation. Designed with a slotted flange mounting that fits many OE master cylinder bolt patterns (such as Chrysler, Corvette, GM, and Ford Mustang dimensions), it's compatible with both manual and power brake systems. The combination proportioning block simplifies pressure control between front and rear circuits, making brake setup easier in custom and retrofit applications.
