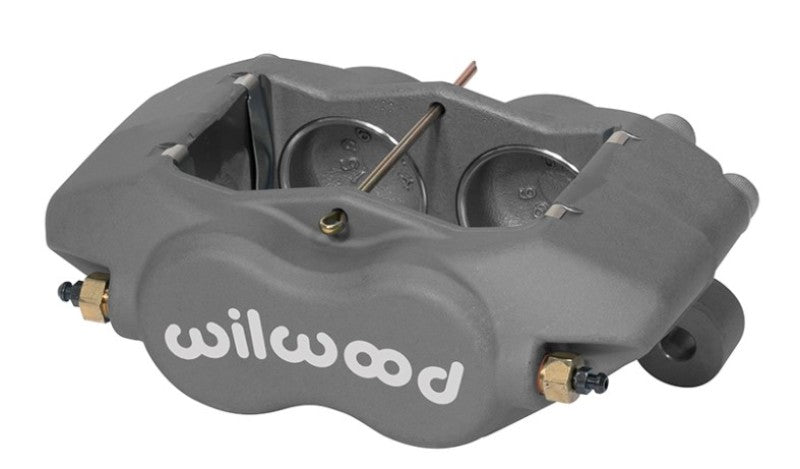

Wilwood 120-13840 Forged Dynalite 4-Piston Brake Caliper 1.38in Universal

Vehicle Fitment

• Universal racing and custom brake applications (Front or Rear)
• Compatible with vehicles using custom brake brackets and 1.00 in rotor thickness

Features

• Forged Dynalite Internal 4-piston performance brake caliper
• Stress-flow forged aluminum body for increased strength and reduced flex
• Spacer-less bridge design increases rigidity and caliper stiffness
• Four stainless steel pistons provide balanced clamping force
• Type III hard anodized finish for improved corrosion and wear resistance
• Internal fluid passage design eliminates external crossover tubes
• Four-corner bleed screws allow installation in multiple mounting positions
• SRS stainless steel bridge wear plates reduce pad gouging and vibration

Specifications

• Caliper Series: Forged Dynalite Internal (FDLI)
• Position: Universal Front or Rear
• Piston Count: 4
• Piston Diameter: 1.38 in
• Total Piston Area: 3.00 in²
• Rotor Thickness Compatibility: 1.00 in
• Maximum Rotor Diameter: 13.06 in
• Mount Type: Lug Mount
• Mounting Center Distance: 5.25 in
• Brake Pad Type: Wilwood 7112
• Inlet Port Thread: 1/8-27 NPT
• Material: Forged Aluminum
• Piston Material: Stainless Steel
• Finish: Type III Hard Anodized
• Dust Boots: No
• Weight: Approx. 3.4-3.6 lbs

Included Components

• 1x Wilwood 120-13840 Forged Dynalite Internal Brake Caliper

Product Description

The Wilwood 120-13840 Forged Dynalite Internal (FDLI) brake caliper is a lightweight, high-strength four-piston caliper engineered for racing, high-performance street, and custom brake system applications. Built using Wilwood's stress-flow forged aluminum process, the caliper body features improved grain structure and structural rigidity compared to traditional billet designs. This manufacturing method significantly reduces deflection under heavy braking loads and improves overall clamping efficiency.

This FDLI caliper features four 1.38-inch stainless steel pistons that deliver consistent pad pressure across the braking surface while resisting heat transfer and corrosion. The spacer-less bridge design improves stiffness and allows greater wheel clearance, making it a popular choice for drag racing, road racing, street performance builds, and custom brake conversions. With compatibility for 1.00-inch thick rotors and a 5.25-inch lug mount spacing, the caliper can be used in a wide variety of aftermarket brake kits and custom setups.

Because this caliper is designed for universal motorsports applications, installation typically requires vehicle-specific brackets, rotors, and pads. It is commonly used in racing vehicles, street rods, track cars, and custom brake upgrades where high clamping force, lightweight construction, and reliable performance are required.
