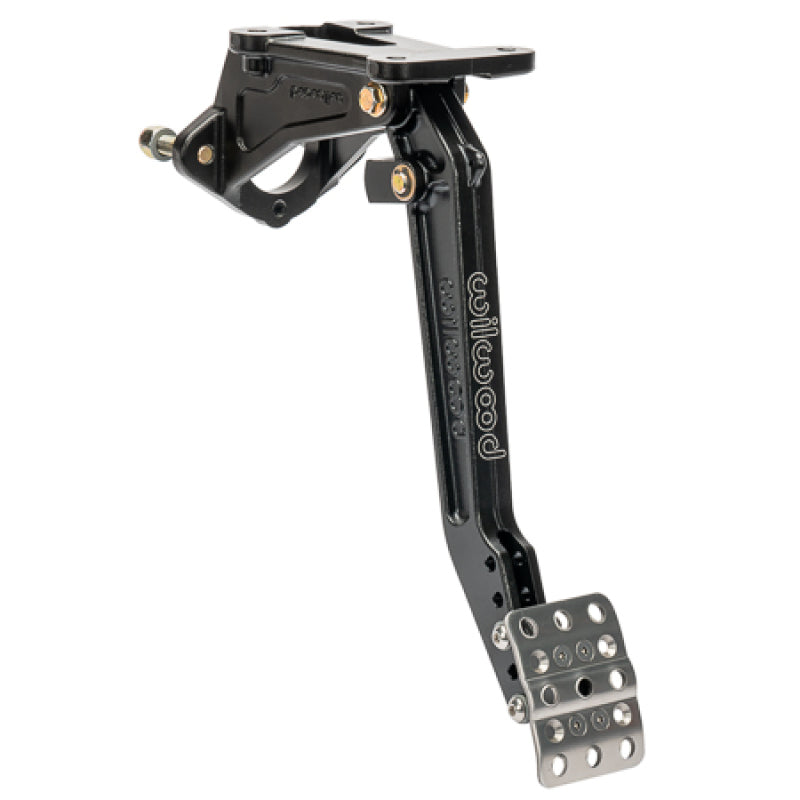

Wilwood 340-17699 Adjustable Swing Mount Brake Pedal 6.25-7:1 Ratio

Vehicle Fitment

• Universal - for custom pedal box and brake system builds, not vehicle-specific

Fitment Notes

• Accepts any Wilwood vertical-mount flange, single-outlet master cylinder - master cylinder not included, sold separately by style and bore size

Features

• Adjustable pedal ratio from 6.25:1 to 7.00:1 to suit application needs
• Balance bar with pin/clevis pushrod attachment for precise brake bias adjustment
• Smooth, bind-free operation through the full range of pedal travel
• Adjustable pedal length lets you fine-tune ergonomics for the driver
• Aluminum construction with Black E-Coat finish resists corrosion
• Includes all necessary mounting hardware

Specifications

• Mount type: Swing mount
• Pedal ratio: 6.25:1-7.00:1 (adjustable)
• Material: Aluminum
• Finish: Black E-Coat
• Master cylinder: Not included; accepts Wilwood vertical-mount flange, single-outlet type

Included Components

• 1x Swing Mount Pedal Assembly
• Balance Bar with Pin/Clevis Pushrod Attachment
• Mounting Hardware

Product Description

The Wilwood 340-17699 is an adjustable swing mount brake pedal assembly designed to accommodate popular tandem master cylinder setups in custom brake system builds. The included balance bar and pin/clevis pushrod attachment let you dial in precise brake bias, while the adjustable pedal ratio and length give flexibility to match the assembly to your specific pedal box layout.

Built from aluminum with a Black E-Coat finish, it's designed to accept any Wilwood vertical-mount flange, single-outlet master cylinder - ordered separately to match your bore size and style. It's a solid foundation for anyone building a custom brake pedal setup that needs smooth, bind-free operation and real adjustability.
