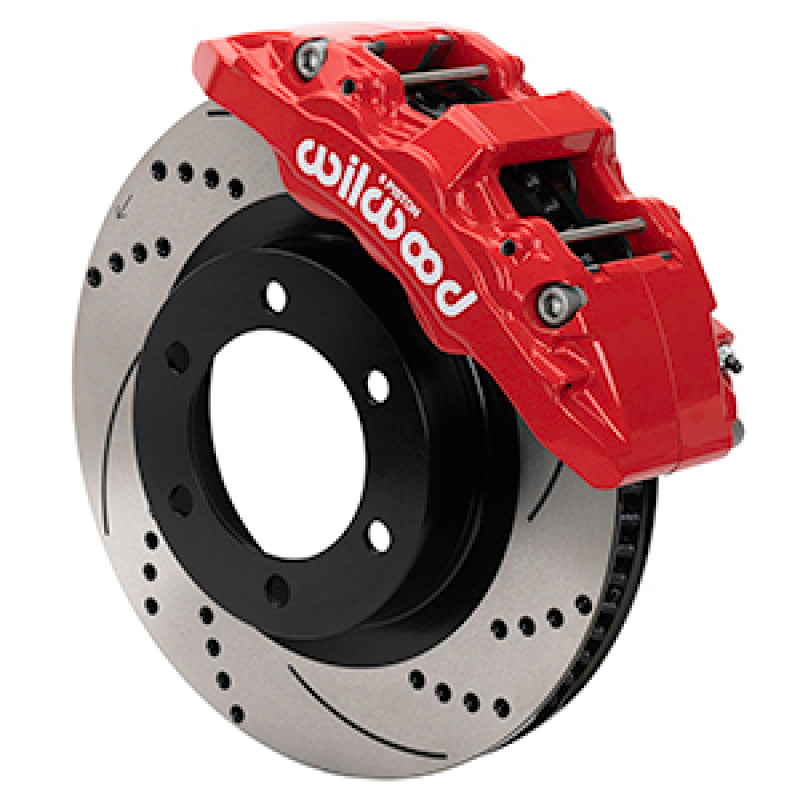

Wilwood 140-17512-DR AERO6-DM Front Brake Kit for 2021-2024 Ford Bronco 2.3L

Vehicle Fitment

• 2021-2024 Ford Bronco Base (2.3L EcoBoost, Vacuum Booster Only)
• 2021-2024 Ford Bronco Big Bend (2.3L EcoBoost, Vacuum Booster Only)
• 2021-2024 Ford Bronco Black Diamond (2.3L EcoBoost, Vacuum Booster Only)
• 2021-2024 Ford Bronco Badlands (2.3L EcoBoost, Vacuum Booster Only)
• 2021-2024 Ford Bronco Outer Banks (2.3L EcoBoost, Vacuum Booster Only)
• 2021-2024 Ford Bronco Wildtrak (2.3L EcoBoost, Vacuum Booster Only)
• 2021 Ford Bronco First Edition (2.3L EcoBoost, Vacuum Booster Only)
• 2024 Ford Bronco Heritage Edition (2.3L EcoBoost, Vacuum Booster Only)
• 2024 Ford Bronco Heritage Limited Edition (2.3L EcoBoost, Vacuum Booster Only)

Fitment Notes

• This kit is compatible with the 2.3L EcoBoost Bronco equipped with a vacuum brake booster only.
• Does NOT fit 2.7L EcoBoost Bronco models equipped with an e-booster (electronic brake booster) - the e-booster system is incompatible with this kit.
• Does NOT fit Ford Bronco Raptor.
• Designed to fit OE factory disc spindles only. Contact Wilwood at (805) 388-1188 if using non-OE spindles.
• Minimum wheel diameter required: 17". Refer to Wilwood's wheel clearance diagram (DS1565) to confirm fitment with your specific wheel before purchase.
• Braided stainless flex lines are included (220-17599).
• Kit may fit additional vehicles or model years - contact Wilwood Sales/Tech Support at (805) 388-1188 to confirm.

Features

• AERODM six-piston Direct-Mount calipers are engineered specifically for large-diameter rotor, high-capacity braking on heavy trucks and SUVs - delivering significantly greater clamping force than OE for towing, off-road, and performance driving.
• 13.38" SRP Drilled and Slotted one-piece vented iron rotor and hat assemblies with 48 straight vanes provide superior heat dissipation and consistent bite under sustained high-heat conditions.
• Dynamically balanced rotors minimize vibration for smooth, stable braking on and off road.
• Direct-Mount (DM) lug design bolts the caliper directly to the rotor hat for a clean, compact installation without a separate caliper bracket.
• Fully compatible with OE master cylinder output and factory ABS function - no brake system modifications required on correctly configured 2.3L vacuum booster builds.
• Red powder coat caliper finish delivers corrosion resistance and show-quality appearance behind larger wheels.
• Stainless steel pistons resist heat and corrosion for long-term durability in demanding off-road and towing conditions.
• BP-22 high-friction brake pad compound is optimized for truck and SUV duty cycle, including towing and off-road use.

Specifications

• Position: Front (Left and Right)
• Caliper Type: AERODM (AERO6-DM) - Direct-Mount, Lug
• Caliper Finish: Red Powder Coat
• Caliper Part Numbers: LH 120-17295-RD / RH 120-17294-RD
• Piston Count: 6 per caliper | Piston Bores: 1.75" / 1.62" / 1.62" (stainless steel)
• Piston Area: 6.52 in²
• Brake Pad Plate: 6617 | Compound: BP-22 | Pad Area: 11.1 in² | Pad Volume: 5.2 in³
• Rotor Diameter: 13.38" | Rotor Width: 1.25"
• Rotor Style: SRP Drilled & Slotted | One-Piece Rotor & Hat | Vented | 48 Straight Vanes | Dynamically Balanced
• Rotor Material: Iron with Black Electro Coat
• Rotor Part Numbers: LH 160-17373-BK / RH 160-17372-BK
• Spindle Type: Factory Disc Spindle (2.3L Vacuum Booster Only)
• Mount Type: Direct-Mount Lug
• Minimum Wheel Diameter: 17"
• Brake Lines: Included (220-17599)
• UPC: 889545113914

Included Components

• 1x LH AERODM Caliper - Red Powder Coat (120-17295-RD)
• 1x RH AERODM Caliper - Red Powder Coat (120-17294-RD)
• 2x SRP Drilled & Slotted 13.38" One-Piece Vented Rotor & Hat Assemblies - Black Electro Coat, Dynamically Balanced (LH: 160-17373-BK / RH: 160-17372-BK)
• 1x Set 6617 BP-22 Brake Pads
• 1x Braided Stainless Flex Line Kit (220-17599)
• All required mounting hardware

Product Description

The Wilwood 140-17512-DR AERO6-DM Direct-Mount Truck Front Brake Kit is purpose-engineered for 2021-2024 Ford Bronco builds equipped with the 2.3L EcoBoost engine and vacuum brake booster. AERODM six-piston Direct-Mount calipers clamp over 13.38" SRP Drilled and Slotted dynamically balanced vented rotors - delivering big brake stopping power for off-road, towing, and performance driving that far exceeds the OE braking system while maintaining full compatibility with the factory ABS and master cylinder output.

The Direct-Mount lug design eliminates the need for a separate caliper bracket, keeping the installation clean and reducing component count. Braided stainless flex lines are included for a complete bolt-on installation. This kit is compatible with the 2.3L EcoBoost vacuum booster Bronco only - it is not compatible with the 2.7L EcoBoost e-booster system and does not fit the Bronco Raptor. Minimum wheel diameter is 17"; always verify clearance using Wilwood's DS1565 wheel clearance diagram before purchase.
