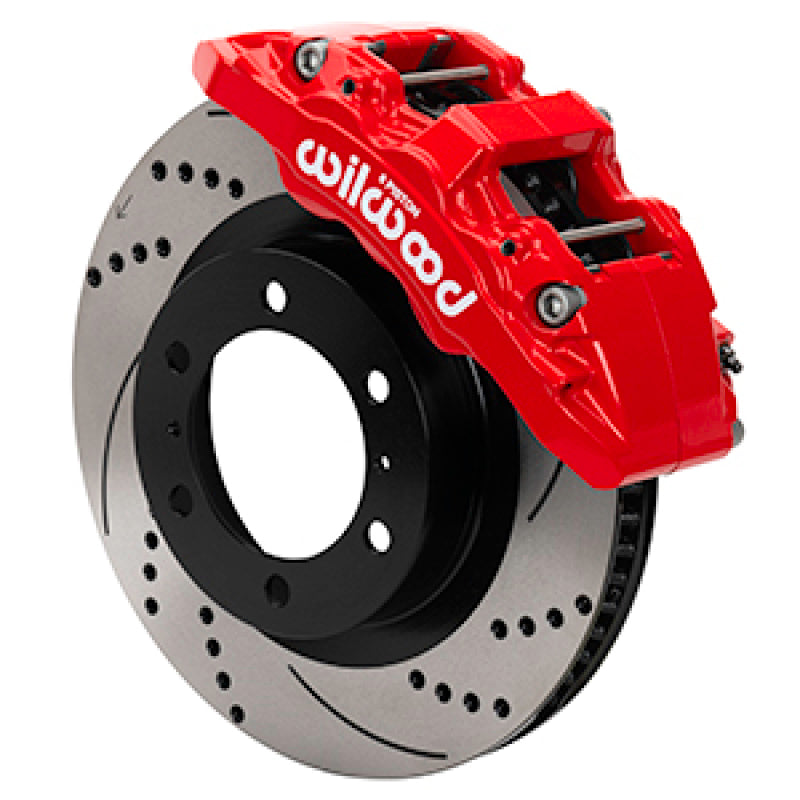

Wilwood 140-17511-DR AERO6-DM Big Brake Kit for 03-23 Tacoma/4Runner/FJ/GX 6-Lug

Vehicle Fitment

• 2003-2009 Lexus GX470 (4.7L V8)
• 2010-2014 Lexus GX460 (4.6L V8)
• 2003-2009 Toyota 4Runner (6-Lug)
• 2007-2014 Toyota FJ Cruiser
• 2005-2017 Toyota Tacoma (6-Lug, 2WD/4WD)
• 2018-2023 Toyota Tacoma (Base, SR, SR+, SR5, Limited, Nightshade, Trail, TRD Sport, TRD Off-Road, TRD Pro)

Fitment Notes

• Requires 6-lug wheel pattern (6x139.7mm bolt pattern)
• Does not fit 2024+ 4th generation Toyota Tacoma (N400 platform)
• Requires minimum 17-inch wheels - verify clearance with wheel clearance diagram
• Some dust shield trimming may be required for proper caliper fitment

Features

• Forged aluminum AERO6-DM six-piston calipers for maximum clamping force and lightweight performance
• Differential bore piston design with stainless steel pistons that resist corrosion and seizing
• 13.31-inch drilled and slotted rotors for superior heat dissipation and reduced brake fade
• Red powder coat caliper finish for aggressive custom appearance
• Direct-mount lug-style design for simplified installation without adapter brackets
• Fully compatible with OEM rear brakes, master cylinder, ABS, and vehicle computer systems
• 68-vane GT curved vane rotor design for enhanced cooling efficiency
• BP-Q high-performance brake pad compound for exceptional stopping power and low dust
• Black E-coat rotor finish provides corrosion resistance and professional appearance
• Dynamically balanced rotors for smooth, vibration-free braking performance

Specifications

• Caliper Type: AERO6-DM Six-Piston Direct-Mount, Lug Style
• Caliper Finish: Red Powder Coat
• Piston Configuration: Differential Bore (1.62", 1.38", 1.38")
• Total Piston Area: 5.40 square inches
• Rotor Diameter: 13.31 inches
• Rotor Thickness: 1.26 inches
• Rotor Style: Drilled and Slotted SRP Design
• Rotor Material: Premium long-grain carbon iron alloy
• Rotor Finish: Black Electro Coat
• Vane Count: 68 GT Curved Vanes
• Brake Pad Plate: 6617
• Pad Compound: BP-Q
• Pad Area: 11.1 square inches
• Minimum Wheel Diameter: 17 inches
• Position: Front Axle Only

Included Components

• 2x AERO6-DM Six-Piston Calipers (Left: 120-17432-RD, Right: 120-17431-RD)
• 2x 13.31-inch Drilled & Slotted Rotors (Left: 160-17119-BK, Right: 160-17118-BK)
• 1x Set of BP-Q Performance Brake Pads
• 1x Stainless Steel Braided Brake Line Kit with Fittings (220-14618)
• 2x Caliper Mounting Brackets
• 1x Complete Hardware Kit (bolts, washers, shims, pad retainers)

Product Description

The Wilwood 140-17511-DR AERO6-DM Direct-Mount Truck Front Brake Kit delivers professional-grade stopping power engineered specifically for Toyota and Lexus trucks and SUVs. Featuring forged aluminum six-piston calipers with a striking red powder coat finish, this kit provides substantial upgrades over factory braking systems for vehicles used in towing, off-roading, and daily driving with oversized wheels and tires. The differential bore piston design optimizes brake pad pressure distribution while the stainless steel pistons ensure long-term reliability without corrosion or seizing.

At the heart of this system are 13.31-inch drilled and slotted rotors manufactured from premium carbon iron alloy. The GT curved vane design with 68 internal vanes maximizes airflow for exceptional heat dissipation during sustained braking. Drilling and slotting further enhance cooling while evacuating gases and debris for consistent pedal feel. Each rotor is dynamically balanced and finished with a black electro coat for corrosion protection. The BP-Q brake pad compound delivers fade-resistant performance with minimal dust generation, making this kit ideal for both highway towing and technical off-road trails.

Installation is straightforward thanks to the direct-mount lug-style design that eliminates the need for complex adapter brackets. The kit includes stainless steel braided brake lines for improved pedal response and all necessary hardware for a complete bolt-on installation. Fully compatible with factory ABS, master cylinders, and brake computers, this system requires no additional modifications to your vehicle's electronic systems. Requires minimum 17-inch wheels and some dust shield trimming may be necessary depending on wheel design. This kit transforms your truck or SUV's braking performance while adding an aggressive custom appearance behind your wheels.
