Whiteline W73470 Rear Leaf Spring Shackle Bushing for 89-95 Toyota Pickup Tacoma

Vehicle Fitment

• 1989-1995 Toyota Pickup (N80/N90 - DX, SR5, One-Ton - 2.4L 22R-E I4, 3.0L 3VZ-E V6 - 2WD/4WD)
• 2001-2004 Toyota Tacoma (1st Gen - Regular Cab, Xtracab, PreRunner - 2.4L 2RZ-FE I4, 2.7L 3RZ-FE I4, 3.4L 5VZ-FE V6 - 2WD/4WD)

Fitment Notes

• Fitting position: Rear - Leaf Spring Shackle Bushings (all four shackle positions)
• 1 kit covers the complete vehicle - 12 bushings and 4 tubes are sufficient for all rear shackle positions on both sides
• Tacoma fitment applies to 2001-2004 model years only - the shackle design changed across the 1st gen Tacoma production run
• No wheel alignment required after installation
• Installation difficulty: Tricky - estimated install time 3 hours; proper tools recommended

Features

• Critical service item for any leaf-sprung vehicle - worn shackle bushings cause spring wander, clunking, and loss of rear suspension control
• Outstanding abrasion resistance - Whiteline's signature black compound outperforms OEM rubber under high-mileage, heavy-load, and off-road conditions
• High load-bearing capability engineered for 4WD trucks, towing, and heavy cargo carrying
• Resists oil, grease, ozone, and weathering - will not crack, rot, or collapse like factory rubber
• Increased tensile strength and flexibility maintain correct spring geometry under load
• Assembly grease included for correct installation and long-term bushing performance
• Complete kit - 12 bushings and 4 tubes cover all shackle positions for a full vehicle refresh
• Backed by Whiteline's Limited Lifetime Warranty

Specifications

• Part Number: W73470
• Fitting Position: Rear - Leaf Spring Shackle (all positions)
• Bushing Material: Synthetic Elastomer (Polyurethane)
• Kit Contents: 12 Shell Bushings, 4 Crush Tubes, Assembly Grease
• Kits Required Per Vehicle: 1
• Wheel Alignment Required: No
• Warranty: Limited Lifetime

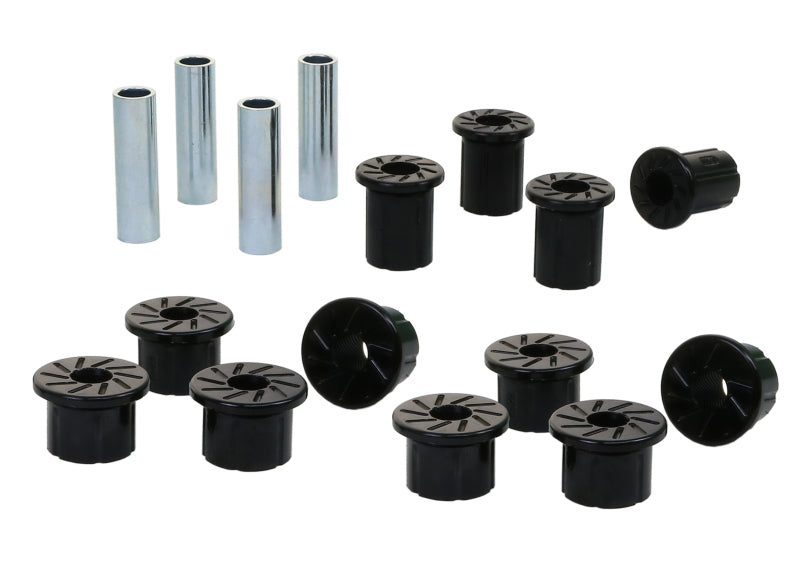

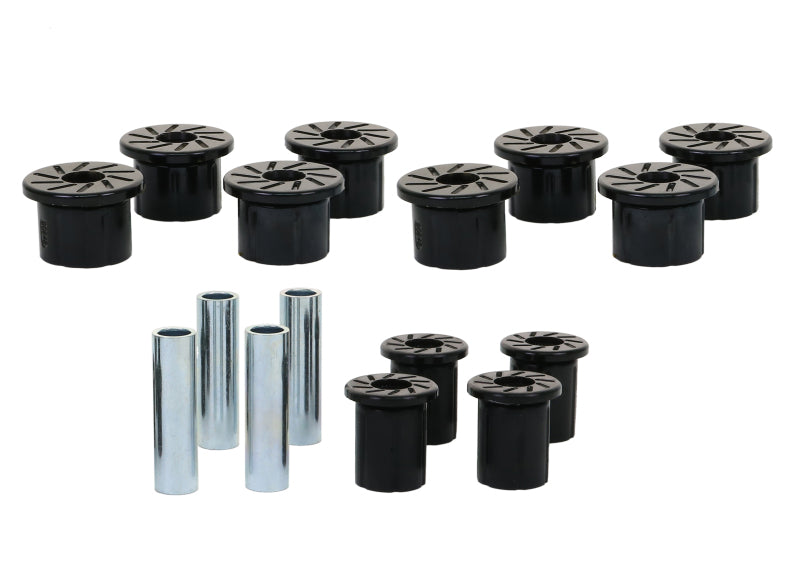

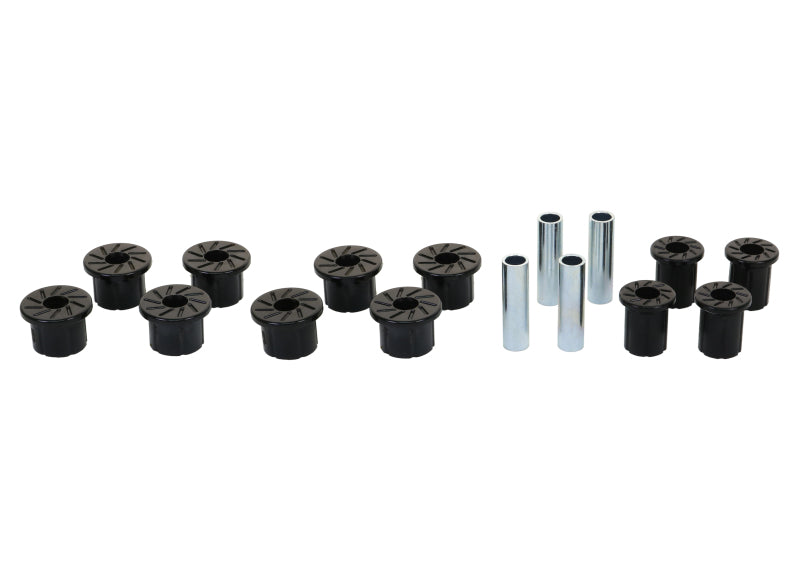

Included Components

• 12x Synthetic Elastomer Shell Bushings
• 4x Steel Crush Tubes
• 1x Assembly Grease Sachet

Product Description

The Whiteline W73470 is a rear leaf spring shackle bushing kit engineered for the 1989-1995 Toyota Pickup (N80/N90) and the 2001-2004 Toyota Tacoma (1st generation). Both platforms use a rear leaf spring suspension with a shackle at each end, and the shackle bushings are high-wear items that deteriorate under the stress of heavy loads, towing, and off-road use. Worn shackle bushings cause rear-end wander, clunking over bumps, imprecise steering feel, and accelerated spring wear - all common complaints on high-mileage examples of these trucks.

Whiteline's synthetic elastomer compound delivers far greater abrasion resistance, load-bearing capability, and chemical resistance than factory rubber, while still maintaining enough compliance to preserve ride quality. The complete kit includes 12 bushings and 4 tubes - enough to refresh all shackle positions on the entire vehicle in one go. Assembly grease is included for correct installation. No wheel alignment is required after fitting, but the job is rated as tricky with a 3-hour estimated install time due to the need to compress and remove the shackle hardware.
