Whiteline W73819 Rear Leaf Spring Bushing Kit for 1986-1999 Jeep Cherokee XJ

Vehicle Fitment

• 1986-1999 Jeep Cherokee XJ - Base, Chief, Laredo, Limited, Pioneer, Sport, Country; 2.5L I4 or 4.0L I6; 2WD/4WD
• 1987-1992 Jeep Comanche MJ - Base, Chief, Eliminator, Laredo, Pioneer, XLS; 2.5L I4, 2.8L V6 or 4.0L I6; 2WD/4WD

Fitment Notes

• Position: Rear leaf-spring and shackle mounting points.
• Designed for the Jeep Cherokee XJ and Comanche MJ applications listed above.
• Kit services the rear leaf-spring front eyes, rear eyes and shackle locations.
• No wheel alignment is required after installation.
• Verify the vehicle chassis and leaf-spring configuration before installation.
• Vehicle-specific engine and drivetrain combinations vary by model year and trim.

Features

• Complete rear leaf-spring bushing service kit for selected Jeep XJ and MJ applications.
• Polyurethane construction provides improved durability compared with aging factory rubber bushings.
• 85-durometer polyurethane provides increased resistance to bushing deflection.
• Internal grease reservoirs provide continual self-lubrication for improved friction management.
• Resistant to oil, grease, ozone and weathering.
• High load-bearing capability supports demanding truck, towing and off-road use.
• Helps reduce unwanted leaf-spring movement and suspension deflection.
• Helps restore proper rear suspension control when original bushings are worn.
• Includes bushings for the leaf-spring eyes and rear shackles.
• Supplied with installation grease for long-term bushing service.
• Designed as a vehicle-specific replacement rather than a universal bushing set.
• Whiteline polyurethane formulation provides resistance to environmental degradation.
• Designed to maintain suspension control under increased load and articulation.

Specifications

• Brand: Whiteline
• Part Number: W73819
• Product Type: Rear Leaf Spring and Shackle Bushing Kit
• Position: Rear
• Application: Jeep Cherokee XJ / Comanche MJ
• Jeep Cherokee Years: 1986-1999
• Jeep Comanche Years: 1987-1992
• Chassis Codes: XJ / MJ
• Material: Polyurethane
• Color: Black
• Durometer: 85
• Inside Diameter: 19 mm
• Bushing Length: 29.5 mm
• Outside Diameter: 38.2 mm
• Kit Contents: 12x Bushings, 6x Tubes
• Installation Time: Approximately 3 hours
• Wheel Alignment Required: No
• Warranty: Limited Lifetime
• EAN: 9319924477159

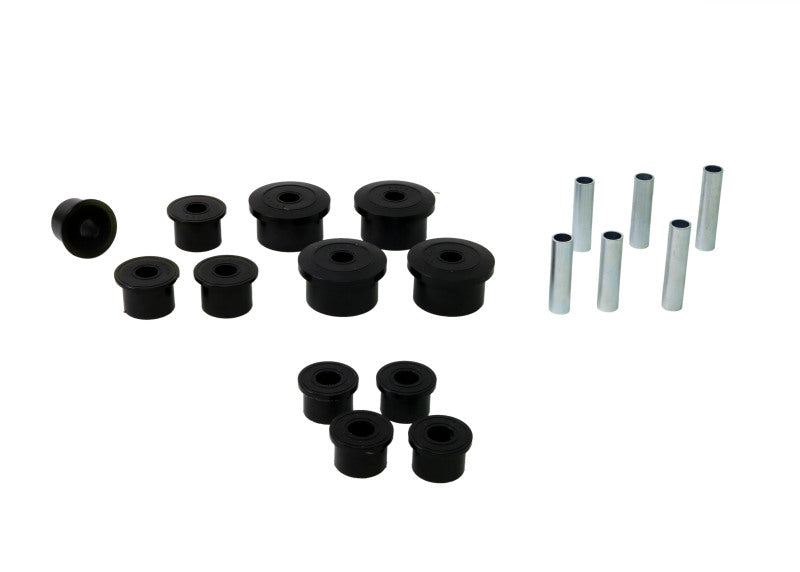

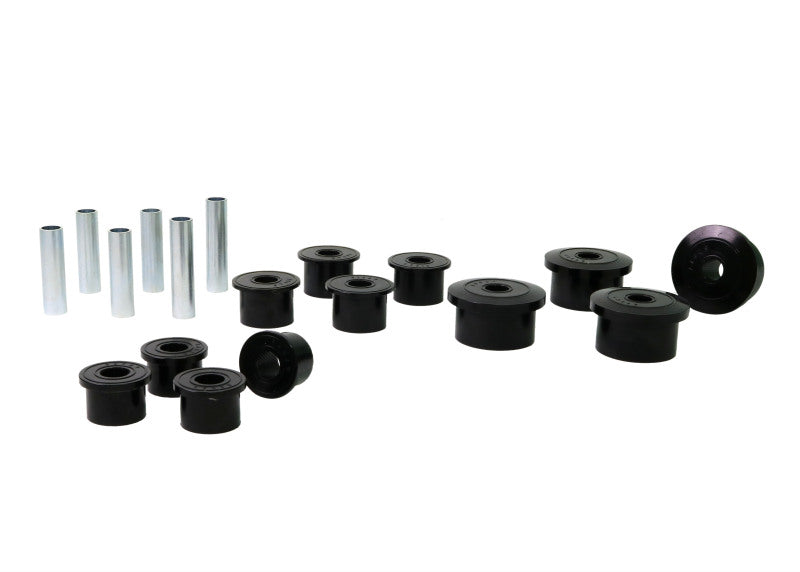

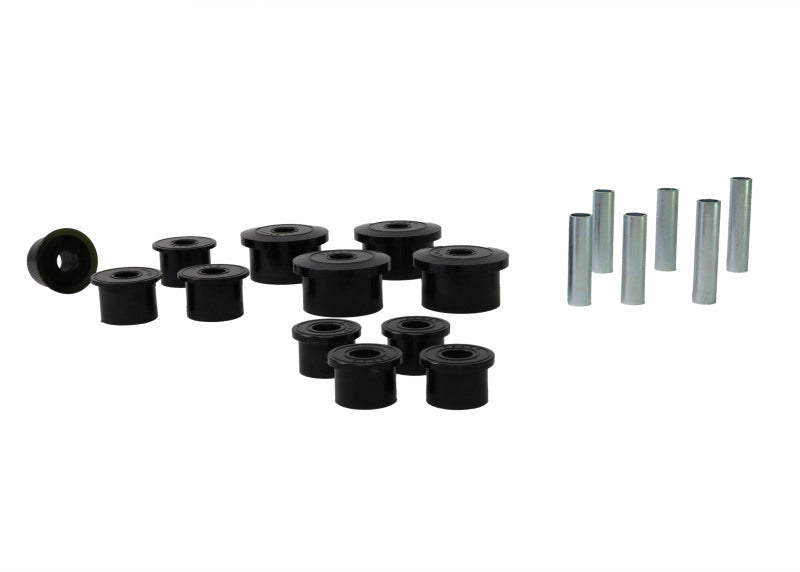

Included Components

• 12x Polyurethane Leaf Spring Bushings
• 6x Steel Tubes/Sleeves
• 1x Installation Grease Supply

Product Description

The Whiteline W73819 is a rear leaf-spring and shackle bushing kit designed for 1986-1999 Jeep Cherokee XJ and 1987-1992 Jeep Comanche MJ applications. It replaces worn or deteriorated factory-style leaf-spring bushings at the rear suspension mounting points, helping restore proper suspension control and reduce unwanted movement caused by aged rubber components.

The bushings use Whiteline's polyurethane formulation with an 85-durometer rating for increased resistance to deflection, abrasion, oil, grease, ozone and weathering. Internal grease reservoirs provide ongoing lubrication, while the included tubes/sleeves support proper installation at the applicable spring and shackle mounting locations.

W73819 is supplied as a complete 12-bushing, 6-tube kit for the documented Cherokee XJ and Comanche MJ rear leaf-spring applications. Engine and drivetrain combinations vary by year, with documented engines including the 2.5L I4, 2.8L V6 and 4.0L I6. No wheel alignment is required after installation, although proper suspension inspection and installation procedures should be followed.
