Whiteline KDT905 Rear Differential Bushings for 2008-2025 Subaru Forester/WRX

Vehicle Fitment

• 2008-2013 Subaru Forester SH - AWD; 2.0L H4, 2.5L H4 or 2.5L H4 Turbo, application dependent
• 2012-2018 Subaru Forester SJ - AWD; 2.0L H4, 2.0L H4 Turbo or 2.5L H4, application dependent
• 2018-2025 Subaru Forester SK - AWD; 2.5L H4
• 2007-2011 Subaru Impreza GE/GH - AWD; 1.5L H4, 2.0L H4 or 2.5L H4, application dependent
• 2011-2016 Subaru Impreza GJ/GP - AWD; 1.6L H4 or 2.0L H4, application dependent
• 2007-2011 Subaru Impreza WRX GE/GH - AWD; 2.5L H4 Turbo
• 2008-2011 Subaru Impreza WRX STI GR - AWD; 2.5L H4 Turbo
• 2011-2014 Subaru Impreza WRX GV/GR - AWD; 2.5L H4 Turbo
• 2011-2014 Subaru Impreza WRX STI GV/GR - AWD; 2.5L H4 Turbo
• 1998-2003 Subaru Legacy BE/BH - AWD; 2.0L H4, 2.5L H4 or 2.0L H4 Turbo, application dependent
• 2003-2009 Subaru Legacy BL/BP - AWD; 2.0L H4, 2.5L H4, 2.5L H4 Turbo or 3.0L H6, application dependent
• 2009-2014 Subaru Legacy BM/BR - AWD; 2.5L H4, 2.5L H4 Turbo or 3.6L H6, application dependent
• 2015-2020 Subaru Legacy BN/BS - AWD; 2.5L H4 or 3.6L H6
• 1998-2003 Subaru Outback BE/BH - AWD; 2.5L H4 or 3.0L H6, application dependent
• 2003-2008 Subaru Outback BP - AWD; 2.5L H4, 2.5L H4 Turbo or 3.0L H6, application dependent
• 2014-2020 Subaru Outback BS - AWD; 2.5L H4 or 3.6L H6
• 2014-2020 Subaru Levorg VM - AWD; 1.6L H4 Turbo or 2.0L H4 Turbo
• 1998-2003 Subaru Liberty BE/BH - AWD; 2.0L H4, 2.5L H4 or 2.0L H4 Turbo, application dependent
• 2003-2009 Subaru Liberty BL/BP - AWD; 2.0L H4, 2.5L H4, 2.5L H4 Turbo or 3.0L H6, application dependent
• 2009-2014 Subaru Liberty BM/BR - AWD; 2.5L H4, 2.5L H4 Turbo or 3.6L H6, application dependent
• 2015-2020 Subaru Liberty BN/BS - AWD; 2.5L H4 or 3.6L H6
• 2014-2021 Subaru WRX VA - AWD; 2.0L H4 Turbo
• 2014-2021 Subaru WRX STI VA - AWD; 2.5L H4 Turbo
• 2022-2025 Subaru WRX VB/VN - AWD; 2.4L H4 Turbo
• 2012-2017 Subaru XV GP - AWD; 1.6L H4 or 2.0L H4, application dependent

Fitment Notes

• Position: Rear differential mount, front/forward support location.
• Designed for the front bushings of the rear differential mounting system.
• Application-specific fitment varies by Subaru chassis and differential mounting configuration.
• One kit is required per vehicle.
• Designed for Subaru AWD drivetrains covered by Whiteline's application catalog.
• Does not represent fitment for every engine or trim available within a listed model; the specified chassis/differential configuration must match.
• 2026 fitment is not confirmed in Whiteline's current KDT905 application data.
• Professional installation is recommended because differential-support bushings require access to the rear drivetrain assembly.

Features

• Rear differential mount front/forward bushing kit.
• Positive differential retention helps limit unwanted differential movement.
• Helps maintain more consistent pinion angles under acceleration and load.
• Reduces differential movement during acceleration and gear changes.
• Helps reduce initial drivetrain torque loss.
• Improves power transfer from the differential to the wheels.
• Synthetic elastomer construction provides increased durability compared with conventional rubber.
• Resists oil, grease, ozone and weathering.
• Internal grease reservoirs provide continual self-lubrication for friction management.
• Application-specific bushing geometry is designed for Subaru rear differential mounting systems.
• Supplied sleeves/tubes support correct differential-mount installation.
• Designed to balance improved drivetrain control with acceptable NVH characteristics.
• Suitable for street, performance and motorsport-oriented Subaru applications.
• Serviceable replacement for compatible factory differential-mount bushings.

Specifications

• Brand: Whiteline
• Part Number: KDT905
• Product Type: Rear Differential Mount Front/Forward Bushing Kit
• Fitting Position: Rear Axle / Rear Upper Forward
• Quantity Required: 1x per vehicle
• Bushing Type: Type 1
• Bushing Quantity: 4x
• Outside Diameter: 55.4 mm
• Inside Diameter: 25.4 mm
• Bushing Length: 27.1 mm
• Flange Thickness: 7.5 mm
• Flange Outside Diameter: 63.9 mm
• Tube Quantity: 2x
• Tube Size: 25.4 x 12.3 x 55 mm
• Material: Synthetic Elastomer / Polyurethane
• Color: Black
• Installation Time: Approximately 4 hours
• Wheel Alignment: None specifically required by the manufacturer
• Warranty: Limited lifetime
• EAN: 9319924377374

Included Components

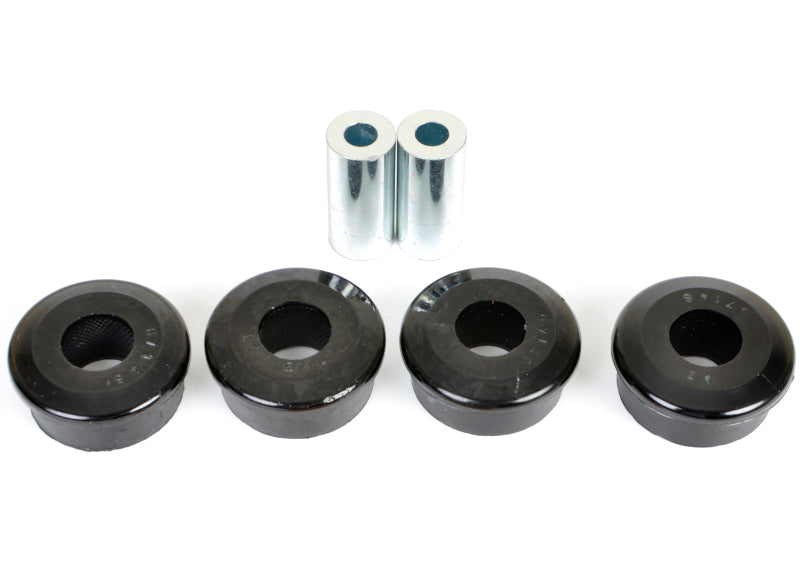

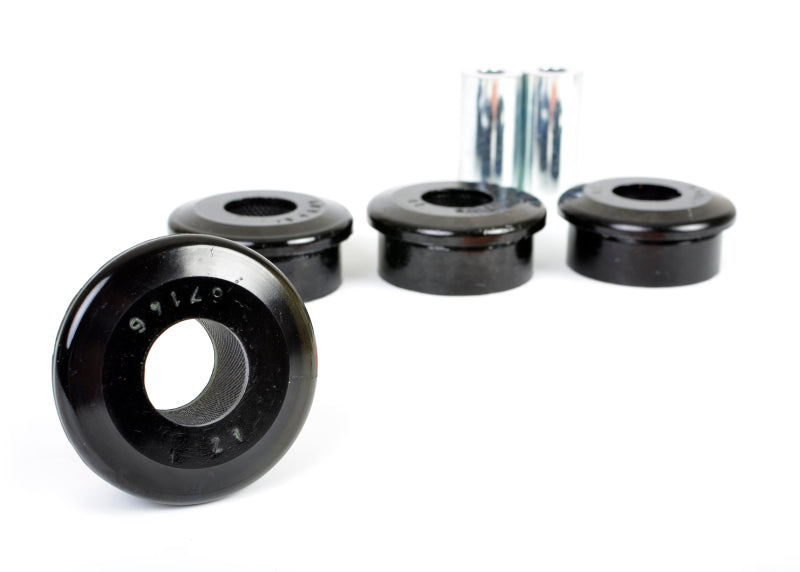

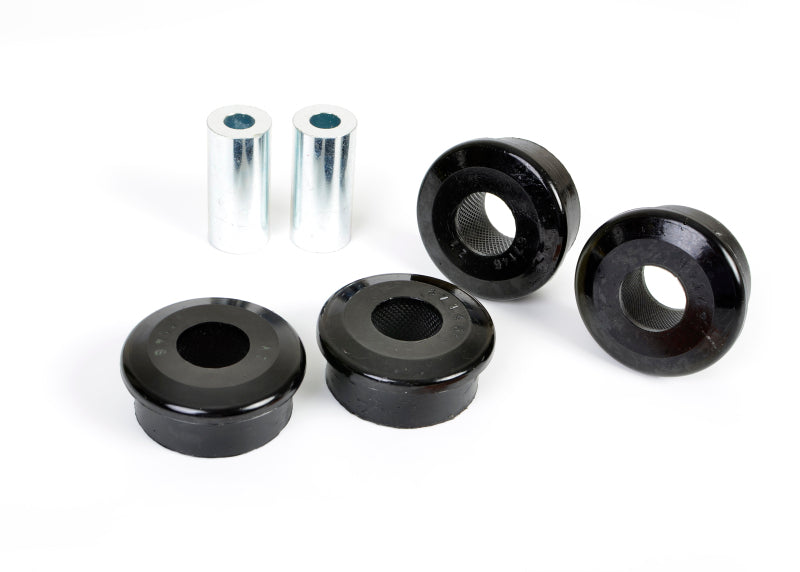

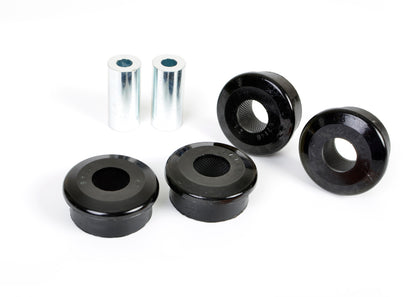

• 4x Differential Mount Bushings
• 2x Metal Tubes/Sleeves
• 1x Installation Guide
• 1x Assembly Grease Supply

Product Description

The Whiteline KDT905 is a rear differential mount front/forward bushing kit designed for a broad range of Subaru AWD platforms. It replaces the applicable factory differential-support bushings with firmer synthetic elastomer components that help control differential movement, maintain more consistent pinion angles and improve drivetrain stability during acceleration and gear changes.

The KDT905 uses four Type 1 bushings measuring 55.4 mm in outside diameter, 25.4 mm in inside diameter and 27.1 mm in body length. The bushings incorporate Whiteline's synthetic elastomer formulation, which is designed to resist oil, grease, ozone and weathering, while internal grease reservoirs provide continual lubrication. Two supplied metal tubes/sleeves complete the mounting arrangement.

Documented applications span Subaru Forester, Impreza, WRX, WRX STI, Legacy, Liberty, Outback, Levorg and XV platforms from 1998 through 2025 depending on the model and chassis. Engine availability varies by platform and market, while all listed applications use AWD. One complete kit is required per vehicle, and installation should be performed by a qualified technician familiar with Subaru rear differential service.
