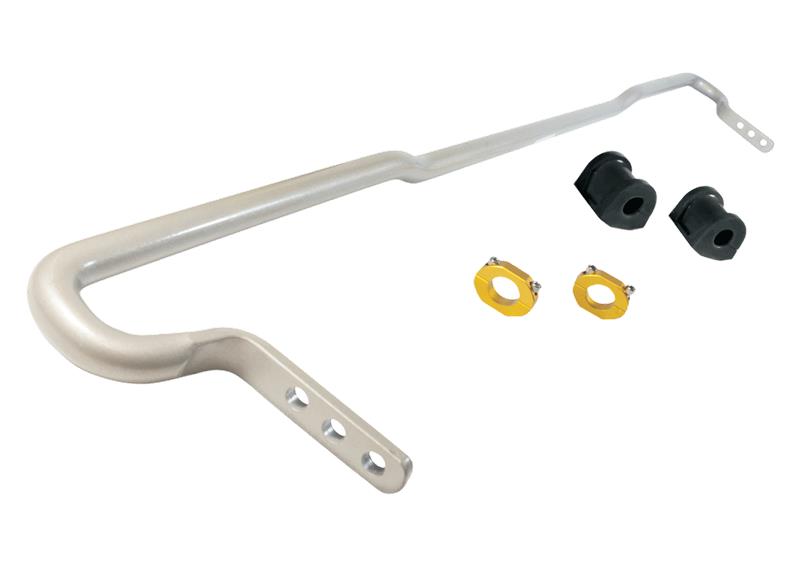

Whiteline BTR86Z Rear HD Sway Bar for 2006-2012 Toyota Yaris/2008-2011 Scion xD

Vehicle Fitment

• 2006-2011 Toyota Yaris (Base/S, Sedan & 3-Door/5-Door Liftback, 1.5L I4, FWD)
• 2012 Toyota Yaris (L/LE/SE, 3-Door/5-Door Liftback, 1.5L I4, FWD)
• 2008-2011 Scion xD (Base, 1.8L I4, FWD)

Fitment Notes

• Designed for beam-axle rear suspension as equipped on listed Toyota Yaris and Scion xD models.
• Does not fit Mazda2-based Yaris iA/Yaris sedan or later Mazda-based Yaris hatch models.
• Not compatible with AWD or non-OEM rear suspension conversions.
• Intended for use with factory-style rear shocks and mounting points; verify exhaust and wheel/tire clearance on lowered vehicles.

Features

• 22mm solid rear sway bar to sharply reduce body roll and improve cornering grip.
• 2-point adjustable design so you can fine-tune rear roll stiffness for street or track use.
• High-strength spring steel construction for consistent rate and long-term durability.
• Powder-coated finish to resist corrosion and damage from road debris.
• Polyurethane D-bushings for crisp bar response and reduced deflection versus rubber.
• Includes dedicated rear link hardware to better control bar motion under load.
• Engineered specifically for Yaris/xD chassis to enhance balance without harsh ride quality.
• Direct bolt-on installation with no welding required and clear, step-by-step instructions.

Specifications

• Position: Rear
• Bar diameter: 22mm (approx. 7/8") solid spring steel
• Adjustability: 2-point blade-style rear sway bar adjustment
• Chassis compatibility: Toyota Yaris XP90/XP130 FWD; Scion xD XP110 FWD
• Engine compatibility: 1.5L I4 (1NZ-FE) Yaris, 1.8L I4 (2ZR-FE) xD
• Suspension type: Rear beam axle with factory sway bar mounting locations
• Approximate kit weight: ~7 kg (about 15.4 lb), including bar and hardware
• Finish: Protective powder-coat over spring steel

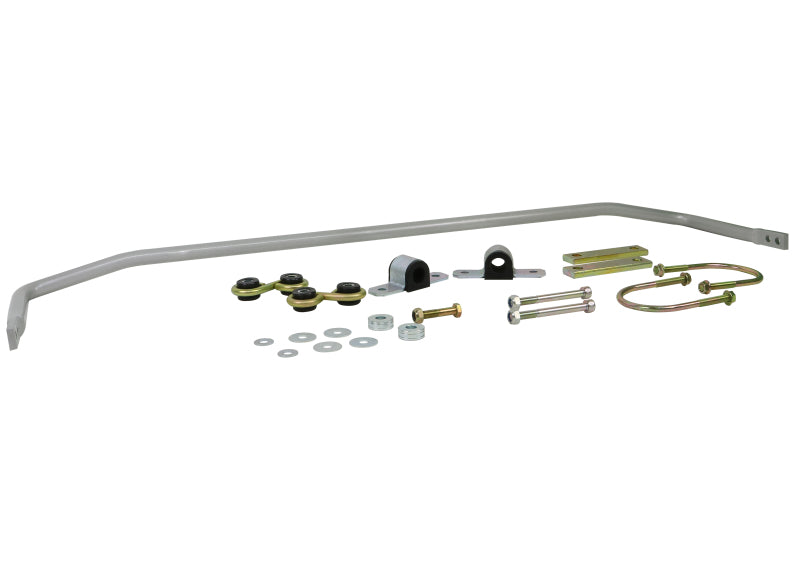

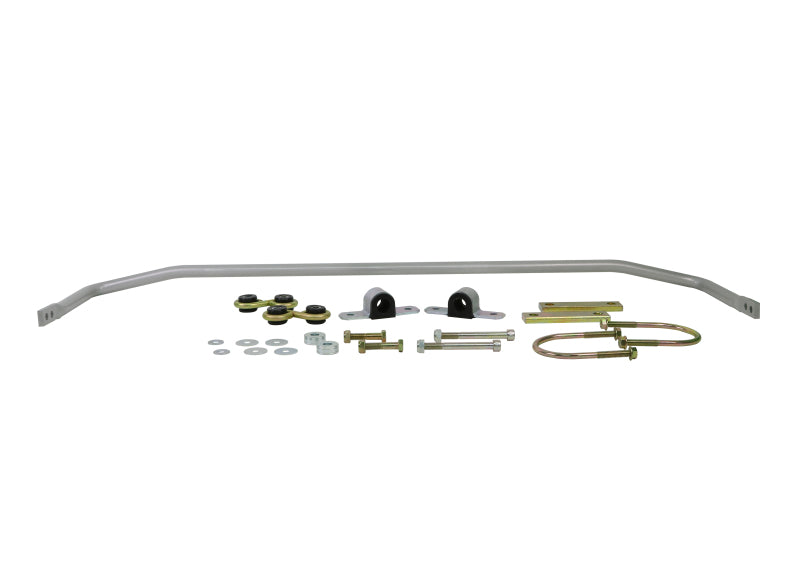

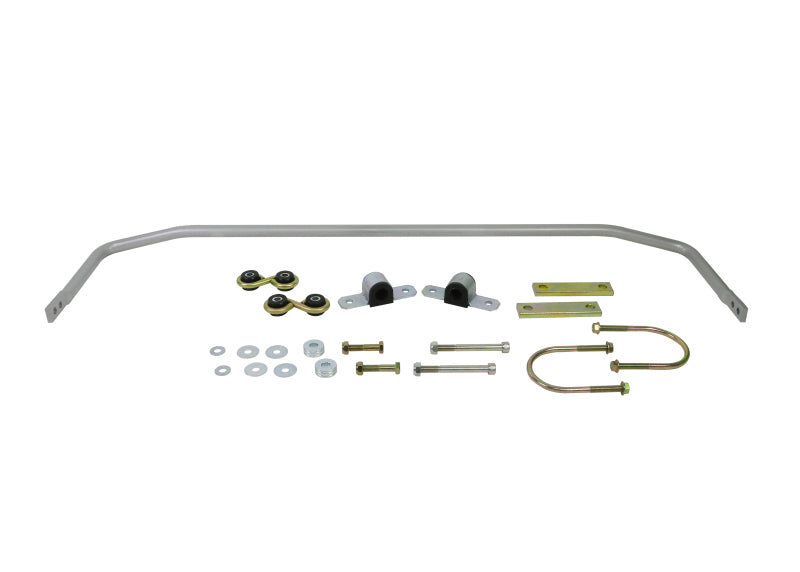

Included Components

• 1x 22mm rear sway bar (Whiteline BTR86Z, solid spring steel)
• 2x Polyurethane D-bushings for 22mm bar
• 2x Sway bar mounting brackets and clamp hardware
• 2x Rear sway bar link assemblies with required spacers and hardware
• 2x Lateral lock collars to prevent bar side-to-side movement
• 1x Complete hardware set (bolts, washers, nuts as required)
• 1x Installation guide

Product Description

The Whiteline BTR86Z Rear Sway Bar is a chassis-specific handling upgrade for 2006-2012 Toyota Yaris and 2008-2011 Scion xD models. By replacing the small factory rear bar (or adding a bar where none was fitted), this 22mm solid bar sharply reduces body roll and keeps the rear of the car flatter in corners. The result is more even tire loading, improved rear grip, and a more confident feel when changing lanes, attacking on-ramps, or driving spiritedly on back roads.

With a 2-point adjustable design, the BTR86Z lets you tune rear roll stiffness to match your springs, shocks, and driving style. Softer settings retain a comfortable street balance, while stiffer settings increase rotation and response for autocross or track days. High-quality spring steel, polyurethane bushings, and a durable powder-coated finish ensure long service life even in harsh climates. Because the kit is engineered specifically for the Yaris and xD beam-axle rear suspension, installation is a straightforward bolt-on upgrade, making this one of the best dollar-per-lap and dollar-per-mile handling improvements you can make to these compact platforms.
