Whiteline KLC106 Adj Heavy Duty Sway Bar End Link Kit MINI/Honda/Hyundai/Mazda

Vehicle Fitment

• 2008-2011 Ford Focus (S, SE, SEL, SES) -- Front
• 2006-2011 Hyundai Elantra (All Trims) -- Rear
• 2009-2011 Hyundai Elantra Touring (GLS, SE) -- Rear
• 2001-2003 Lexus ES300 -- Rear
• 2004-2006 Lexus RX330 -- Rear
• 2007-2012 Lexus RX350 -- Rear
• 2010-2013 Mazda 3 Mazdaspeed -- Rear
• 2009-2014 Mazda 3 BL -- Rear
• 2002-2013 MINI Cooper (All Trims, R50/R52/R53/R55/R56/R57/R58/R59) -- Rear
• 2012-2014 MINI Cooper Coupe -- Rear
• 2008-2012 MINI Clubman (R55) -- Rear
• 2003-2013 Toyota Highlander (All Engines, 2WD/4WD) -- Rear

Fitment Notes

• Position varies by application -- confirm front or rear before ordering (see fitment list above)
• Ford Focus: Front position only
• All other applications: Rear position
• Suits models with 235mm OEM link length
• Replaces OEM pin/ball style links
• Wheel alignment not required after installation
• Est. installation time: 1 hour

Features

• Adjustable length: 230-255mm (25mm range)
• On-car adjustable -- no disassembly required for length adjustment
• Heavy duty ball joint ends -- adjustable and rotatable to any angular combination
• 360-degree swivel head for ease of fitment at any installation angle
• Premium anodized alloy body construction
• 10mm bolt diameter
• Horizontal configuration
• Eliminates sway bar preload on installation
• Maximizes sway bar effectiveness for improved grip and handling
• Install guide included
• Made in Australia
• 3-year / 60,000-mile warranty

Specifications

• Link Type: Ball joint
• Adjustable: Yes
• On-Car Adjustable: Yes
• Adjustment Range: 25mm
• Overall Length: 230-255mm
• Bolt Diameter: 10mm
• Configuration: Horizontal
• Body Material: Anodized alloy
• Quantity: Pair (2 links)
• EAN: 9319924379132
• Warranty: 3 years / 60,000 miles

Included Components

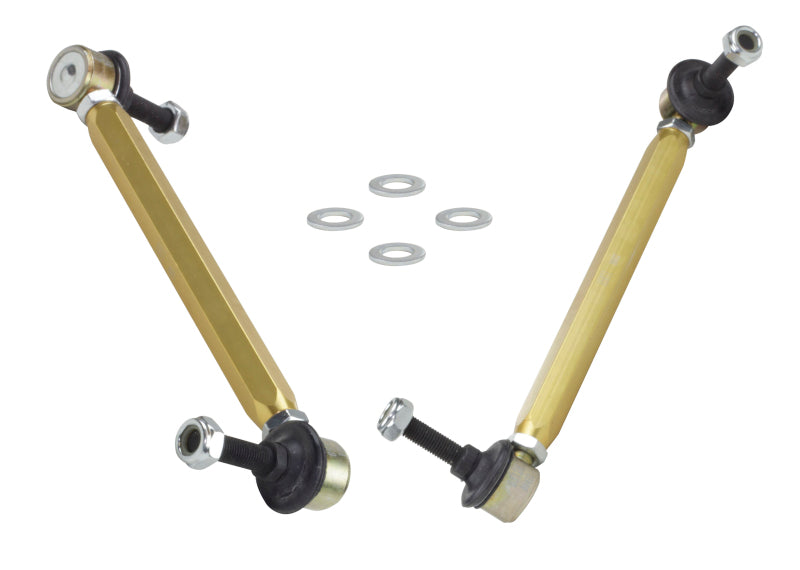

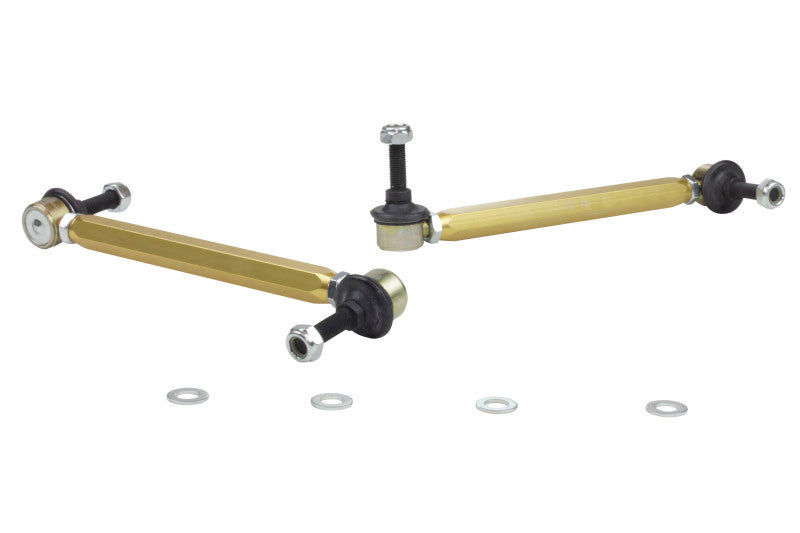

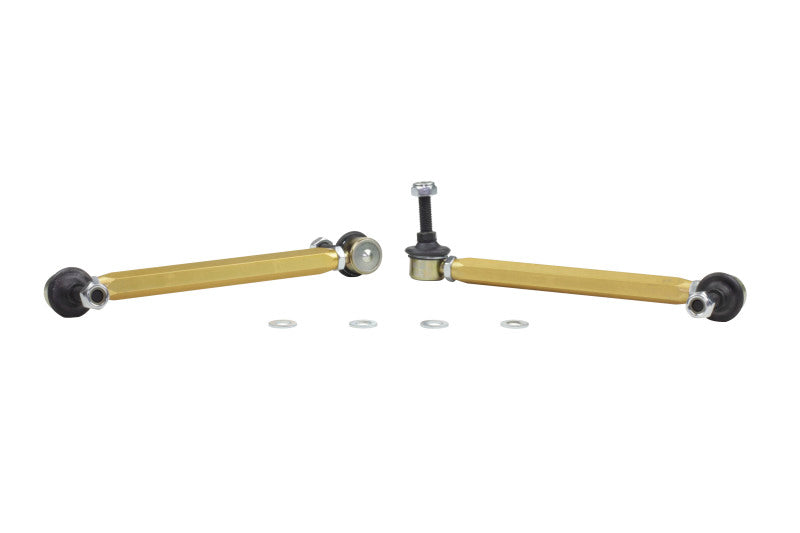

• 2x Adjustable sway bar end links
• 1x Installation hardware kit
• 1x Install guide

Product Description

The Whiteline KLC106 is an adjustable heavy duty sway bar end link kit covering a wide range of Ford, Hyundai, Lexus, Mazda, MINI, and Toyota applications. OEM and aftermarket sway bar effectiveness is often hindered by worn or inadequate end links that introduce unwanted compliance and preload into the sway bar system before it can generate any corrective force. The KLC106 resolves this with a fully adjustable 230-255mm link range, allowing the installer to dial in precisely zero preload at any ride height and maximize the sway bar's output for improved grip and reduced body roll. Each link features a heavy duty ball joint end that rotates 360 degrees to accommodate any installation angle without binding, eliminating the fitment frustration common to fixed-length OEM replacement links. The premium anodized alloy body provides corrosion resistance and long-term durability under road and track conditions. Adjustment is made by twisting the center barrel of the link to set the desired length, then locking the included nut against the body -- all achievable on the car without removing the links. The 10mm bolt diameter and horizontal configuration are compatible across all listed applications. Position varies by vehicle: Ford Focus applications use this link at the front; all other applications in the fitment list use it at the rear. This kit replaces OEM pin/ball style links and suits vehicles equipped with a 235mm stock link. No wheel alignment is required after installation, and the kit is covered by Whiteline's 3-year / 60,000-mile warranty. Manufactured in Australia.
