Whiteline KCA479 Front Lower Inner Offset Bushing Kit for 01-06 Honda Civic/RSX

Vehicle Fitment

• 2001-2006 Honda Civic (DX, LX, EX, HX, GX, Si) - Front lower control arm inner bushings
• 2002-2006 Acura RSX (Base, Type-S) - Front lower control arm inner bushings

Fitment Notes

• Forward bushing features positive caster offset design; rearward bushing is fixed non-adjustable.
• Kit targets front lower inner mounting position only; other bushings must be addressed separately.
• Aftermarket struts or lowering more than ~30 mm may affect fit and alignment--verify clearance and alignment after install.

Features

• Double-offset synthetic-elastomer bushings improve steering precision and return to centre stability.
• Reduces suspension compliance under load, enhancing tyre contact patch in cornering.
• Durable material resists oil, ozone and weathering--suitable for performance and street use.
• Direct-fit kit with required tubes; no re-machining of control arm required.
• Improves braking stability and under-load alignment behaviour when used with fresh arms/ball-joints.
• Backed by Whiteline 3-year / 60,000-mile warranty when installed correctly.

Specifications

• Part Number: KCA479
• Position: Front lower inner control arm - both sides
• Offset: Forward bushing provides additional caster angle; rear bushing fixed
• Material: Synthetic-elastomer (polyurethane-type) with steel inner tube

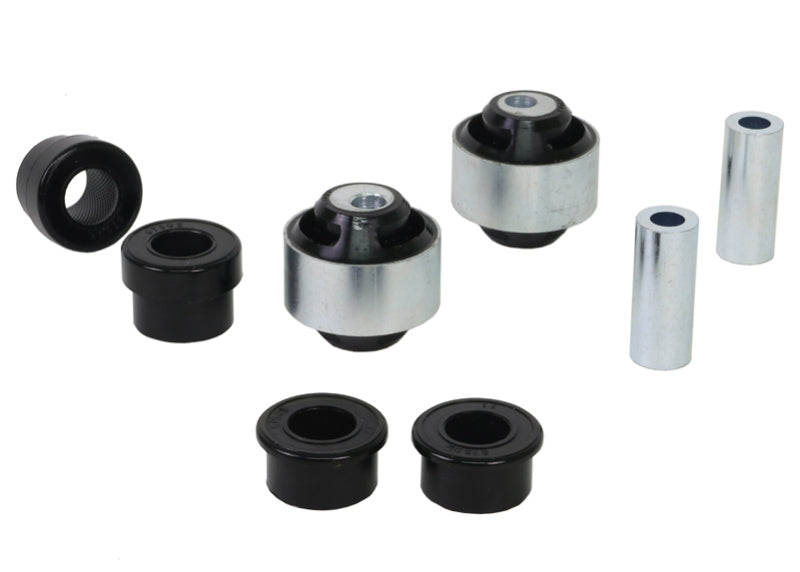

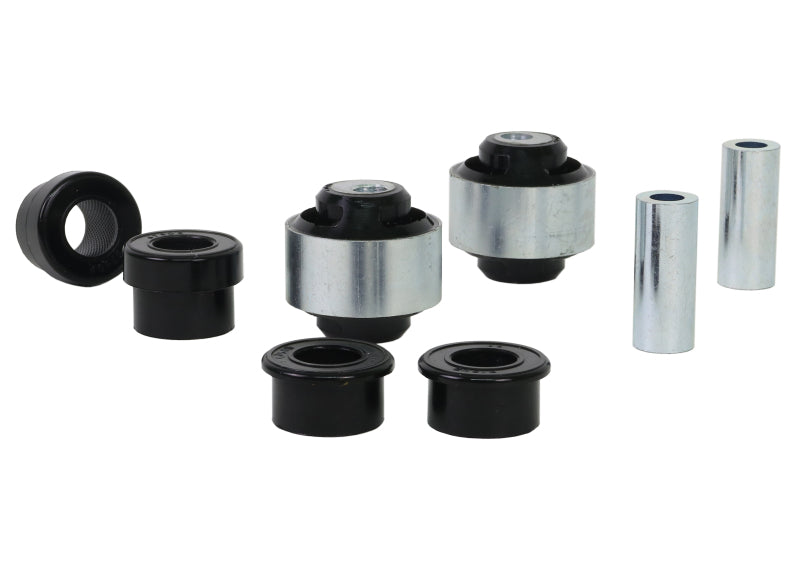

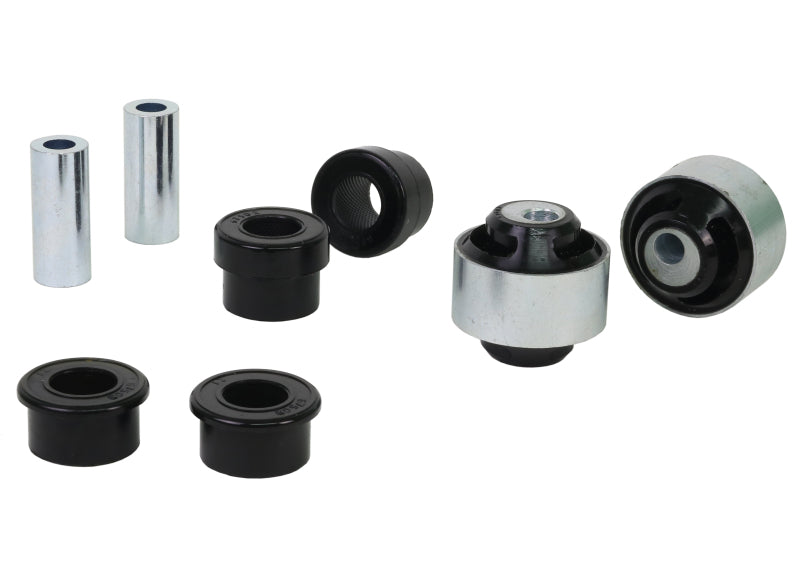

Included Components

• 2x Shells (forward position with offset)
• 4x Full bushings (two forward offset, two rear fixed)
• 2x Inner metal tubes
• Installation instructions and warranty card

Product Description

The Whiteline KCA479 Front Lower Inner Offset Bushing Kit is engineered specifically for the 2001-2006 Honda Civic and 2002-2006 Acura RSX. By replacing the factory control-arm inner bushings with these precision synthetic-elastomer components--featuring a forward offset bushing and a rear fixed bushing--the kit increases static caster, improves dynamic negative camber gain, and tightens suspension response.

This upgrade is ideal for performance-minded drivers or vehicles with high mileage front suspension components. It helps restore steering feel, reduce under-load compliance and maintain alignment during aggressive cornering. Installation uses factory mounting points and the included tubes--no re-engineering needed. After installation, an alignment check is highly recommended to capture the improved geometry and consistent handling benefits.
