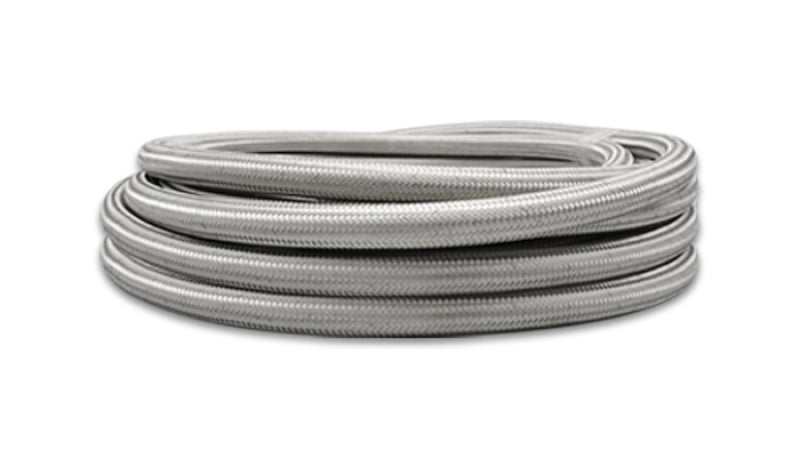

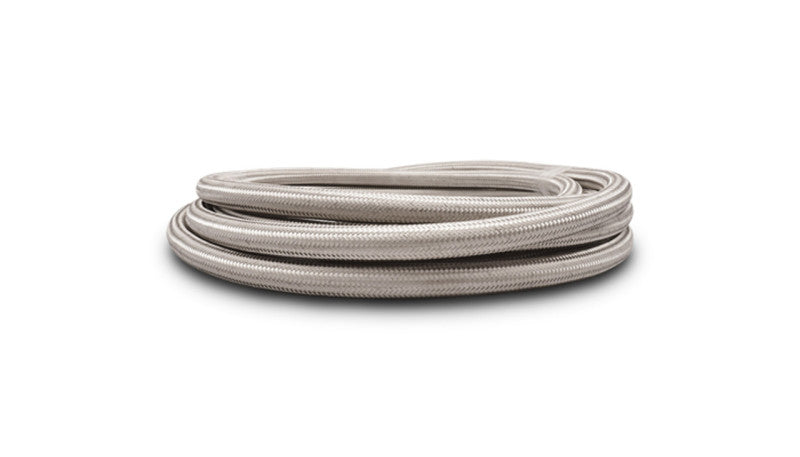

Vibrant 18526 -16AN SS Braided PTFE Flex Hose 10 ft. Roll Stainless Universal

Vehicle Fitment

• Universal - No vehicle-specific fitment. Suitable for any fuel, oil, transmission, clutch, power steering, or coolant line application requiring -16 AN stainless steel braided PTFE-lined flex hose.

Fitment Notes

• This is a universal hose sold by the roll. Sold as a 10-foot length - cut to the required length for your application.
• Compatible only with Vibrant PTFE hose end fittings. Not compatible with standard reusable rubber-lined hose end fittings.
• Use of this hose for brake line applications is strictly at the customer's own risk and will void all warranties and liabilities.
• Also available in nylon braid (black) and in additional roll lengths across the Vibrant PTFE hose lineup.

Features

• PTFE inner liner eliminates fuel vapor permeation and provides chemical compatibility with all popular race fuels and oils
• Stainless steel braid outer cover provides superior protection against abrasion, corrosion, and pressure expansion
• Wide operating temperature range of -94°F to 480°F (-70°C to 250°C) suits demanding motorsport and street applications
• Suitable for fuel, oil, transmission fluid, clutch fluid, power steering fluid, and coolant
• 1,000 psi operating pressure rating with 3,000 psi burst pressure for high-demand large-bore applications
• 0.875 in. inner diameter provides correct flow capacity for high-volume -16 AN plumbing circuits
• Natural (silver) stainless braid finish for a clean, professional appearance
• Backed by Vibrant's 1-year limited warranty

Specifications

• Part Number: 18526
• Hose Size: -16 AN
• Inner Liner: PTFE (Polytetrafluoroethylene)
• Outer Cover: Stainless Steel Braid (300 Series)
• Inner Diameter: 0.875 in.
• Outer Diameter: 1.031 in.
• Minimum Bend Radius: 15.75 in.
• Length: 10 ft. (120 in.)
• Operating Pressure: 1,000 psi
• Burst Pressure: 3,000 psi
• Operating Temperature Range: -94°F to 480°F (-70°C to 250°C)
• Compatible Fluids: Race Fuels, Engine Oil, Transmission Fluid, Clutch Fluid, Power Steering Fluid, Coolant
• Finish / Color: Natural (Stainless Silver)
• Quantity: Sold as 10 ft. Roll
• Warranty: 1 Year Limited Warranty

Included Components

• 1x Vibrant 18526 -16 AN Stainless Steel Braided PTFE Flex Hose, 10 ft. Roll

Product Description

The Vibrant 18526 is a -16 AN stainless steel braided PTFE-lined flex hose sold in a 10-foot roll for custom high-volume fuel, oil, and fluid delivery system fabrication. At -16 AN, this is one of the largest sizes in Vibrant's PTFE hose lineup, with a 0.875 in. inner diameter and 1.031 in. outer diameter suited for high-flow applications including large-bore fuel delivery, oil drain returns, transmission cooling, and power steering circuits. The PTFE inner liner provides full chemical compatibility with all popular race fuels and oils while eliminating fuel vapor permeation common in rubber-lined alternatives.

The stainless steel braid outer cover provides superior abrasion and corrosion resistance with a 1,000 psi operating pressure rating and 3,000 psi burst pressure. With an operating temperature range of -94°F to 480°F, this hose handles the full demands of motorsport and performance street applications. Compatible exclusively with Vibrant PTFE hose end fittings - not compatible with standard reusable rubber-lined hose end fittings. Note: use for brake line applications is at the customer's own risk and voids all warranties. Sold as a 10-foot roll.
