Vibrant 18424 -4 AN SS Braided PTFE Flex Hose 20 ft Roll Universal

Vehicle Fitment

• Universal - fits any vehicle or application requiring -4 AN fluid hose

Features

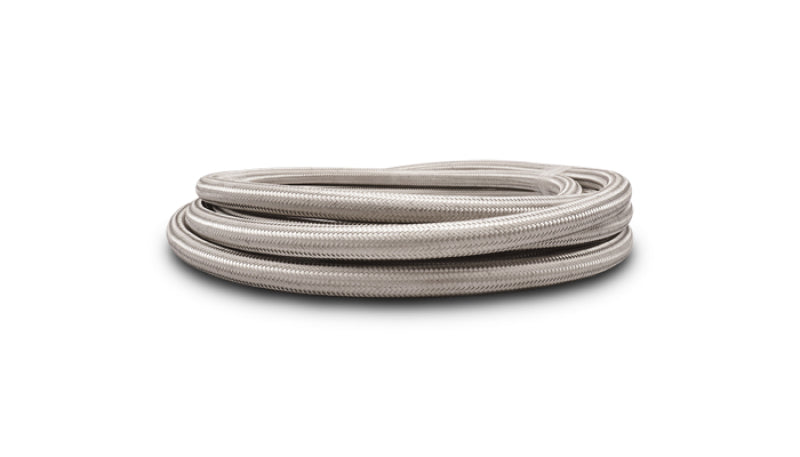

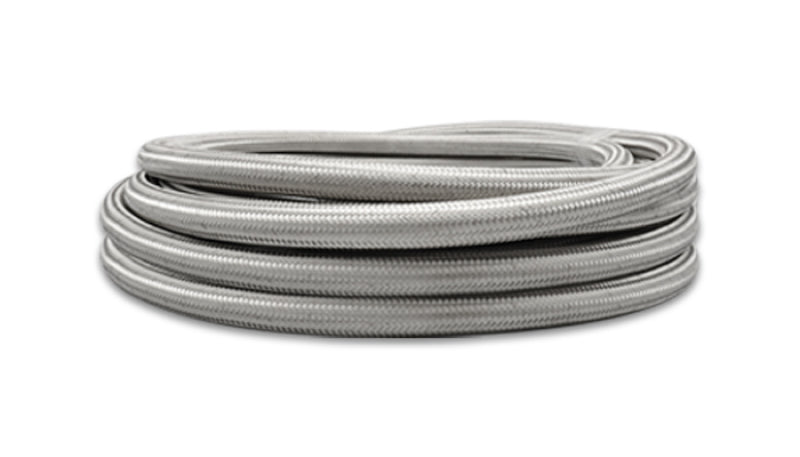

• 20 ft long stainless steel braided flex hose with PTFE inner liner
• -4 AN sizing ideal for custom fluid routing and performance plumbing
• Braid material: durable stainless steel for abrasion resistance
• PTFE liner for chemical resistance and low vapor permeation
• Wide operating temperature range from -94 °F to 480 °F
• High operating pressure up to ~4,000 psi
• Burst pressure up to ~12,000 psi
• Flexible hose suitable for fuel, oil, coolant, clutch, and power steering lines

Specifications

• Part Number: 18424
• AN Size: -4 AN
• Length: 20 ft (240 in / ~6096 mm)
• Inside Diameter: ~0.19 in (4.8 mm)
• Outside Diameter: ~0.30 in (7.6 mm)
• Braid Material: Stainless Steel
• Inner Liner: PTFE
• Operating Temp Range: -94 °F to 480 °F
• Operating Pressure: ~4,000 psi / Burst Pressure: ~12,000 psi

Included Components

• 1x 20 ft roll Stainless Steel Braided PTFE Flex Hose (-4 AN)

Product Description

The Vibrant 18424 stainless steel braided flex hose with PTFE liner is a high-performance universal fluid line solution for custom automotive and motorsport applications. With a durable stainless steel braid and a PTFE inner liner, this -4 AN hose delivers excellent resistance to abrasion, chemicals, and vapor permeation, making it suitable for fuel, oil, coolant, clutch, and power steering fluids. The generous 20 ft roll offers flexibility for custom routing, fabrication, or replacement plumbing in any build.

Designed for universal use, this hose supports a wide operating temperature range from -94 °F to 480 °F and high pressures up to ~4,000 psi, with a burst pressure around ~12,000 psi, providing reliability under demanding conditions. It's a versatile choice for performance cars, race builds, and custom fabrication projects where quality fluid delivery lines are needed.
