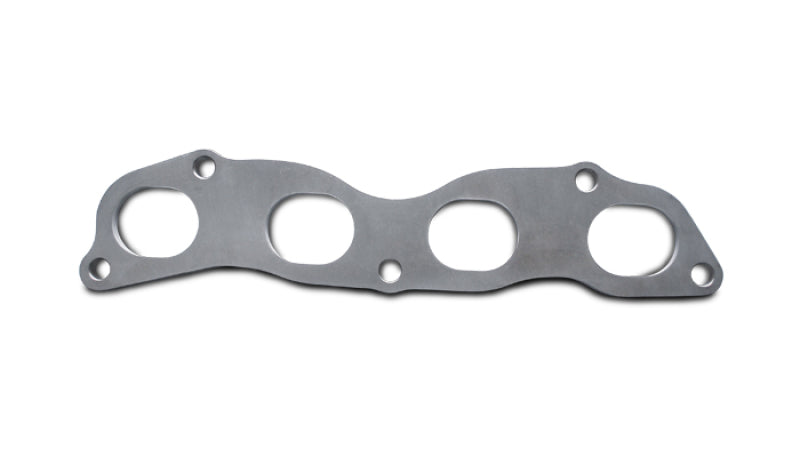

Vibrant 14610K Mild Steel Exhaust Manifold Flange Honda Acura K-Series 1/2 in.

Vehicle Fitment

• 2002-2006 Acura RSX Base (2.0L K20A3 4-Cyl.)
• 2002-2004 Acura RSX Type S (2.0L K20A2 4-Cyl.)
• 2005-2006 Acura RSX Type S (2.0L K20Z1 4-Cyl.)
• 2004-2008 Acura TSX (2.4L K24A2 4-Cyl.)
• 2002-2005 Honda Civic Si (2.0L K20A3 4-Cyl.)
• 2006-2011 Honda Civic Si (2.0L K20Z3 4-Cyl.)
• 2002-2006 Honda CR-V (2.4L K24A1 4-Cyl.)
• 2003-2006 Honda Element (2.4L K24A4 4-Cyl.)

Fitment Notes

• Fits Honda/Acura K-Series 4-cylinder engines (K20 and K24 variants). Confirm your specific K-Series variant before ordering.
• Port sizing is optimized for use with Schedule 10 or Schedule 40 pipe - not standard wall round tubing. See stainless variant 1460K for standard wall round tubing port sizing.
• Sold individually. One flange per purchase.
• When mating to 304 stainless steel tubing, 309L welding filler rod is recommended.

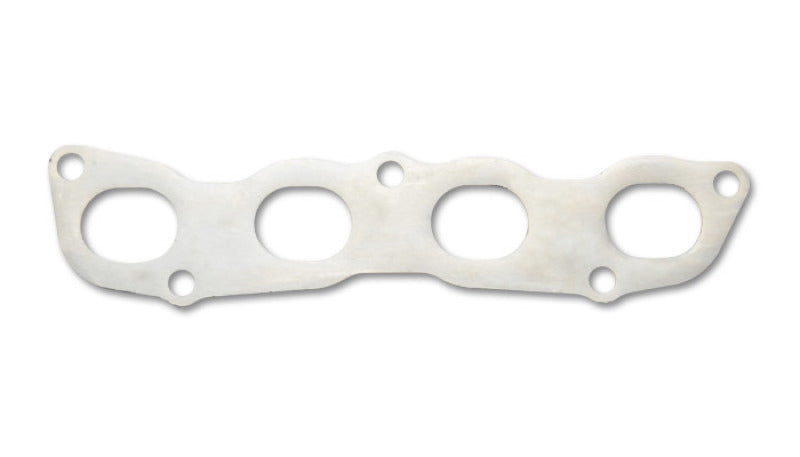

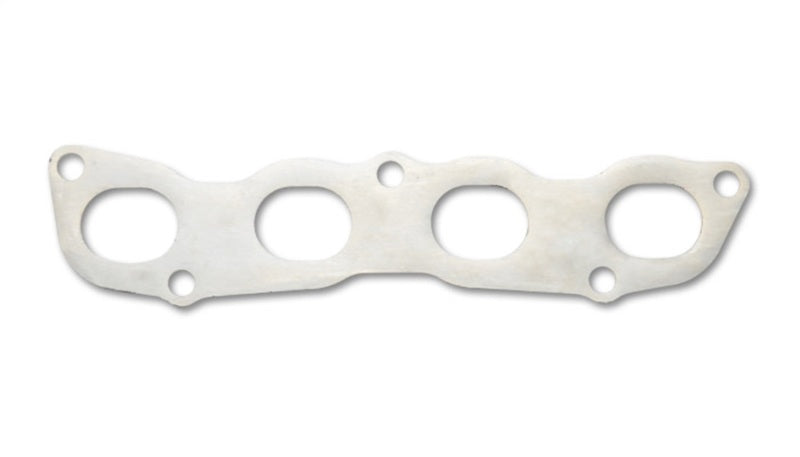

• Stainless steel equivalent (3/8 in. thick, standard wall round tubing): part number 1460K.

Features

• Precision laser cut HRPO (Hot Rolled Pickled and Oiled) mild steel for consistent port accuracy and weldability
• 1/2 in. (0.500 in.) thick construction provides added rigidity over the 3/8 in. stainless variant
• Port sizing matched to Honda/Acura K-Series cylinder head outlet geometry and optimized for Schedule 10 or 40 pipe
• HRPO surface finish arrives clean and weld-ready with minimal prep required
• Machined mating surface ensures a tight, leak-free seal against the cylinder head
• Suitable for naturally aspirated and forced induction header and turbo manifold builds
• Widely used across the K-Series platform for Civic Si, RSX, TSX, and CR-V custom header fabrication
• Backed by Vibrant's 1-year limited warranty

Specifications

• Part Number: 14610K
• Material: HRPO Mild Steel
• Engine Fitment: Honda/Acura K-Series 4-Cylinder (K20A2, K20A3, K20Z1, K20Z3, K24A1, K24A2, K24A4)
• Flange Thickness: 1/2 in. (0.500 in.)
• Port Sizing: Optimized for Schedule 10 or Schedule 40 pipe
• Finish: Raw (HRPO)
• Quantity: Sold Individually
• Stainless Equivalent: Vibrant 1460K (3/8 in., standard wall round tubing)
• Warranty: 1 Year Limited Warranty

Included Components

• 1x Vibrant 14610K Exhaust Manifold Flange, Honda/Acura K-Series, HRPO Mild Steel, 1/2 in. Thick

Product Description

The Vibrant 14610K is a precision laser-cut HRPO mild steel exhaust manifold flange designed for Honda and Acura K-Series four-cylinder engines across the RSX, TSX, Civic Si, CR-V, and Element platforms. At 1/2 in. thick, it offers greater rigidity than the 3/8 in. stainless variant, making it a preferred choice for turbo manifold fabrication where the heavier flange better resists warping at the cylinder head sealing surface under high thermal loading. Port sizing is optimized for Schedule 10 or Schedule 40 pipe - the thicker-wall pipe commonly selected for K-Series turbo manifold and performance header builds.

The HRPO surface finish requires minimal preparation before welding and accepts MIG or TIG with standard mild steel consumables. When joining to stainless tubing, 309L filler rod is recommended for a corrosion-resistant weld joint. Builders using standard wall round tubing should select the stainless steel variant (part number 1460K). Sold individually.
