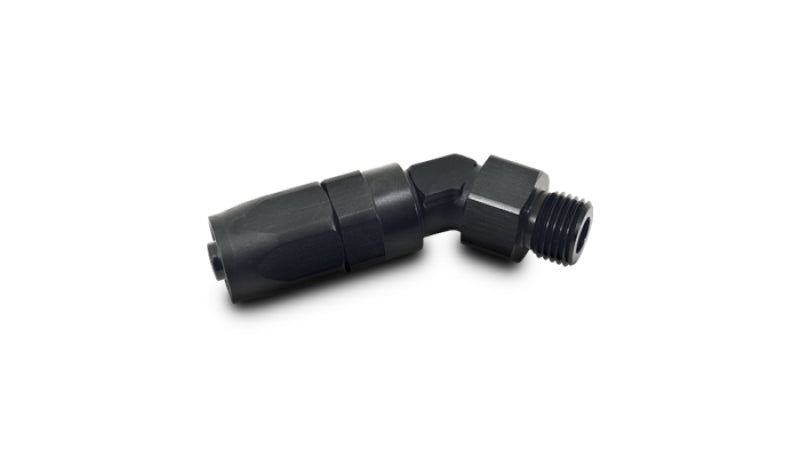

Vibrant 24414 -16AN Male ORB 45-Degree Hose End Fitting 6061 Aluminum Black

Vehicle Fitment

• Universal - No vehicle-specific fitment. Compatible with any fuel, oil, coolant, or vacuum plumbing system using -16 AN braided flex hose requiring a 45-degree male ORB hose end fitting.

Fitment Notes

• This is a universal fluid delivery component. Confirm that your hose is -16 AN and your port is male ORB (O-Ring Boss) -16 AN (1-5/16"-12 thread) before ordering.
• Swivel-style design - hose end rotates freely during installation for easier routing and tightening.
• Includes O-ring seal for leak-free service at the male ORB port connection.
• Available in anodized black only. Not available in other colors or finishes.
• Compatible with Vibrant braided rubber-lined flex hose and braided PTFE-lined flex hose in -16 AN size.

Features

• Tight radius forged 6061 aluminum alloy construction - lightweight, strong, and corrosion-resistant
• 45-degree bend angle allows routing in tight spaces where straight or 90-degree fittings won't fit
• Swivel-style body rotates freely during assembly for easier hose routing and installation
• Male ORB (O-Ring Boss) port end provides a positive, leak-free seal against ORB-ported components
• Includes O-ring seal for anti-leak service at the ORB port connection
• Black hard anodized finish provides additional surface protection and a clean appearance
• Tight radius forged design delivers smooth internal flow path and structural integrity
• Backed by Vibrant's 1-year limited warranty

Specifications

• Part Number: 24414
• Material: 6061 Aluminum Alloy
• Hose Size: -16 AN
• Port End: Male ORB (O-Ring Boss) -16 AN (1-5/16"-12 Thread)
• Bend Angle: 45 Degrees
• Style: Swivel (Tight Radius Forged)
• Seal: O-Ring Included
• Finish: Black Hard Anodized
• Quantity: Sold Individually
• Warranty: 1 Year Limited Warranty

Included Components

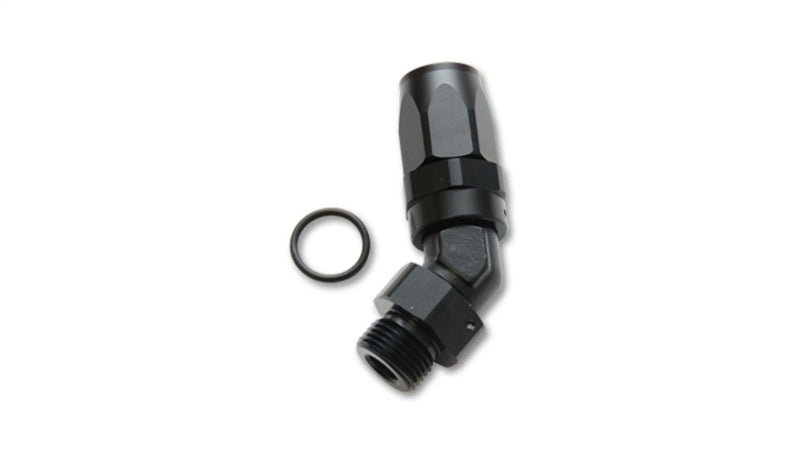

• 1x Vibrant 24414 -16 AN Male ORB 45-Degree Hose End Fitting, 6061 Aluminum, Black Anodized
• 1x O-Ring Seal

Product Description

The Vibrant 24414 is a tight radius forged 6061 aluminum hose end fitting connecting -16 AN braided flex hose to a male ORB (O-Ring Boss) port at a 45-degree angle. The tight radius forged construction produces a stronger, smoother internal flow path compared to cast fittings, and the swivel-style body rotates freely during assembly - making it easier to route and tighten the hose in cramped engine bay and chassis plumbing layouts. The male ORB port end seals directly against the O-ring boss port on components such as pumps, coolers, and filter housings using the included O-ring for a leak-free connection.

At -16 AN, this is the largest size in Vibrant's tight radius forged male ORB hose end lineup, making it well suited for high-volume fuel delivery, large-bore oil lines, transmission cooler circuits, and other applications where maximum flow capacity is required. The black hard anodized finish provides corrosion resistance and a consistent appearance throughout the plumbing system. Available in anodized black only. Sold individually.
