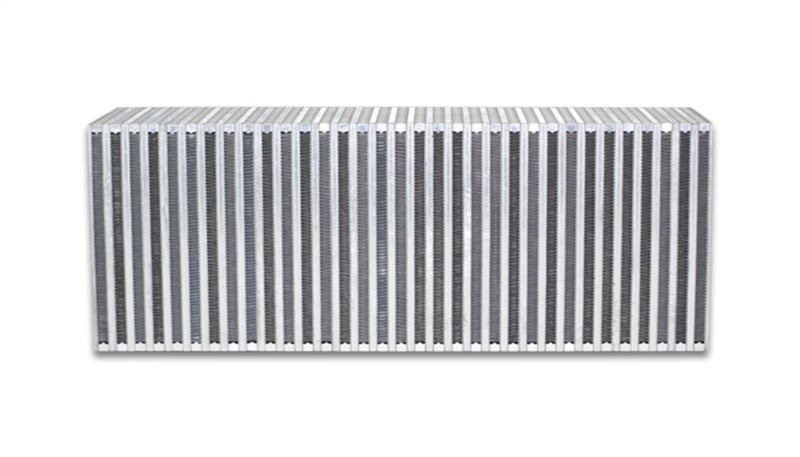

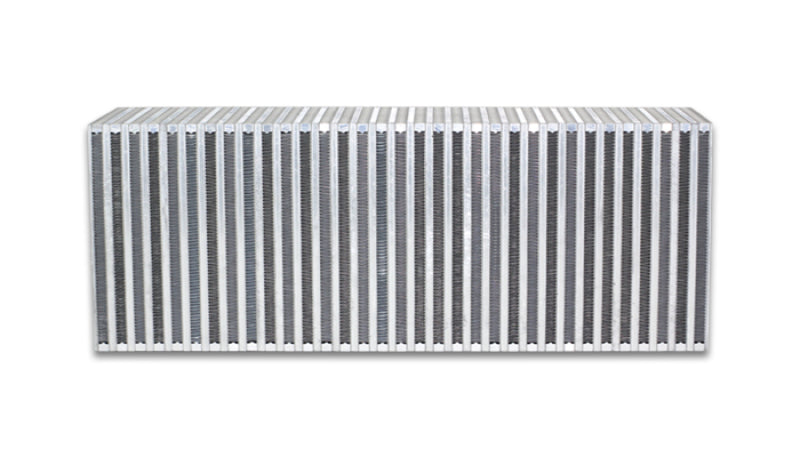

Vibrant 12841 Vertical Flow Bar Plate Intercooler Core 11.80 x 6 x 3 Universal

Vehicle Fitment

• Universal Fit - Compatible with all turbocharged and supercharged vehicles requiring a custom-fabricated air-to-air intercooler solution with a 11.80 in. W x 6.00 in. H x 3.00 in. thick core

Fitment Notes

• Core only - does not include end tanks; end tanks must be fabricated or sourced separately
• Core is cleaned and prepared for welding straight out of the box
• Intended for custom fabrication builds across all forced induction platforms
• Approximate HP rating of 200 HP - actual rating may vary based on engine and turbo setup

Features

• Vertical flow design delivers efficient charge air cooling in space-constrained engine bays
• Bar and plate construction provides superior strength and cooling efficiency over tube-and-fin designs
• Louvered fin design on the ambient air path maximizes available surface area for heat dissipation
• Offset fin design on the charge air path minimizes pressure drop for maximum boost efficiency
• Constructed from 6061 aluminum for lightweight durability and corrosion resistance
• Ready-to-weld out of the box - cleaned and prepped for custom end tank fabrication
• Backed by Vibrant Performance's 1-Year Limited Warranty

Specifications

• Part Number: 12841
• Flow Direction: Vertical
• Core Width: 11.80 in.
• Core Height: 6.00 in.
• Core Thickness: 3.00 in.
• Material: 6061 Aluminum
• Construction: Bar and Plate
• Approximate HP Rating: 200 HP
• Fitment: Universal
• Warranty: 1-Year Limited
• Package Weight: 5.75 lbs.

Included Components

• 1x Vibrant 12841 Vertical Flow Intercooler Core

Product Description

The Vibrant Performance 12841 is a compact vertical flow air-to-air intercooler core built for custom forced induction fabrication projects. Measuring 11.80 in. wide by 6.00 in. tall by 3.00 in. thick, this core is rated for approximately 200 HP and is ideal for smaller turbocharged builds, snowmobiles, ATVs, or any application where space is limited. The bar and plate construction - with louvered fins on the ambient air path and offset fins on the charge air path - delivers meaningfully cooler, denser intake charge air compared to traditional tube-and-fin cores.

Made from 6061 aluminum and shipped cleaned and ready to weld, the 12841 requires custom-fabricated end tanks to complete the intercooler assembly. This core-only design gives fabricators full flexibility over inlet and outlet placement, sizing, and orientation. Universally compatible with any forced induction platform requiring a core of this size, and backed by Vibrant's 1-Year Limited Warranty.
