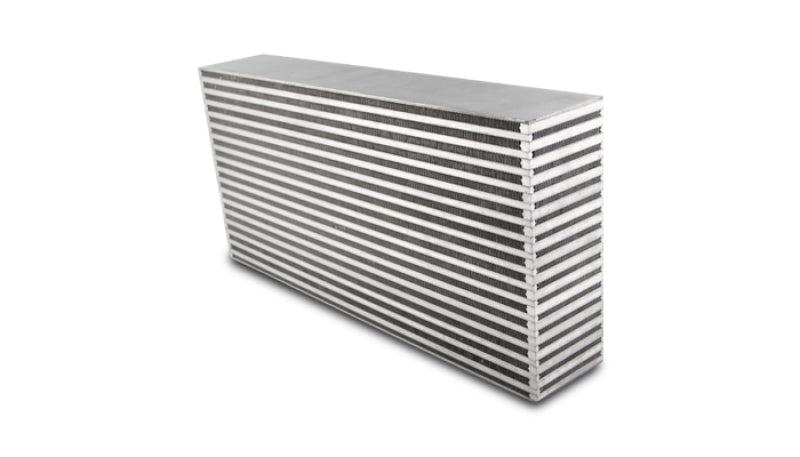

Vibrant 12963 Horizontal Flow Bar & Plate Intercooler Core 25x11.75x4.5

Vehicle Fitment

• Universal - designed for custom intercooler fabrication on any turbocharged application

Fitment Notes

• Core only; requires end tanks and fabrication for a complete installation

Features

• Bar-and-plate construction for maximum cooling efficiency with minimal pressure drop
• Louvered fin design on the ambient (outside air) path maximizes usable surface area
• Offset fin design on the charge (boost) path minimizes pressure loss
• Delivers cooler, denser intake air than traditional tube-and-fin cores
• Built to handle extreme, high-boost race applications

Specifications

• Material: 6061 aluminum
• Core width: 25"
• Core height: 11.75"
• Core thickness: 4.5"
• Flow orientation: Horizontal

Included Components

• 1x Horizontal flow bar-and-plate intercooler core

Product Description

For builds that need serious cooling capacity, this bar-and-plate intercooler core outperforms traditional tube-and-fin designs by delivering denser, cooler air to the engine at higher boost levels. The louvered ambient-side fins maximize the surface area available for heat dissipation, while the offset charge-side fins keep pressure loss to a minimum as air passes through.

Machined from durable 6061 aluminum and sized at 25" x 11.75" x 4.5", it's built as a bare core for custom fabrication - pair it with matching end tanks and piping to complete a high-boost, race-ready intercooler setup.
