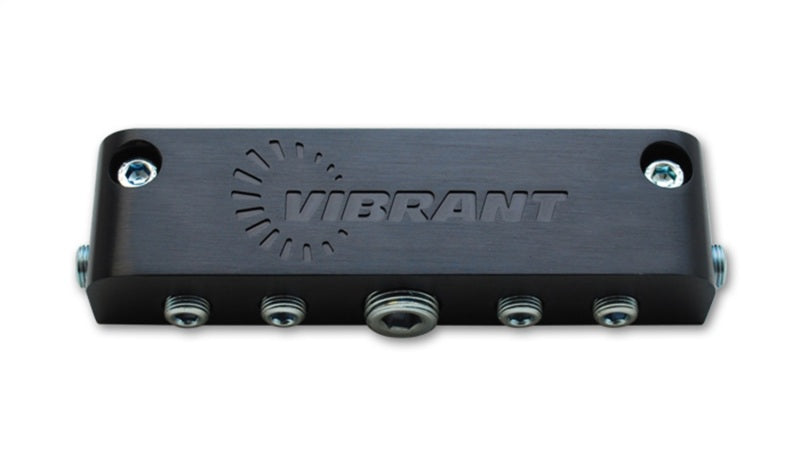

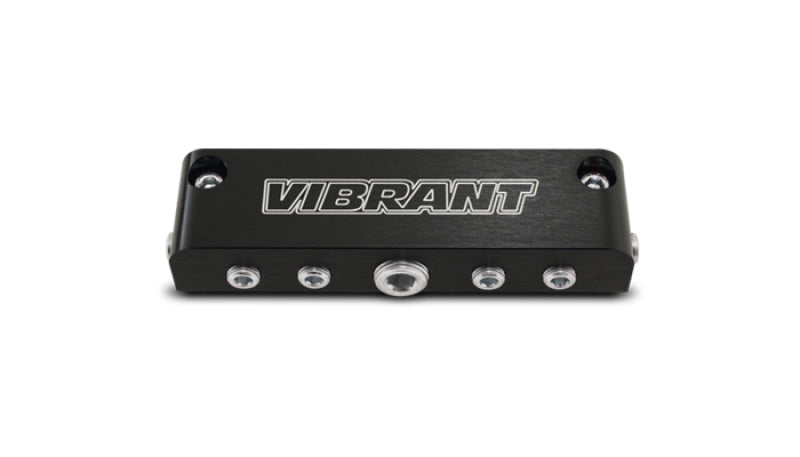

Vibrant 2691 Aluminum Vacuum Manifold 6-Port 1/8 NPT Black Anodized Universal

Vehicle Fitment

• Universal - No vehicle-specific fitment. Direct bolt-on to the firewall of 1992-2000 Honda Civic and 1994-2001 Acura Integra, or mountable on virtually any vehicle using the included mounting hardware.

Fitment Notes

• Center inlet: 3/8 in. NPT female thread. All six outlet ports: 1/8 in. NPT female thread.
• Five port plugs included for sealing unused outlet ports.
• Vibrant One-Touch vacuum fittings are recommended for use with this vacuum manifold.
• Also available in silver anodized finish - see alternate part number for silver variant.

Features

• CNC machined from T6061 billet aluminum for maximum strength, light weight, and corrosion resistance
• Black anodized finish provides additional surface protection and a clean, professional appearance
• Distributes vacuum from a single source to up to six outlets simultaneously for consistent vacuum across all connected accessories
• Central 3/8 in. NPT inlet accepts a single vacuum source from the intake manifold or vacuum line
• Six 1/8 in. NPT female outlet ports support boost gauges, boost controllers, blow-off valves, fuel pressure regulators, and other vacuum accessories
• Includes five port plugs to seal any unused outlets and prevent vacuum leaks
• Includes all necessary mounting hardware for simplified installation
• Compact design - 5.5 in. x 1.5 in. x 1 in. - fits in tight underhood spaces

Specifications

• Part Number: 2691
• Material: T6061 Billet Aluminum
• Finish: Black Anodized
• Inlet: 1x 3/8 in. NPT Female (center port)
• Outlets: 6x 1/8 in. NPT Female
• Overall Dimensions: 5.5 in. L x 1.5 in. W x 1.0 in. H
• UPC: 690092122218
• Quantity: Sold Individually
• Warranty: 1 Year Limited Warranty

Included Components

• 1x Vibrant 2691 Billet Aluminum Vacuum Manifold, Black Anodized, 3/8 in. NPT Inlet, 6x 1/8 in. NPT Outlets
• 5x Port Plugs (for unused outlets)
• Mounting Hardware

Product Description

The Vibrant 2691 is a CNC machined T6061 billet aluminum vacuum manifold that distributes consistent vacuum from a single source to up to six outlet ports simultaneously. The central 3/8 in. NPT female inlet accepts a vacuum line from the intake manifold or any single vacuum source, while the six 1/8 in. NPT female outlet ports supply boost gauges, boost controllers, blow-off valves, fuel pressure regulators, map sensors, and other vacuum-dependent accessories from one consolidated block - eliminating the tee fittings and inconsistent routing common in improvised vacuum plumbing.

The compact 5.5 in. x 1.5 in. x 1 in. black anodized body installs directly to the firewall of 1992-2000 Honda Civic and 1994-2001 Acura Integra models using the included mounting hardware, or can be mounted universally on any vehicle. Five port plugs are included for sealing unused outlets to prevent vacuum leaks. Vibrant One-Touch vacuum fittings are recommended for use with the 1/8 in. NPT outlet ports. Sold individually.
