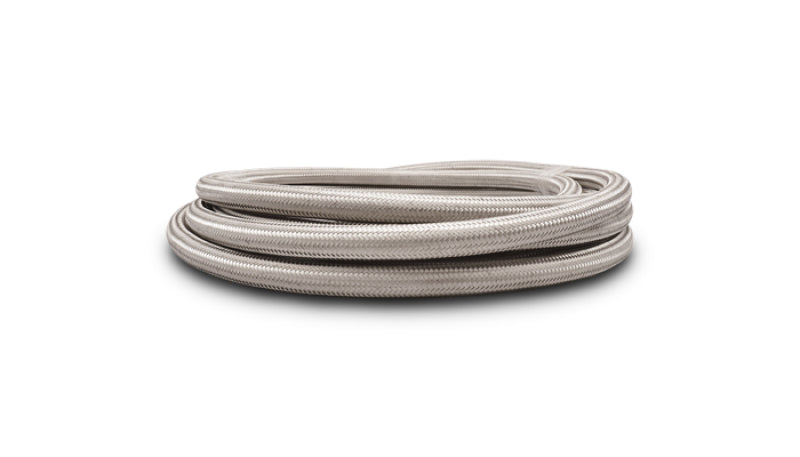

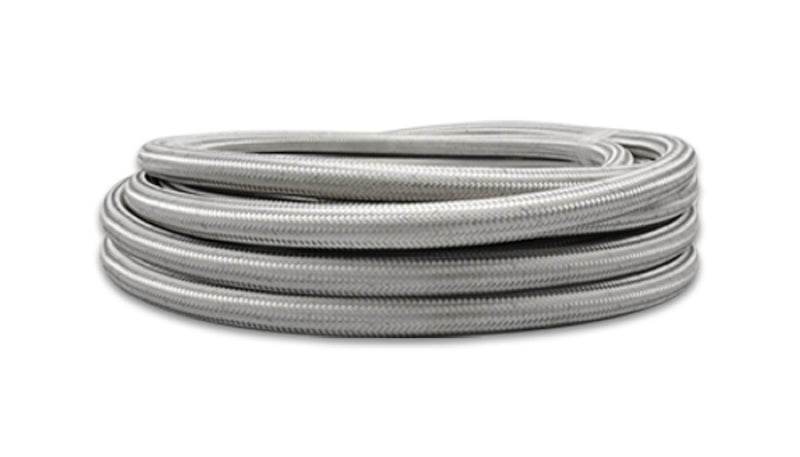

Vibrant 11926 Stainless Braided Flex Hose -6AN 0.34in ID 1,500 PSI 20ft Roll

Vehicle Fitment

• Universal Fit - No vehicle-specific fitment. Compatible with any build requiring -6AN braided hose connections.

Fitment Notes

• Not suitable for use as brake lines or hydraulic pressure lines.
• Not recommended for extended submersion in fuel or oil (not for in-tank applications).
• For extended E85 or methanol use, Vibrant PTFE-lined hose is recommended instead.

Features

• 300-series stainless steel braided outer cover provides superior abrasion resistance and a clean, professional appearance.
• Reinforced synthetic rubber inner liner ensures reliable flexibility and fluid containment under pressure.
• Compatible with oil, water, fuel, methanol, coolant, vacuum service, and E85 applications.
• Handles operating temperatures from -40°F to 300°F (-40°C to 150°C) without degradation.
• Rated for up to 1,500 PSI maximum operating pressure - engineered for motorsport-level demands.
• Reusable Vibrant AN hose ends are recommended for clean, leak-free connections.
• Available in multiple AN sizes and lengths for versatile plumbing configurations.
• Built specifically for the demands of the motorsports and performance industry.

Specifications

• AN Size: -6AN
• Hose Inside Diameter (ID): 0.340 in.
• Hose Outside Diameter (OD): 0.550 in.
• Hose Length: 20 ft. (sold as roll)
• Maximum Operating Pressure: 1,500 PSI
• Operating Temperature Range: -40°F to 300°F (-40°C to 150°C)
• Outer Material: 300-Series Braided Stainless Steel
• Inner Liner: Reinforced Synthetic Rubber
• PTFE Lined: No
• Fitment Type: Universal

Included Components

• 1x Vibrant 11926 - -6AN Stainless Steel Braided Flex Hose, 20 ft. Roll

Product Description

The Vibrant Performance 11926 is a 20-foot roll of -6AN stainless steel braided flex hose built for high-performance and motorsport applications. The 300-series stainless steel outer braid delivers excellent protection against abrasion and heat, while the reinforced synthetic rubber inner liner maintains structural integrity across a wide range of fluids including oil, fuel, coolant, water, methanol, vacuum lines, and E85. With a maximum operating pressure of 1,500 PSI and a temperature range spanning -40°F to 300°F, this hose is engineered to perform reliably in demanding race and street environments.

At 0.340 in. ID and 0.550 in. OD, the -6AN sizing is a popular choice for oil feed and return lines, fuel delivery, coolant routing, and turbo or supercharger plumbing. The 20-foot roll format gives builders the flexibility to cut custom lengths to suit any layout. Vibrant reusable AN hose ends are recommended for use with this hose to ensure leak-free, professional-grade connections. This hose is not intended for brake or hydraulic pressure lines, nor for prolonged submersion in fuel or oil.
