Vibrant 2743 4-Ply Aramid Silicone 90-Degree Elbow 2.75 in. ID 4 in. Legs Black

Vehicle Fitment

• Universal - No vehicle-specific fitment. Compatible with any intercooler piping, air intake, turbo compressor outlet, or coolant line application requiring a 90-degree silicone elbow with 2.75 in. I.D. tubing.

Fitment Notes

• Inside diameter: 2.75 in. Confirm that your tubing O.D. matches before ordering.
• Not suitable for use with oil or fuel. Suitable for air, boost, water, and coolant service only.
• Leg length: 4.00 in. on each side. Centerline radius: 2.75 in.
• Also available in blue (part number 2743B) and red (part number 2743R).

Features

• 4-ply aramid reinforced silicone construction - hand-wrapped layers of high-temperature aramid fabric between each silicone ply for extreme pressure and temperature resistance
• Meets or exceeds SAE J20 specifications for reinforced silicone hose
• 90-degree elbow provides a clean right-angle direction change for intercooler piping, turbo outlets, and air intake routing
• Maximum operating pressure of 43 psi suitable for intercooler and air intake plumbing at 2.75 in. I.D.
• 4.00 in. leg lengths on both inlet and outlet provide ample overlap for secure T-bolt or worm gear clamp installation
• Resistant to UV, ozone, and swelling under sustained high-pressure and high-temperature conditions
• Operating temperature range of -65°F to 350°F (-54°C to 177°C)
• Backed by Vibrant's 1-year limited warranty

Specifications

• Part Number: 2743
• Material: 4-Ply Aramid Reinforced Silicone
• Coupler Type: 90-Degree Elbow
• Inside Diameter (I.D.): 2.75 in.
• Centerline Radius (CLR): 2.75 in.
• Leg Length: 4.00 in. (each side)
• Wall Thickness: 0.20 in.
• Maximum Operating Pressure: 43 psi
• Operating Temperature Range: -65°F to 350°F (-54°C to 177°C)
• Compatible Service: Air, Boost, Water, Coolant only - NOT suitable for oil or fuel
• Color: Black
• Also Available In: Blue (2743B), Red (2743R)
• Quantity: Sold Individually
• Warranty: 1 Year Limited Warranty

Included Components

• 1x Vibrant 2743 4-Ply Aramid Reinforced Silicone 90-Degree Elbow, 2.75 in. I.D., 4.00 in. Legs, Black

Product Description

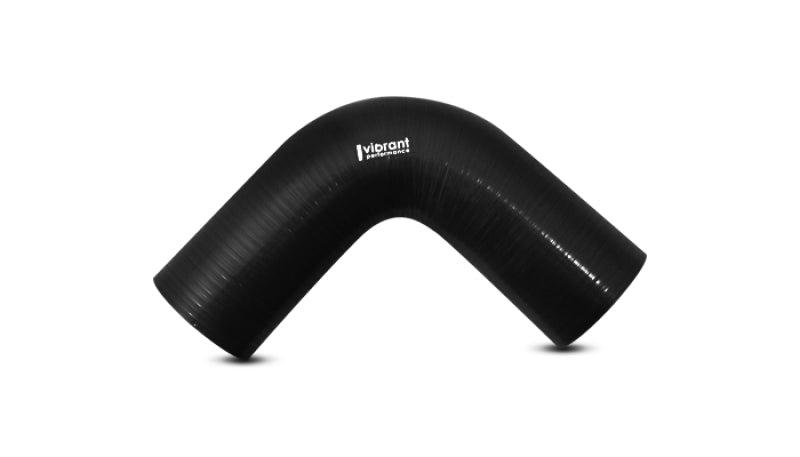

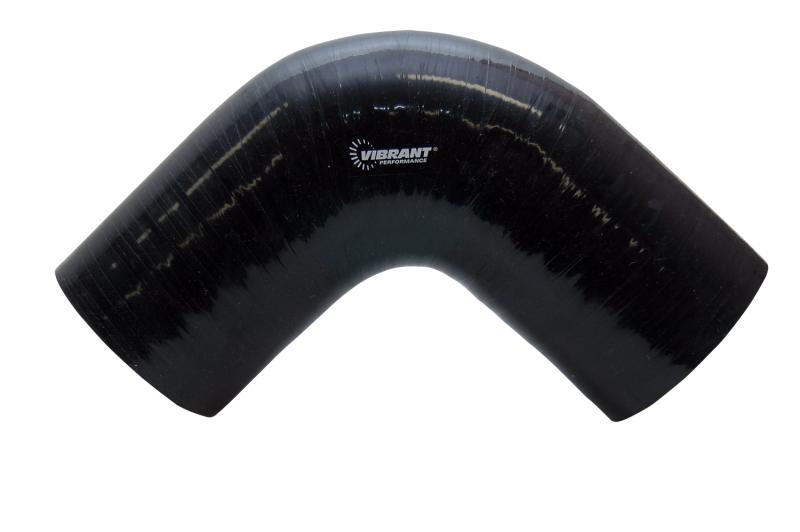

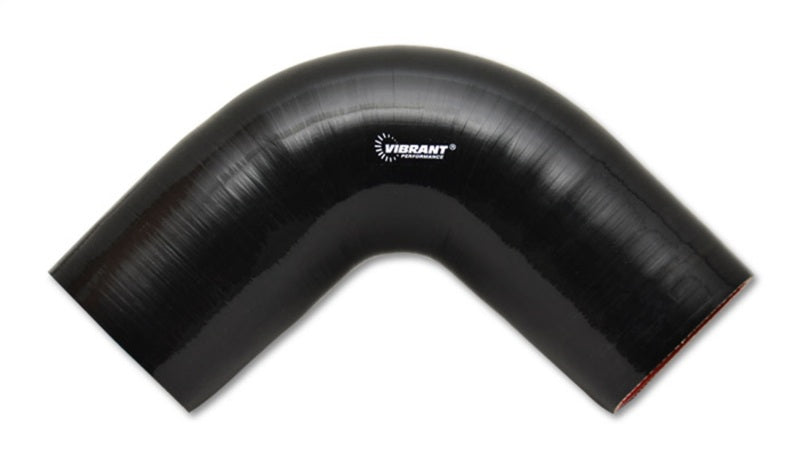

The Vibrant 2743 is a 4-ply aramid reinforced silicone 90-degree elbow with a 2.75 in. inside diameter, 2.75 in. centerline radius, and 4.00 in. leg lengths on each side. The hand-wrapped aramid reinforcement between each ply of silicone provides the structural integrity needed to withstand sustained high-boost and high-temperature conditions without swelling or bursting - rated to 43 psi maximum operating pressure at this diameter. The 90-degree configuration delivers a clean right-angle direction change for turbo compressor outlet connections, intercooler end tank piping, and air intake systems where a precise 90-degree turn at 2.75 in. is required.

The 4.00 in. leg lengths on both ends provide ample overlap for secure T-bolt or worm gear clamp installation and accommodate minor angular misalignment between joined tubing sections. All Vibrant Performance aramid reinforced silicone couplers meet or exceed SAE J20 specifications and are UV and ozone resistant. Operating temperature range of -65°F to 350°F suits both street and track applications. Not suitable for oil or fuel service - for air, boost, water, and coolant applications only. Available in blue (2743B) and red (2743R) as well. Sold individually.
