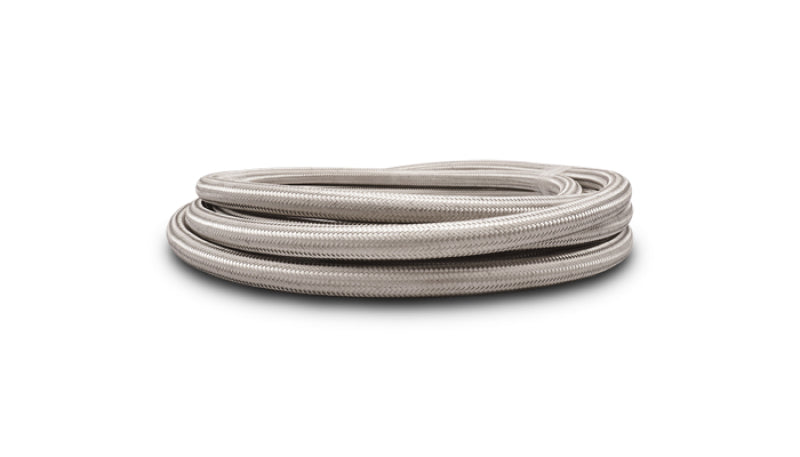

Vibrant 11945 -20AN Stainless Steel Braided Flex Hose 5ft 1.12in ID

Vehicle Fitment

• Universal performance application - no vehicle-specific fitment assigned

Fitment Notes

• Universal fabrication component; vehicle year, make, model, engine, trim, and drivetrain do not determine compatibility.
• Designed for use with compatible -20AN hose ends and fittings.
• Not intended for brake lines or other hydraulic pressure-line applications.
• Not recommended for extended submersion in fuel or oil or for in-tank applications.
• Verify hose-end compatibility, routing, bend radius, clearance, and system pressure requirements before installation.

Features

• -20AN stainless steel braided flexible race hose.
• 5-foot roll for custom fluid-system fabrication.
• 1.12-inch nominal inside diameter.

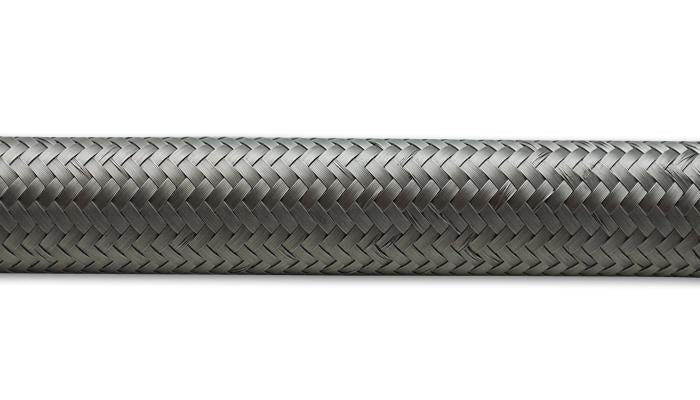

• 300-series stainless steel braided outer construction.
• Reinforced synthetic rubber inner liner.
• Stainless steel braid provides abrasion and corrosion resistance.
• Suitable for oil, water, fuel, methanol, coolant, vacuum, and E85 applications where system requirements permit.
• Designed for use with compatible reusable Vibrant hose ends.
• Maximum recommended operating temperature of 300°F.
• Minimum recommended operating temperature of -40°F.
• Maximum recommended operating pressure of 500 psi.
• Flexible construction allows custom routing in performance fluid systems.

Specifications

• Brand: Vibrant Performance
• Part Number: 11945
• Product Type: Stainless Steel Braided Flex Hose
• AN Size: -20AN
• Length: 5 ft
• Inside Diameter: 1.120 in
• Outside Diameter: Approximately 1.400 in
• Inner Liner: Reinforced Synthetic Rubber
• Outer Braid: 300-Series Stainless Steel
• PTFE Lined: No
• Maximum Recommended Operating Pressure: 500 psi
• Burst Pressure: 2,000 psi
• Operating Temperature: -40°F to 300°F
• Application: Universal Performance/Fabrication
• Position: Fluid-routing system

Included Components

• 1x 5-Foot Stainless Steel Braided Flex Hose Roll

Product Description

The Vibrant Performance 11945 is a 5-foot roll of -20AN stainless steel braided flexible race hose designed for high-performance fluid-system fabrication. It features a reinforced synthetic rubber inner liner surrounded by a 300-series stainless steel braid, providing flexibility along with resistance to abrasion and corrosion.

With a 1.12-inch inside diameter and a recommended operating pressure of up to 500 psi, the 11945 is suited to compatible oil, water, fuel, methanol, coolant, vacuum, and E85 routing applications. Its -40°F to 300°F recommended operating-temperature range makes it suitable for demanding automotive and motorsports environments. The hose is not intended for brake or other hydraulic pressure-line applications and should not be used for extended fuel or oil submersion. Compatible hose ends, routing, pressure, temperature, and fluid requirements should be verified before installation.
