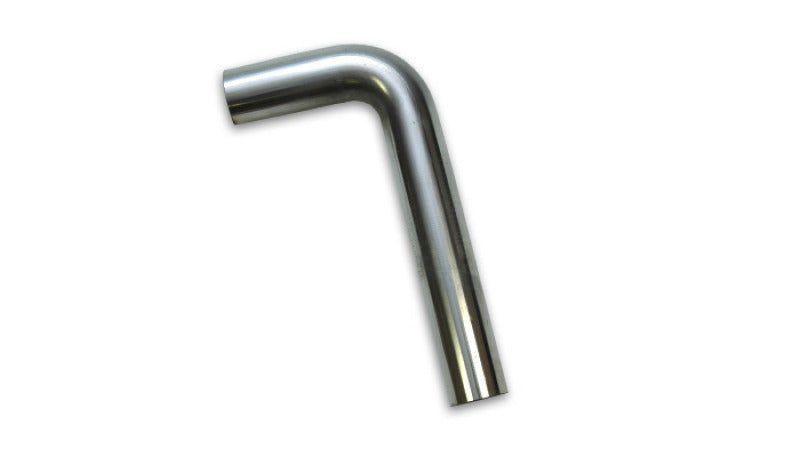

Vibrant 13040 T304 SS 90 Degree Mandrel Bend Exhaust Tubing 2.5 in OD Universal

Vehicle Fitment

• Universal Fit - Compatible with all makes and models requiring 2.500 in. O.D. custom exhaust, header, downpipe, or intercooler piping fabrication

Fitment Notes

• Weld-in fitment - requires cutting and welding to suit specific application
• Sold individually - one bend per package
• Compatible with Vibrant's full range of T304 stainless mandrel bend tubing for complete custom system builds

Features

• Mandrel bent construction maintains full internal diameter throughout the curve for maximum exhaust flow
• Constructed from T304 stainless steel - non-magnetic alloy with high chromium and nickel content for superior heat and corrosion resistance
• Consistent wall thickness and dimensional accuracy requires minimal preparation before welding
• 16-gauge (0.065 in.) wall thickness delivers a strong, reliable weld in custom fabrication builds
• Ideal for custom exhaust systems, headers, downpipes, and intercooler charge piping
• Backed by Vibrant Performance's 5-Year Limited Warranty

Specifications

• Part Number: 13040
• Tube O.D.: 2.500 in. (63.5mm)
• Bend Angle: 90 Degrees
• Centerline Radius: 3.500 in.
• Leg Length A: 4.000 in.
• Leg Length B: 12.000 in.
• Wall Thickness: 0.065 in. (1.65mm) / 16-Gauge
• Material: T304 Stainless Steel
• Finish: Raw / Unpolished
• Fitment: Universal
• UPC: 690092123802
• Warranty: 5-Year Limited

Included Components

• 1x Vibrant 13040 90 Degree Mandrel Bend (2.500 in. O.D.)

Product Description

The Vibrant Performance 13040 is a 90-degree mandrel bent tube section crafted from T304 stainless steel at the widely used 2.500 in. O.D. diameter. With a 3.500 in. centerline radius and 16-gauge (0.065 in.) wall thickness, this bend maintains consistent internal diameter through the curve - eliminating the flow restriction and turbulence associated with crush-bent tubing. The result is improved exhaust scavenging, reduced backpressure, and better boost efficiency in forced induction applications.

T304 stainless steel provides exceptional resistance to heat, corrosion, and acidic exhaust gases, making the 13040 suitable for both street and race fabrication builds. The consistent dimensions and raw finish require minimal preparation before welding and integrate seamlessly with Vibrant's complete range of mandrel bend tubing. Sold individually and backed by a 5-Year Limited Warranty.
