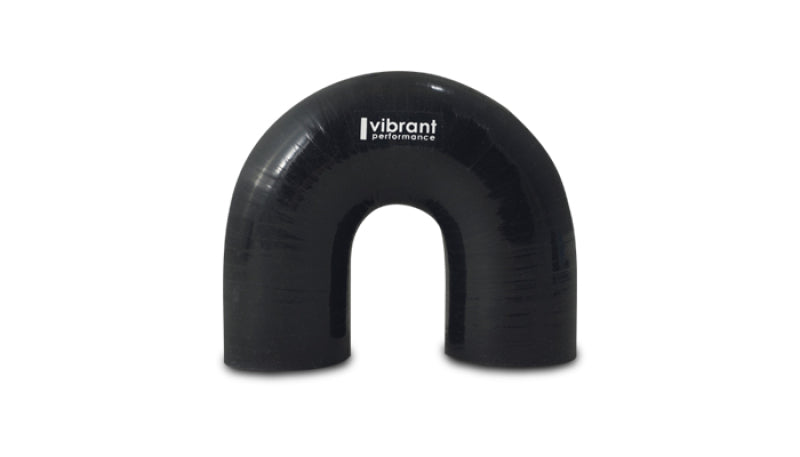

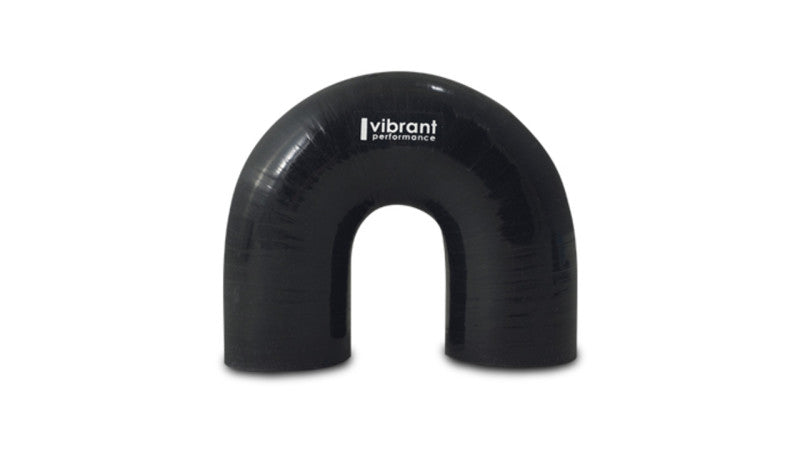

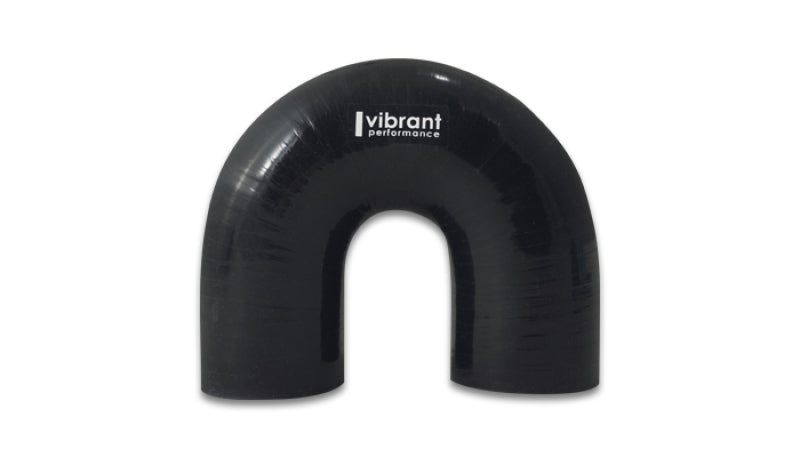

Vibrant 19671 4-Ply Aramid Silicone 180-Degree Elbow 3.5 in. ID 4.75 in. Black

Vehicle Fitment

• Universal - No vehicle-specific fitment. Compatible with any intercooler piping, air intake, coolant, or water line application requiring a 180-degree silicone elbow connector with 3.5 in. I.D. tubing.

Fitment Notes

• Inside diameter is 3.50 in. Confirm that your tubing O.D. matches before ordering.
• Not suitable for use with oil or fuel. Suitable for air, water, and coolant service only.
• Leg length from tangent: 4.75 in. on each side.
• Available in black only. Not available in other colors.

Features

• 4-ply aramid reinforced silicone construction - hand-wrapped layers of high-temperature aramid fabric between each silicone ply for extreme pressure and temperature resistance
• Meets or exceeds SAE J20 specifications for reinforced silicone hose
• 180-degree configuration enables U-turn routing for large-bore intercooler piping, air intake ducting, and custom coolant circuits
• Resistant to UV, ozone, and swelling under sustained high-pressure and high-temperature conditions
• Maximum operating pressure of 25 psi - appropriate for large-bore intercooler and intake piping at this diameter
• Operating temperature range of -75°F to 392°F (-60°C to 200°C)
• 4.75 in. leg lengths provide ample overlap for secure clamping on each side
• Backed by Vibrant's 1-year limited warranty

Specifications

• Part Number: 19671
• Material: 4-Ply Aramid Reinforced Silicone
• Bend Angle: 180 Degrees
• Inside Diameter (I.D.): 3.50 in.
• Leg Length: 4.75 in.
• Maximum Operating Pressure: 25 psi
• Operating Temperature Range: -75°F to 392°F (-60°C to 200°C)
• Compatible Service: Air, Water, Coolant only - NOT suitable for oil or fuel
• Color: Black
• Quantity: Sold Individually
• Warranty: 1 Year Limited Warranty

Included Components

• 1x Vibrant 19671 4-Ply Aramid Reinforced Silicone 180-Degree Elbow Connector, 3.5 in. I.D., 4.75 in. Legs, Black

Product Description

The Vibrant 19671 is a 4-ply aramid reinforced silicone 180-degree elbow connector with a 3.5 in. inside diameter and 4.75 in. leg lengths. The hand-wrapped aramid reinforcement layers between each ply of silicone provide the structural integrity needed to withstand sustained high-temperature conditions in large-bore intercooler piping, air intake systems, and coolant routing - without the swelling or bursting common in lower-quality silicone couplers. At 3.5 in. I.D., this elbow is well suited for high-flow intercooler outlet pipes, large-diameter intake ducting, and turbo inlet connections where compact 180-degree U-turn routing is required.

All Vibrant Performance aramid reinforced silicone couplers meet or exceed SAE J20 specifications and are UV and ozone resistant for long-term durability in underhood environments. The operating temperature range of -75°F to 392°F accommodates the full thermal demands of both naturally aspirated and forced induction applications. Not suitable for oil or fuel service - for air, water, and coolant applications only. Sold individually.
