Vibrant Performance 11943 -16 AN SS Braided Flex Hose 5 Foot Roll 0.89" 1000PSI

Vehicle Fitment

• Universal - compatible with any -16 AN fluid system requiring stainless steel braided flex hose for oil, water, fuel, coolant, or vacuum lines in motorsport, street performance, or custom fabrication applications

Fitment Notes

• Universal fitment - not vehicle-specific; requires -16 AN hose end fittings (sold separately) at each connection point
• Sold as a 5-foot roll - for longer runs, the 10-foot variant (PN 11923) and 20-foot variant (PN 11933) are available
• Not suitable for use as brake lines or hydraulic pressure lines
• Not recommended for in-tank or extended fuel submersion - for extended E85 or methanol service, Vibrant's PTFE Flex Hose series is recommended
• E85 and methanol compatible for short-term use; fumes may permeate when fuel is left stagnant for extended periods

Features

• -16 AN sizing (0.89" I.D.) delivers maximum flow capacity for large-diameter oil system returns, high-volume fuel circuits, and coolant distribution lines where minimal flow restriction is critical
• 300 series stainless steel braid outer cover provides excellent abrasion and corrosion resistance with a classic motorsport appearance
• Reinforced CPE synthetic rubber inner liner rated to 1,000 psi operating pressure for reliable performance in high-pressure motorsport fluid systems
• Operating temperature range of -40°F to 300°F covers the full range of typical motorsport and performance fluid system demands
• Compatible with oil, water, fuel, coolant, and vacuum service in a single versatile hose specification

Specifications

• Part Number: 11943
• Product Name: Stainless Steel Braided Flex Hose - -16 AN, 5-Foot Roll
• AN Size: -16 AN
• Hose I.D.: 0.89"
• Braid Material: 300 series stainless steel
• Inner Liner: Reinforced CPE synthetic rubber
• Roll Length: 5 feet
• Operating Pressure: 1,000 psi
• Operating Temperature Range: -40°F to 300°F (-40°C to 150°C)
• Compatible Fluids: Oil, water, fuel, coolant, vacuum (E85 short-term)
• Warranty: 1-year limited
• Quantity: Sold as a 5-foot roll
• Longer Roll Variants: PN 11923 (10ft), PN 11933 (20ft)

Included Components

• 1x Vibrant Performance -16 AN Stainless Steel Braided Flex Hose - 5-foot roll (11943)

Product Description

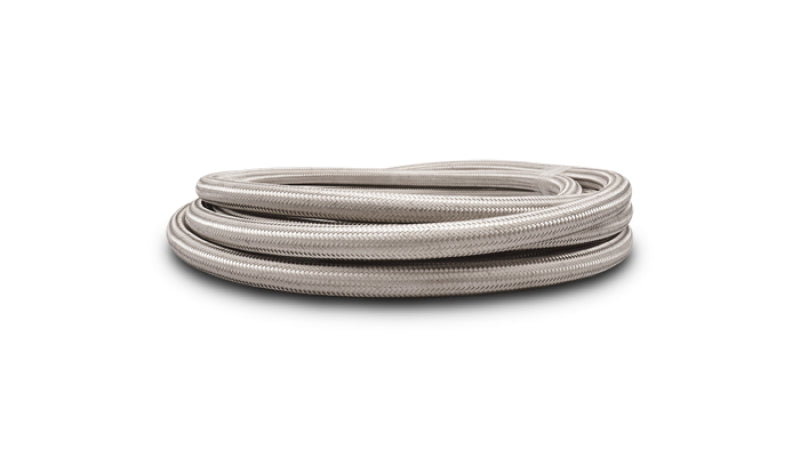

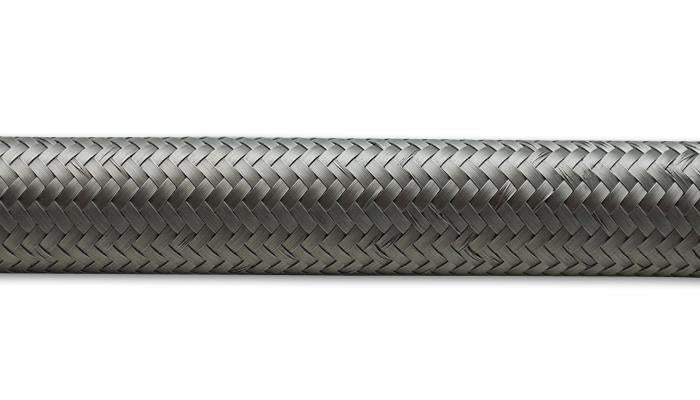

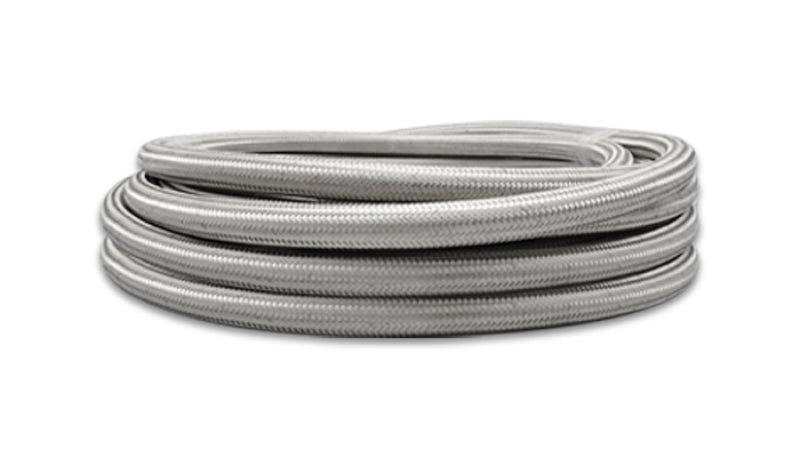

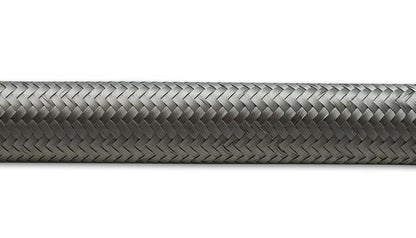

The Vibrant Performance 11943 is a 5-foot roll of -16 AN stainless steel braided flex hose with a 0.89" I.D., designed for the highest-flow-demand fluid circuits in motorsport and performance builds. The -16 AN diameter is commonly used in dry sump oil system scavenge and return lines, large-bore fuel supply circuits, and coolant distribution runs where maximum internal flow area is required to minimize restriction. The 300 series stainless steel braid outer cover resists abrasion and corrosion, while the reinforced CPE inner liner handles up to 1,000 psi of continuous operating pressure across a temperature range of -40°F to 300°F.

E85 compatible for short-term use - for applications where E85 or methanol will sit stagnant for extended periods, Vibrant's PTFE Flex Hose series is the recommended alternative. The 5-foot roll suits short runs or supplemental builds; for longer installations the same hose is available in 10-foot (PN 11923) and 20-foot (PN 11933) rolls. Standard -16 AN hose end fittings (sold separately) are required at each termination point. Backed by Vibrant's 1-year limited warranty.
