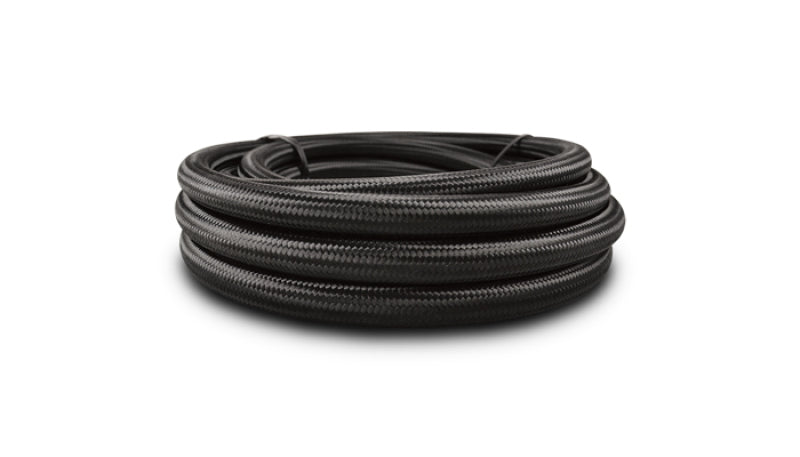

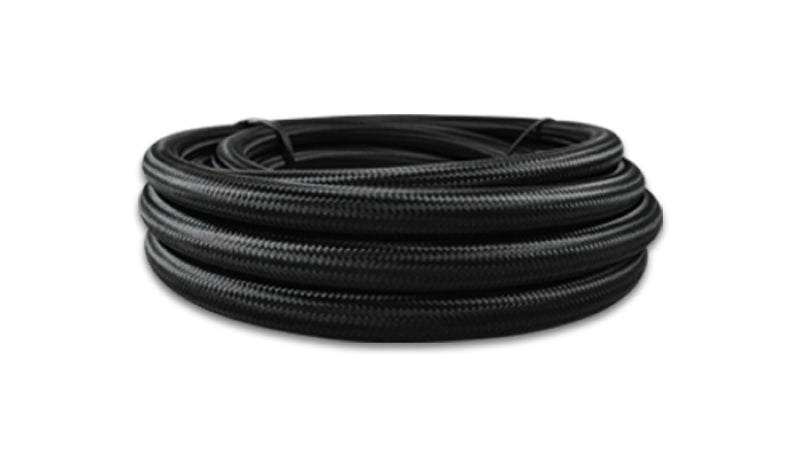

Vibrant 19016 -16AN Black Nylon Braided PTFE Lined Flex Hose 20 Ft Roll Fuel Oil

Vehicle Fitment

• Universal - Compatible with any vehicle or application requiring -16 AN (0.875" I.D.) PTFE lined flex hose for fuel, oil, transmission, clutch, power steering, or coolant lines

Fitment Notes

• Universal part - not vehicle-specific; requires -16 AN fittings for termination
• Suitable for fuel, oil, transmission, clutch, power steering, and coolant service
• Compatible with all commonly used race fuels including E85 and methanol
• Conductive PTFE inner liner prevents electrostatic discharge in fuel applications
• Not recommended for brake line applications at this AN size
• Sold as a 20 ft. roll - cut to desired length

Features

• PTFE inner liner eliminates fuel vapor permeation and resists virtually all automotive fluids
• Black nylon braided outer sleeve provides superior abrasion resistance without scratching painted surfaces
• Lightweight and flexible construction for easy routing in tight chassis or engine bay spaces
• Conductive inner liner prevents electrostatic buildup in fuel delivery applications
• Compatible with all common race fuels, oils, E85, and methanol
• Race-proven design trusted by industry professionals worldwide
• 1-year limited warranty backed by Vibrant Performance

Specifications

• AN Size: -16 AN
• Hose I.D.: 0.875 in.
• Hose O.D.: 1.031 in.
• Bend Radius: 15.750 in.
• Roll Length: 20 ft.
• Outer Braid: Black Nylon
• Inner Liner: Conductive PTFE
• Max Operating Pressure: 1,000 psi
• Burst Pressure: 3,000 psi
• Operating Temp Range: -94°F to 480°F (-70°C to 250°C)
• Color: Black

Included Components

• 1x Vibrant 19016 -16 AN Black Nylon Braided PTFE Lined Flex Hose - 20 ft. Roll

Product Description

The Vibrant Performance 19016 is a -16 AN black nylon braided PTFE lined flex hose sold in a 20 ft. roll, engineered for large-diameter fluid delivery in demanding street and race applications. Its conductive PTFE inner liner eliminates fuel vapor permeation and prevents electrostatic discharge, while the black nylon outer braid delivers excellent abrasion resistance without scratching painted surfaces or surrounding components.

Rated to 1,000 psi operating pressure and capable of handling temperatures from -94°F to 480°F, the 19016 is compatible with virtually all automotive fluids including race fuels, E85, methanol, oil, transmission fluid, clutch fluid, coolant, and power steering fluid. Cut to length as needed and pair with compatible -16 AN PTFE fittings to complete your large-bore fluid delivery system.
